Delock USB Type-C™ Docking Station for Mobile Devices 4K - HDMI / Hub / LAN / PD 3.0 with LED illumination

Reference 87742

Condition: New

More info

This docking station by Delock can be connected to a mobile device with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. One monitor can be operated at the HDMI output. Three built-in USB ports allow the use of peripherals. The gigabit network port enables the connection to the network.

USB Power Delivery (USB PD 3.0) support up to 87 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. In addition it also supplies the USB ports with power. The docking station can also be used without a power supply.

LED design illumination
As soon as the docking station is connected via the USB-C™ plug, an LED at the bottom edge lights up in a unique design.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

System requirements:
• Android 8.0 or above
• Chrome OS 71.0 or above
• Linux Kernel 4.9.4 or above
• Mac OS 10.12 or above
• Windows 8.1/8.1-64/10/10-64
• Windows 10 Mobile
• Device with a free USB Type-C™ port and DisplayPort alternate mode or
with a free Thunderbolt™ 3 port

Specification:

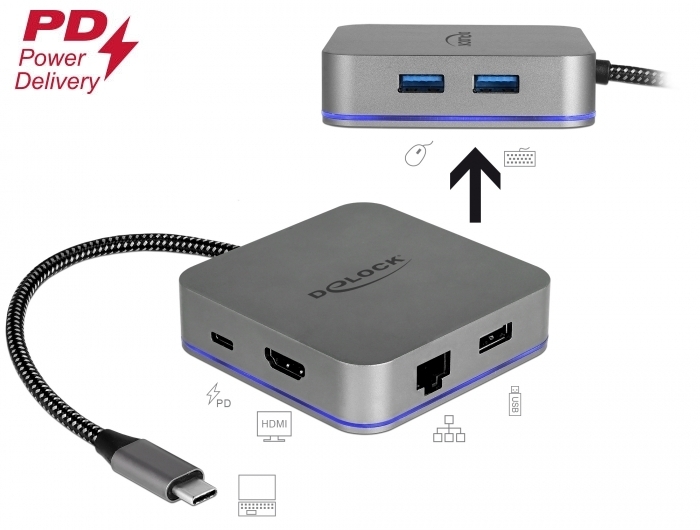

• Connectors:
  1 x USB Type-C™ male
  3 x USB 3.0 Type-A female
  1 x HDMI-A female
  1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
  1 x USB Type-C™ female (power supply)
• Resolution up to 3840 x 2160 @ 30 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Input power: 1 x USB Type-C™ female max. 87 W
• Metal housing
• LED illumination
• Cable length without connectors: ca. 20 cm
• Colour: grey
• Dimensions (LxWxH): ca. 75 x 75 x 19 mm

Package content:
• USB-C™ docking station
• User manual

Data sheet:
http://www.delock.de/produkt/87742/pdf.html?sprache=en
