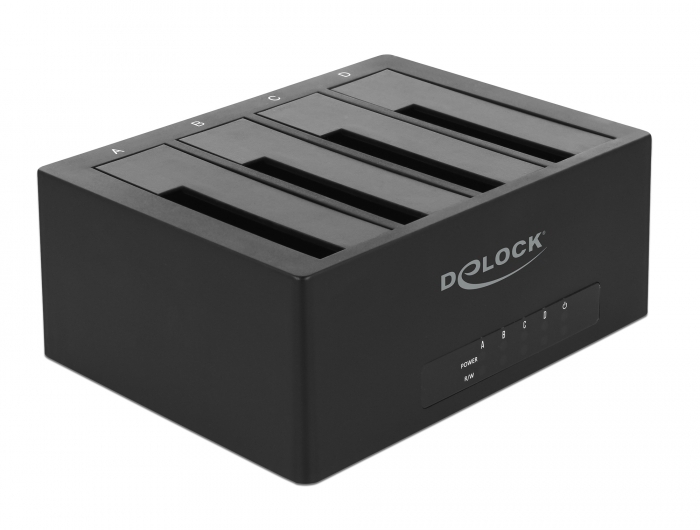

Delock USB Type-C™ Docking Station for 4 x SATA HDD / SSD

Reference 63930

Condition: New

More info

This HDD / SSD Docking Station in by Delock enables an external connection of up to four 2.5″ or 3.5″ SATA HDDs / SSDs through the USB-C™ interface, as well as the simple exchange of the drives by Hot Swap.

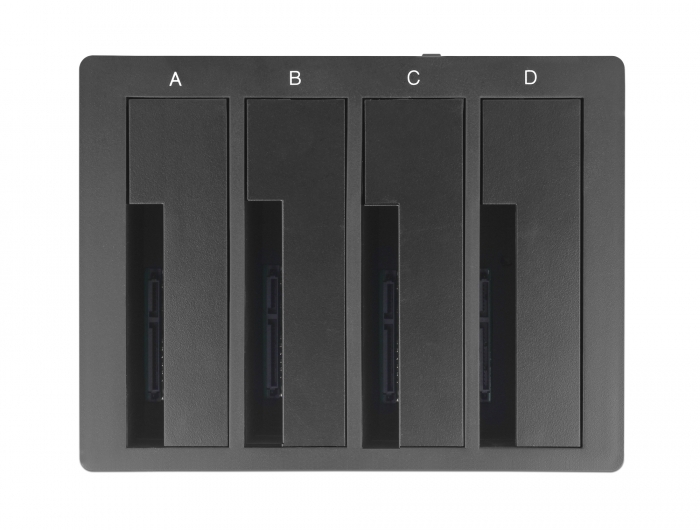

Four bays for HDD / SSD
Up to four HDDs or SSDs can be inserted and accessed simultaneously.

USB Type-C™ connection and separate power supply
Due to the USB Type-C™ port and the included USB-C™ cable, the docking station can easily be connected to laptops, netbooks and ultrabooks. In addition, the power supply included in the delivery content ensures a sufficient power supply for the storage devices used.

System requirements:
• Chrome OS
• Linux Kernel 3.19 or above
• Mac OS 10.14.2 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port

Specification:
• Connectors:
  4 x SATA 6 Gb/s 22 pin receptacle
  1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ female
  1 x DC jack
• Chipset: Genesys Logic GL3523, JMicron JMS578
• Function key:
  1 x On / Off switch

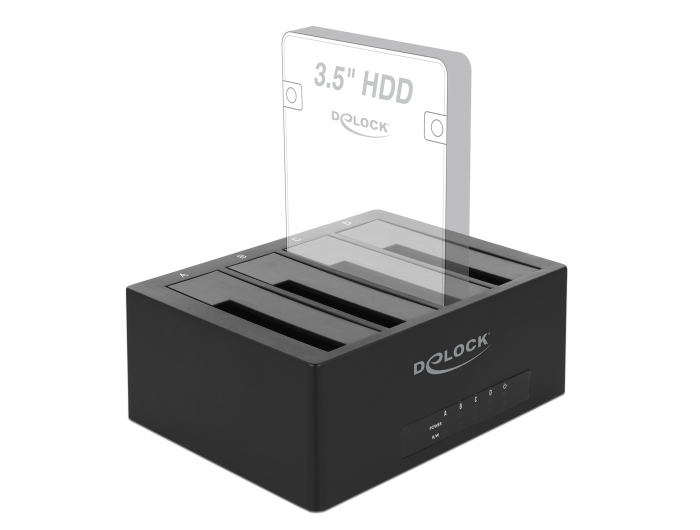

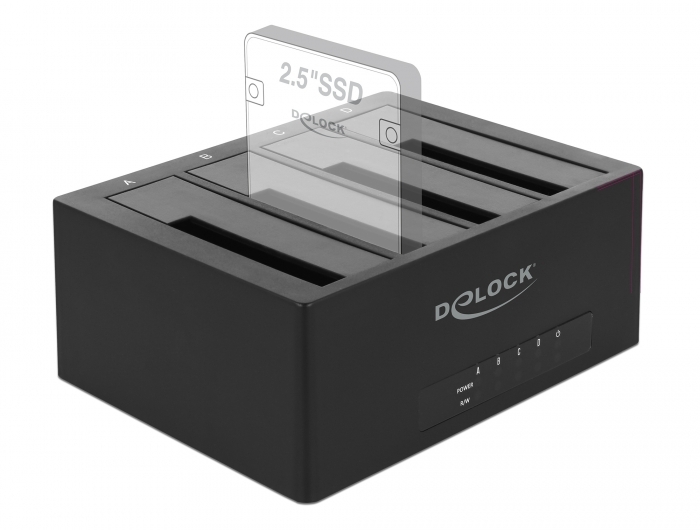

• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs / SSDs up to SATA 6 Gb/s
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps

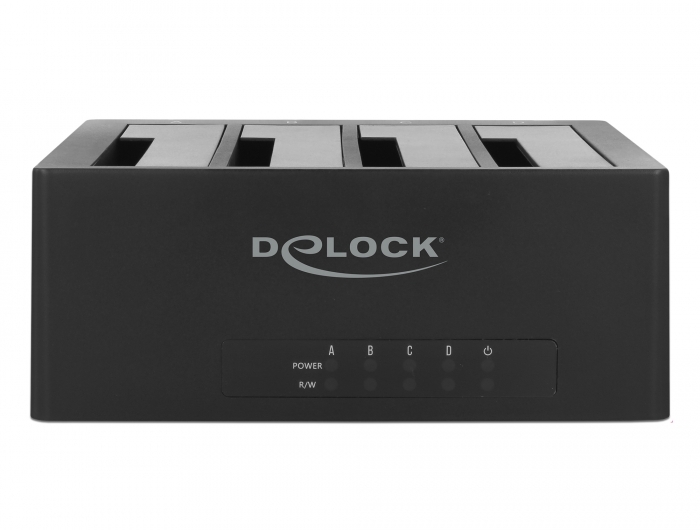

• 10 x LED indicator
• Bootable
• Dimensions (LxWxH): ca. 166 x 127 x 65 mm
• Hot Swap, Plug & Play

Package content:
• Docking station
• 1 x Cable USB-C™ male to USB-C™ male, length ca. 80 cm
• External power supply
• User manual
