Delock USB Type-C™ 3.1 Docking Station HDMI 4K 30 Hz, Gigabit LAN and USB PD function

Reference 87721

Condition: New

More info

This docking station by Delock can be connected to a computer with a USB-C™ Alt-Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A display can be operated at the HDMI output. Two built-in USB Type-A ports allow the use of peripherals, and connections for gigabit network, as well as an SD card reader, complete the features. With a USB-C™ power supply, laptops such as the Macbook or Chromebook can be charged during operation.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile, Chrome OS,
Linux ex Kernel 4.9, Mac ex OS 10.12
• Device with a free USB Type-C™ port and Displayport alternate mode
or with a free Thunderbolt™ 3 port

Specification:

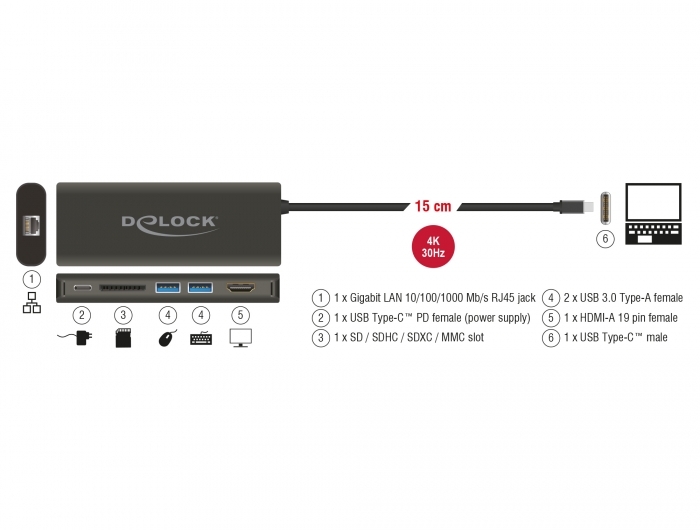

• Connectors:
  1 x Gigabit LAN 10/100/1000 Mb/s RJ45 jack
  1 x HDMI-A 19 pin female
  1 x USB Type-C™ PD female (power supply)
  2 x USB 3.0 Type-A female
  1 x SD / SDHC / SDXC / MMC slot
  1 x USB Type-C™ male
• Chipset: VL813, VL100, GL857L, PS176, RTL8153
• Resolution up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• Output power: 4.5 W per port (5 V / 0.9 A)
• Input power: 1 x USB Type-C™ female max. 60 W (20 V / 3 A)
• Metal housing
• Cable length incl. connector: ca. 15 cm
• Colour: anthracite
• Dimensions (LxWxH): ca. 116 x 46 x 16 mm

Package content:
• USB-C™ docking station
• User manual

Data sheet:
http://www.delock.de/produkt/87721/pdf.html?sprache=en
