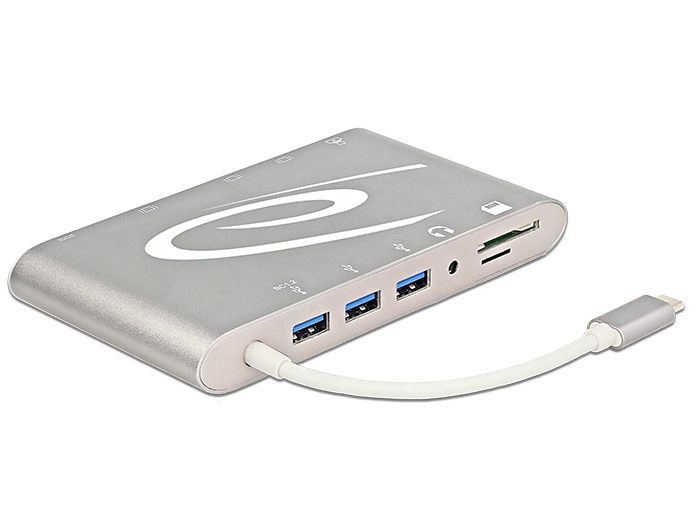

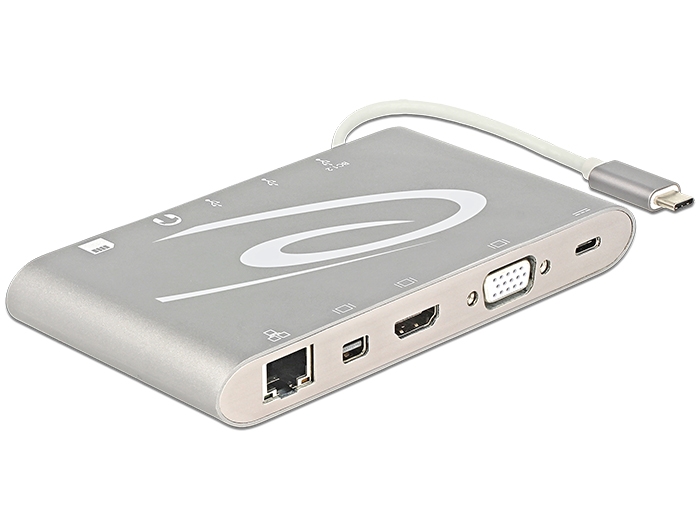

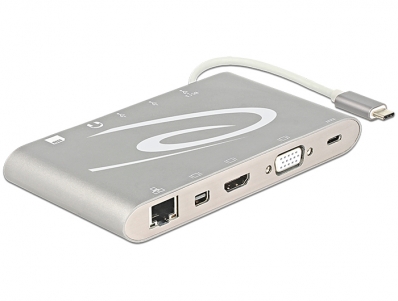

Delock USB Type-C™ 3.1 Docking Station 4K

Reference 87298

Condition: New

More info

This docking station by Delock can be connected to a computer with a USB-C™ Alt-Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the mini Displayport and HDMI outputs, alternatively a single monitor at the VGA output. Three built-in USB Type-A ports allow the use of peripherals, and connections for a headset and gigabit network, as well as an SD / micro SD card reader, complete the features. With a USB-C™ power supply, laptops such as the Macbook or Chromebook can be charged during operation.

System requirements:
• Windows 8.1/8.1-64/10/10-64, Windows 10 Mobile, Android ex 6.0, Mac OS ex 10.9
• Device with a free USB Type-C™ port and Displayport alternate mode
or with a free Thunderbolt™ 3 port

Specification:
• Connectors:
front side:
1 x Gigabit LAN 10/100/1000 Mb/s RJ45 female
1 x mini Displayport 20 pin female
1 x HDMI-A 19 pin female
1 x VGA 15 pin female
1 x USB Type-C™ female (power supply)
back side:
3 x USB 3.0 Type-A female
1 x Headset 3.5 mm 4 pin jack
1 x SD / SDHC / SDXC / MMC slot
1 x Micro SD / SDHC / SDXC slot
1 x USB Type-C™ male
• HDMI and Displayport ports support: extended and mirror,
resolution up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• VGA resolution up to 1920 x 1080 @ 60 Hz
• Transfer of audio and video signals
• Output power: max. 10 W total,
1 x USB Type-A female max. 7.5 W,
2 x USB Type-A female max. 5 W (combined)
• Input power: 1 x USB Type-C™ female max. 60 W
• Metal housing
• Cable length incl. connector: ca. 13 cm
• Colour: silver-grey
• Dimensions (LxWxH): ca. 13.7 x 7.5 x 1.7 cm

Package content:
• USB-C™ docking station
• User manual

Data sheet:
http://www.delock.de/produkt/87298/pdf.html?sprache=en
