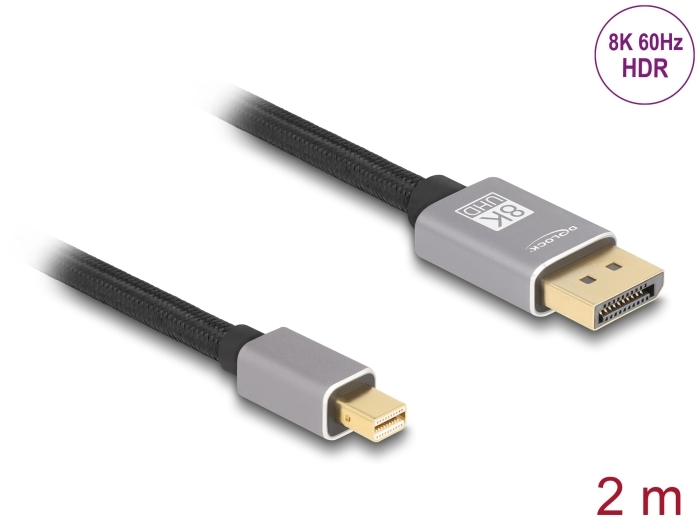

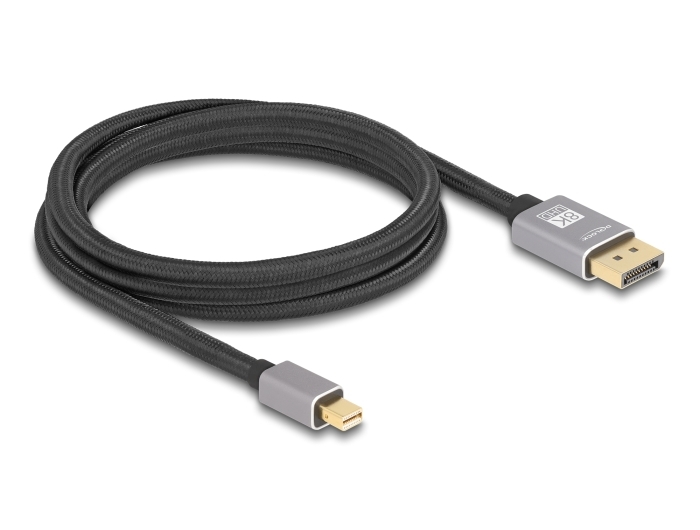

Delock Mini DisplayPort to DisplayPort cable 8K 60 Hz 2 m grey metal without latch

Reference 81092

Condition: New

More info

This DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, projectors or televisions, to a PC or laptop with a mini DisplayPort interface.

8K resolution and HDR support
By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Due to the HDR support colours are realistically displayed with impressive depth, brightness and contrast are optimally reproduced.

Optically, the cable convinces with its elegant metal housings on the plugs and the textile sheathing around the cable jacket.

Specification:
• Connectors:
  1 x mini DisplayPort male
  1 x DisplayPort male
• Connector without latch
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 not connected
• Connector with metal housing
• Cable with textile shielding
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Connector finishing: gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
  Display with DSC support:
  7680 x 4320 @ 60 Hz
  3840 x 2160 @ 240 Hz
  Display without DSC support:
  7680 x 4320 @ 30 Hz
  3840 x 2160 @ 120 Hz
  (depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black / grey
• Length incl. connectors: ca. 2 m

Package content:
• DisplayPort cable

Data sheet:
http://www.delock.de/produkt/81092/pdf.html?sprache=en
