Delock Adapter DisplayPort female to USB Type-C™ male (DP Alt Mode) 4K with PD 85 W

Delock Adapter DisplayPort female to USB Type-C™ male (DP Alt Mode) 4K with PD 85 W

DELOCK

61059

New

This adapter by Delock enables the connection of a USB Type-C™ (DisplayPort Alternate Mode) monitor to a free DisplayPort interface of a PC or laptop.

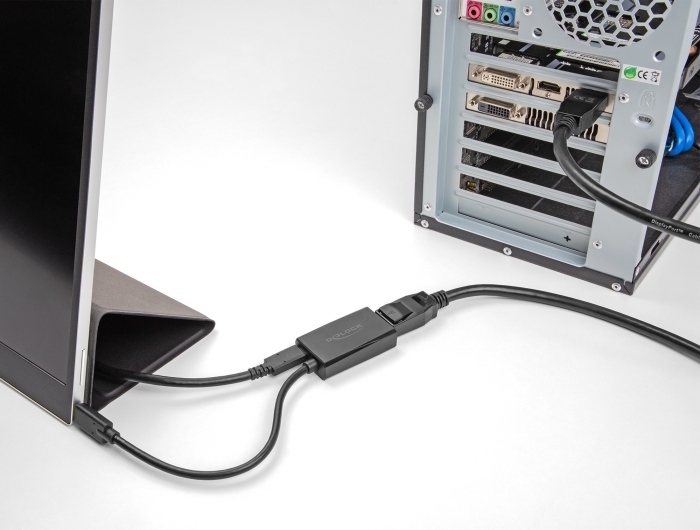

Ideal for portable USB-C™ monitor
The adapter allows the connection of a portable monitor to an DisplayPort interface and power the monitor at the same time. Therefor it is required to connect a power supply to the adapter, which corresponds to the input power of the monitor.


The adapter has a USB Type-C™ Power Delivery port. If a power supply is connected to this port, the device which is connected to the USB-C™ male port will be charged with up to 85 watts during operation.
System requirements:
• A free DisplayPort connector
• Monitor with a free USB Type-C™ (DP Alt Mode) interface
• Power supply
Specification:
• Connectors:
  Input:
  1 x DisplayPort female
  1 x USB Type-C™ female (power supply)
  Output: 1 x USB Type-C™ male
• DisplayPort 1.2 specification
• Signal direction: DisplayPort input > USB Type-C™ output
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports HDCP 1.4 and 2.3
• Colour: black
• Cable length without connectors: ca. 15 cm
Package content:
• Adapter DisplayPort to USB Type-C™
• User manual
Data sheet:
http://www.delock.de/produkt/61059/pdf.html?sprache=en
