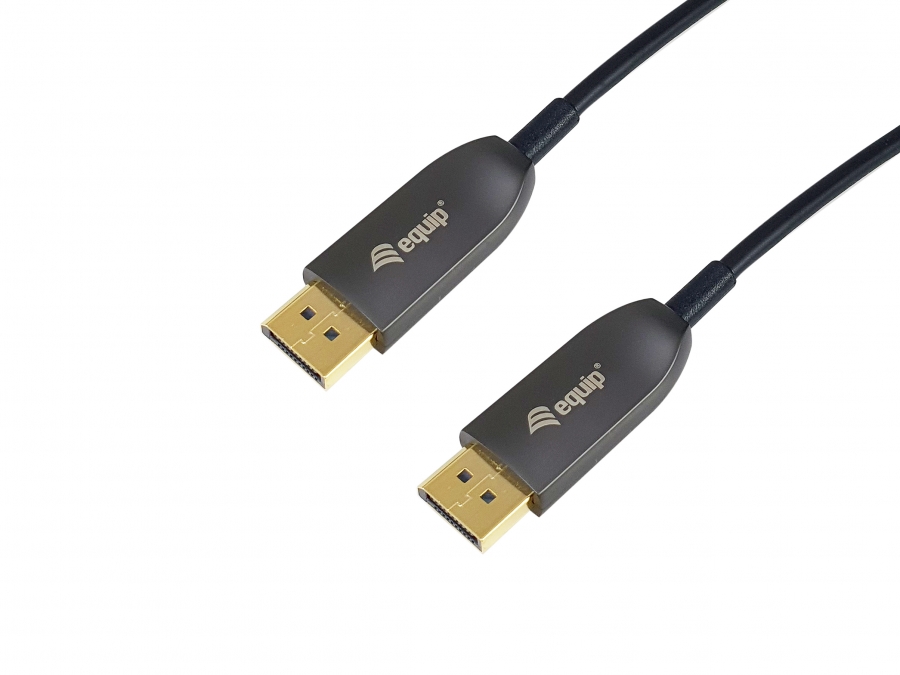

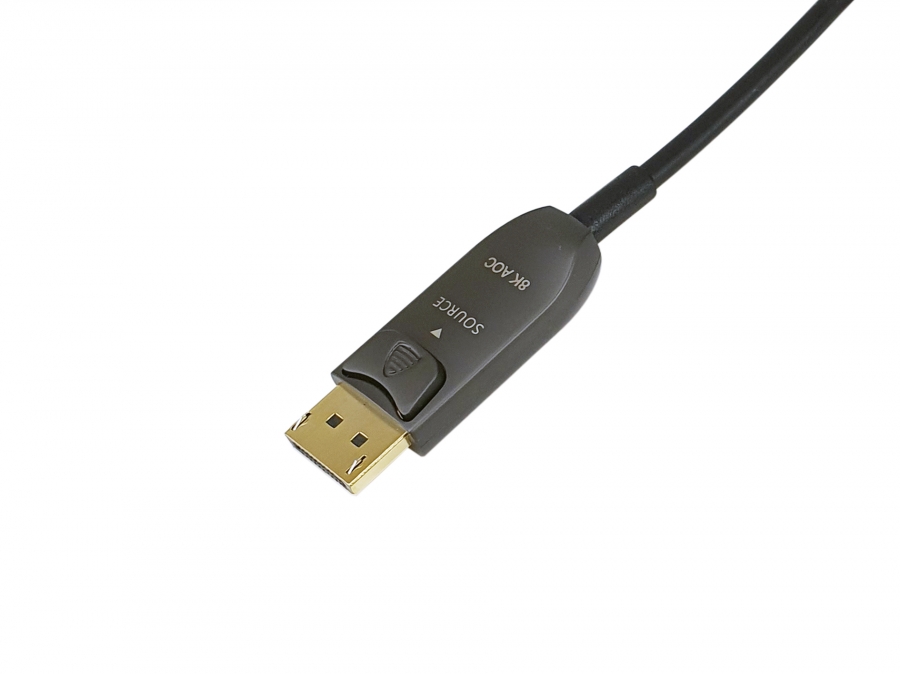

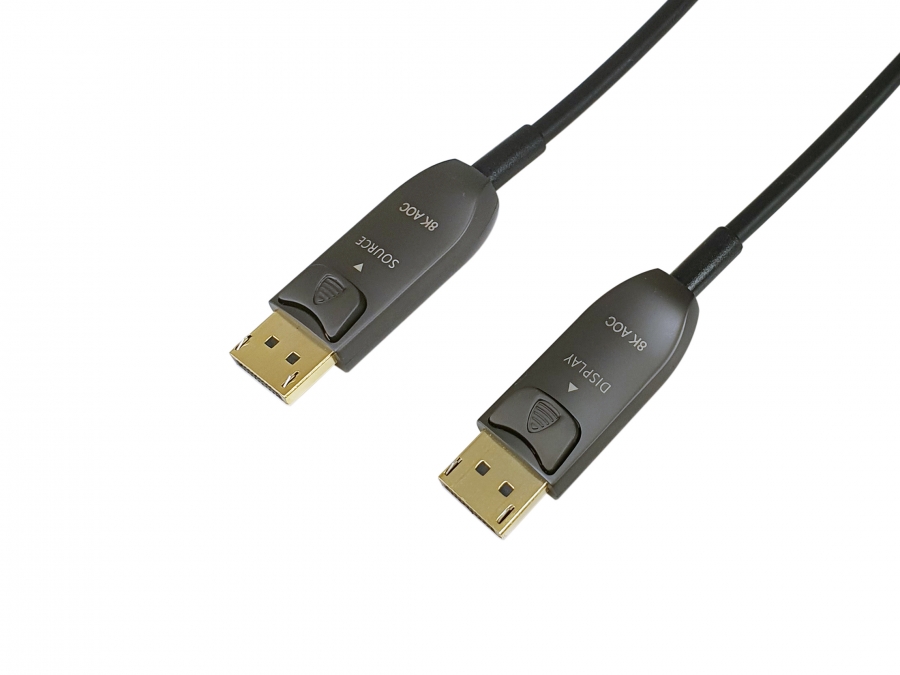

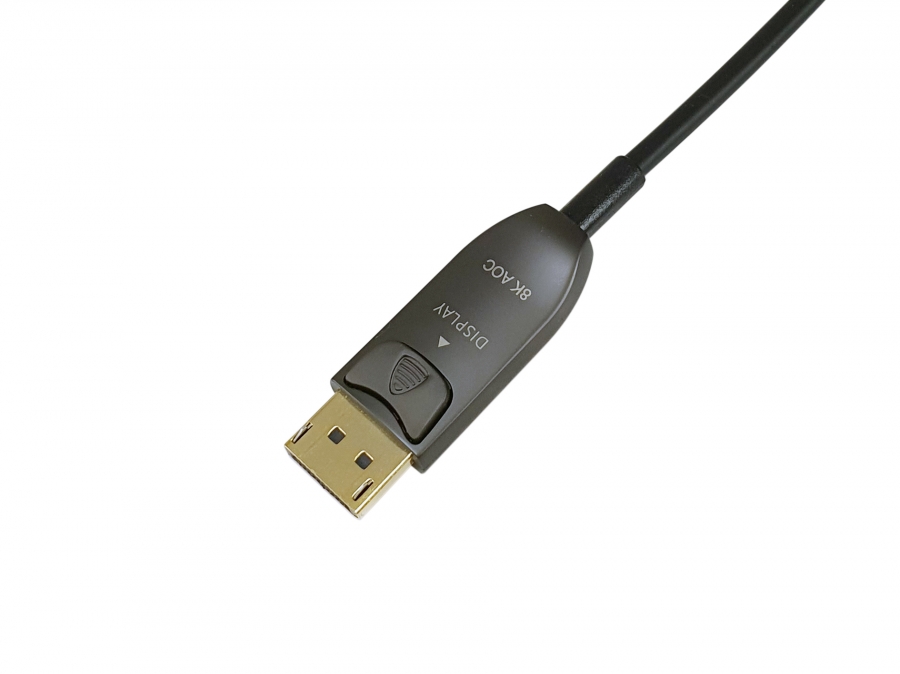

Equip DisplayPort 1.4 St/St 50m 8K/60Hz komp.HDCP schwarz

Reference 119445

Condition: New

More info

The equip 119445 DisplayPort 1.4 Active Optical Cable (AOC) is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on how far they can transmit signals without signal degradation, DisplayPort 1.4 AOC can transmit data up to 100 meters without the need for additional signal boosters or repeaters.

The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K at 60Hz or 4K at 120Hz. DisplayPort 1.4 AOC also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows for even higher resolutions and refresh rates.

The active component of the cable is a microchip embedded in the connector that converts the electrical signals to optical signals, which are then transmitted over the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for use in environments with high levels of electromagnetic interference.

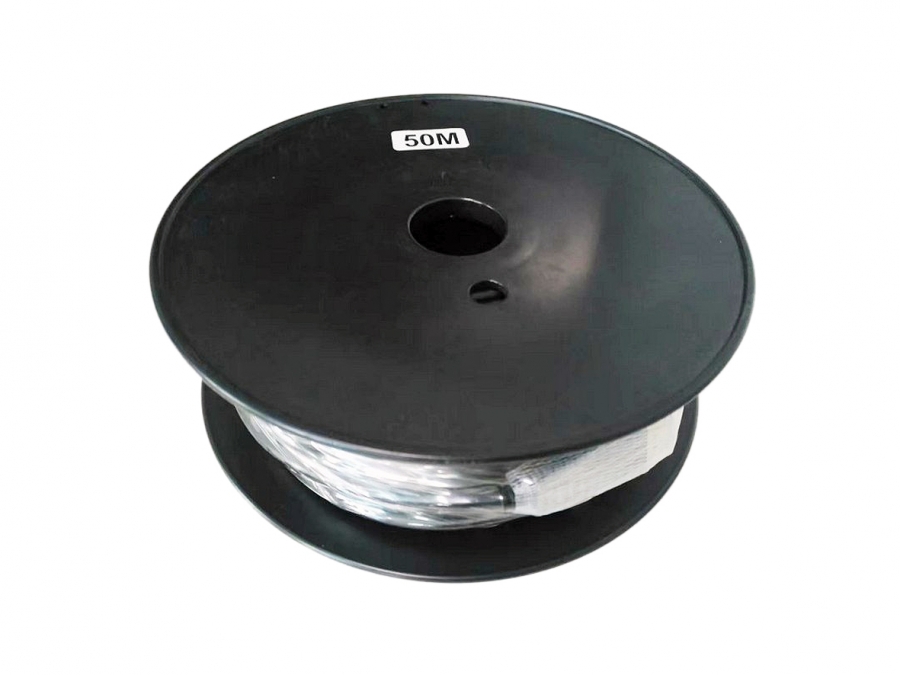

Cable length	50 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	7680 x 4320 pixels
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	1.4
Supported graphics resolutions	3840 x 2160, 2560 x 1440, 5120 x 2880, 7680 x 4320, 1920 x 1200 (WUXGA)
Maximum refresh rate	120 Hz
HDCP	Y
HDCP version	2.2
Display Stream Compression (DSC)	Y
High Dynamic Range (HDR) supported	Y
Bandwidth	32400 MB/s
Multi-Stream Transport (MST)	Y
Country of origin	China
Sustainability compliance	Y
Sustainability certificates	RoHS, CE
Weight	1.68 kg
Quantity per pack	1 pc(s)
Package width	265 mm
Package depth	53 mm
Package height	265 mm
Package type	Box
Package weight	1.88 kg
Master (outer) case width	300 mm
Master (outer) case length	280 mm
Master (outer) case height	490 mm
Master (outer) case gross weight	9.4 kg
Products per master (outer) case	5 pc(s)
