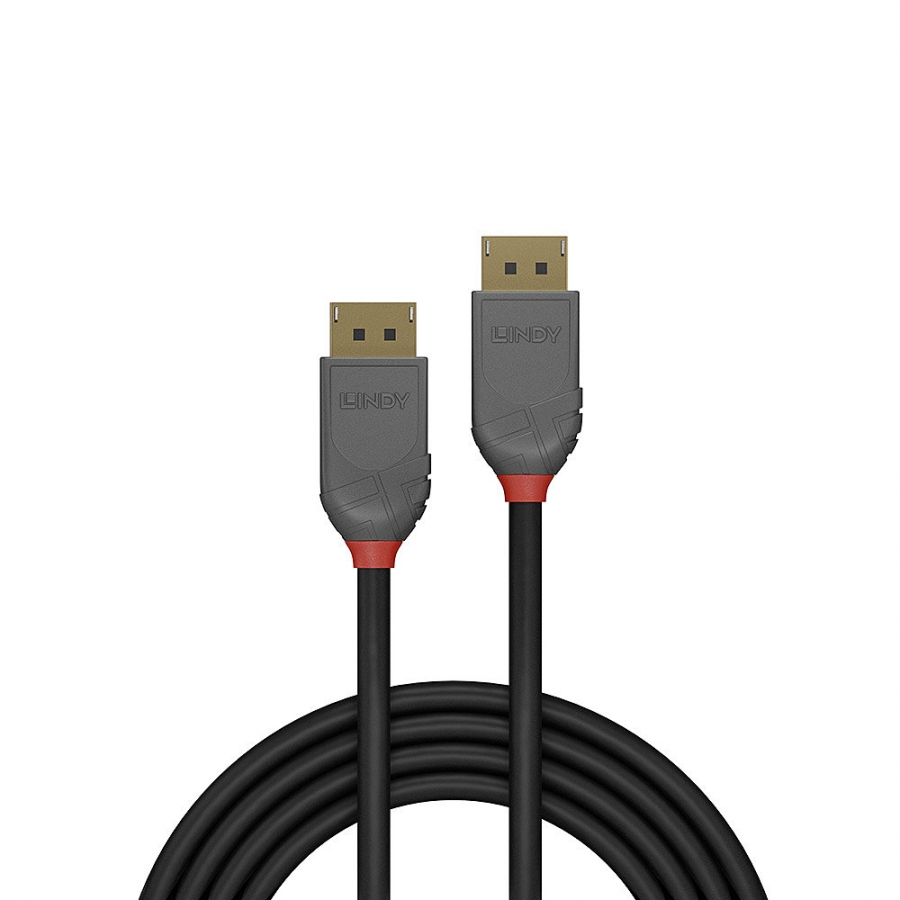

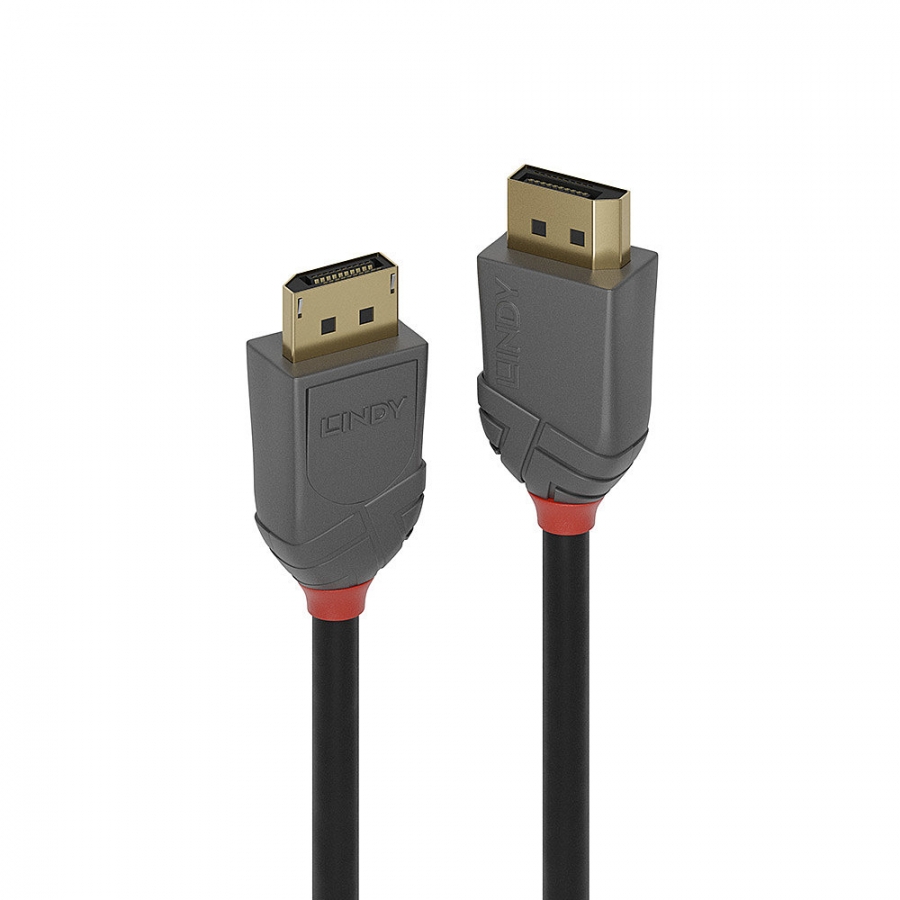

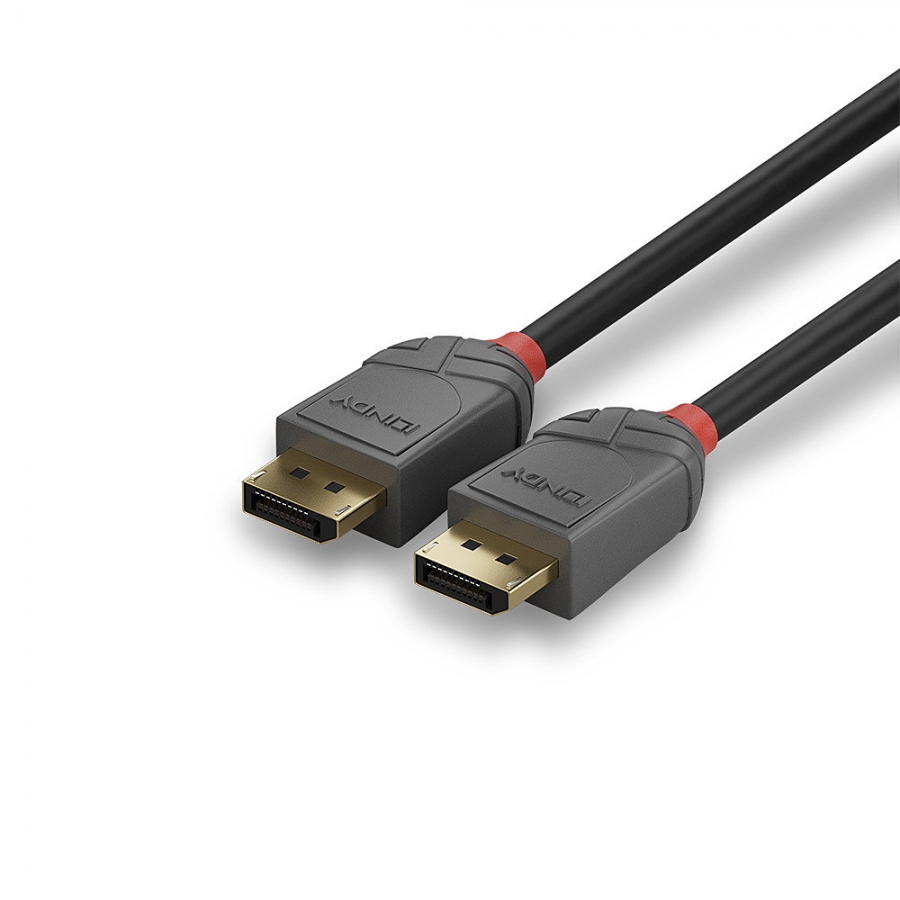

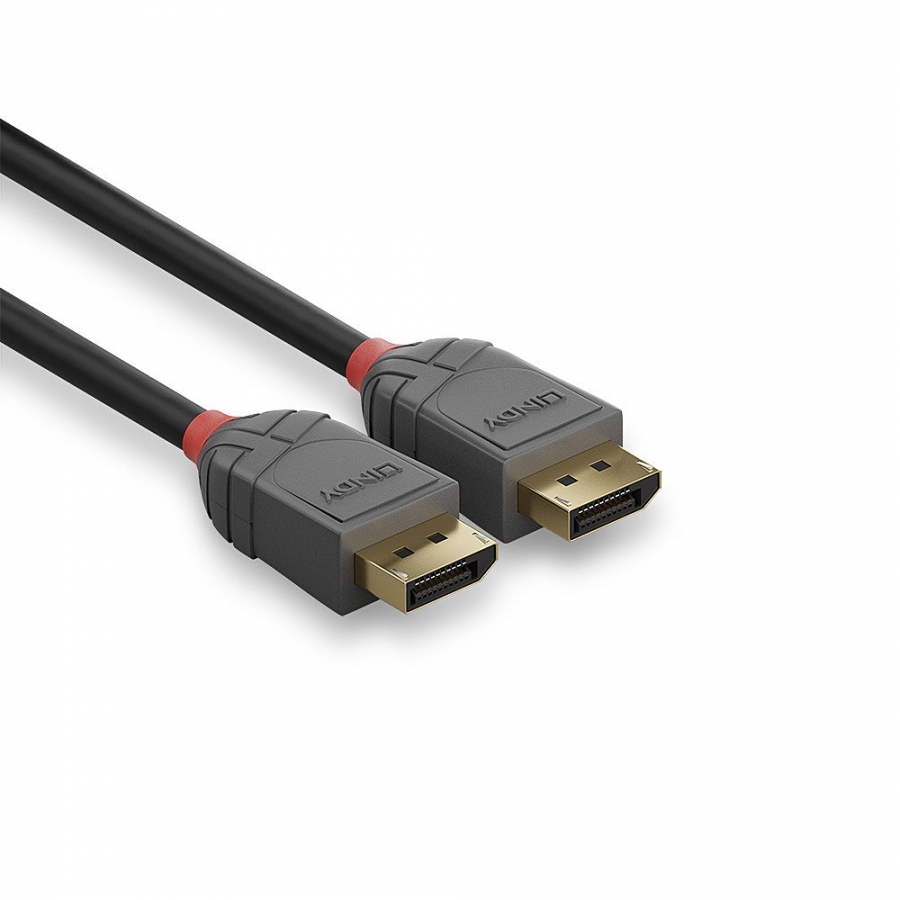

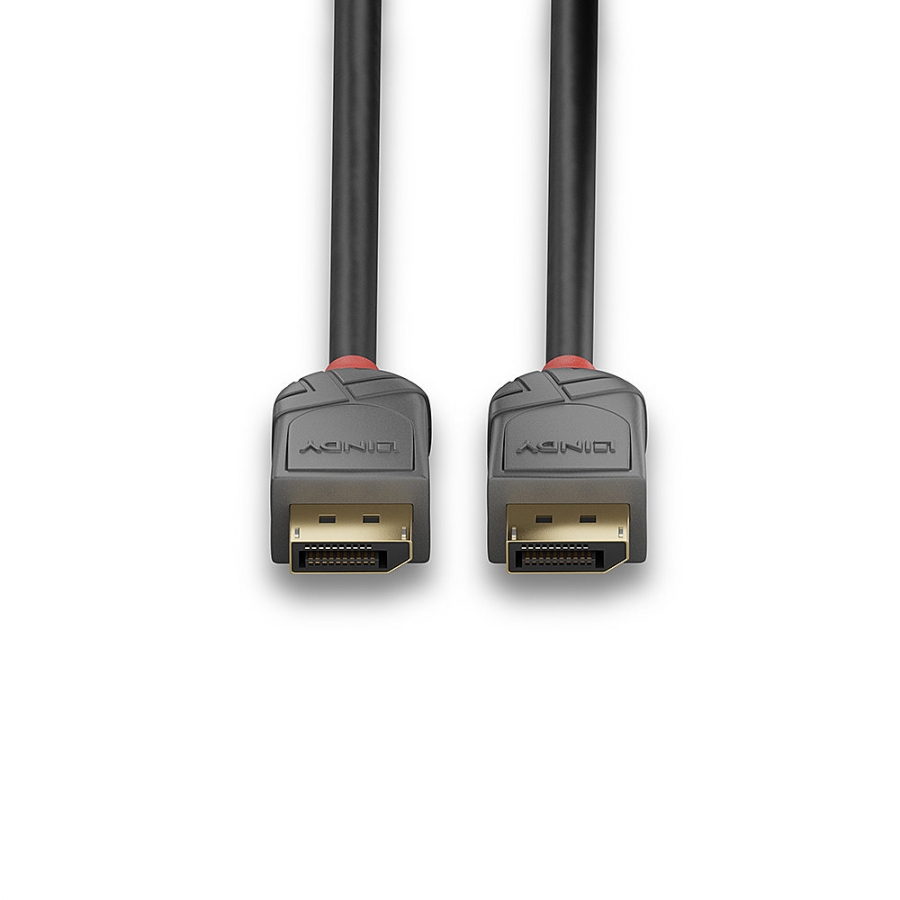

Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit Robust ABS housing 24K gold plated connectors and contacts Triple shielded cable, corrosion resistant tinned copper 28AWG conductors DisplayPort 1.4, 8K 4K, 3D, 32.4Gbps; 10 year warrantyFrom the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m and 10m.
|
| Cable length | 1 m | | Connector 1 | DisplayPort | | Connector 2 | DisplayPort | | Connector 1 gender | Male | | Connector 2 gender | Male | | Maximum resolution | 7680 x 4320 pixels | | Product colour | Black, Grey | | Connector 1 form factor | Straight | | Connector 2 form factor | Straight | | Connector contacts plating | Gold | | DisplayPort version | 1.4 | | Supported graphics resolutions | 4096 x 2160, 7680 x 4320 | | Maximum refresh rate | 60 Hz | | Cable material | Tinned copper | | Cable shielding | Copper | | Jacket material | Polyvinyl chloride (PVC) | | Connector housing material | Acrylonitrile butadiene styrene (ABS) | | AWG wire size | 28 | | Data transfer rate | 32.4 Gbit/s | | Contact material | Phosphor bronze | | Connector material | Gold | | Plug and Play | Y | | Bend radius (min) | 5.84 cm | | Colour sampling | 4:2:2 | | Cable type | Round cable | | Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB | | Certification | RoHS, REACH, UL | | Operating temperature (T-T) | -20 - 80 °C | | Storage temperature (T-T) | -25 - 85 °C | | Cable diameter | 7.3 mm | | Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm | | Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm | | Quantity per pack | 1 pc(s) | | Package type | Polybag | | Harmonized System (HS) code | 84733080 |
|
