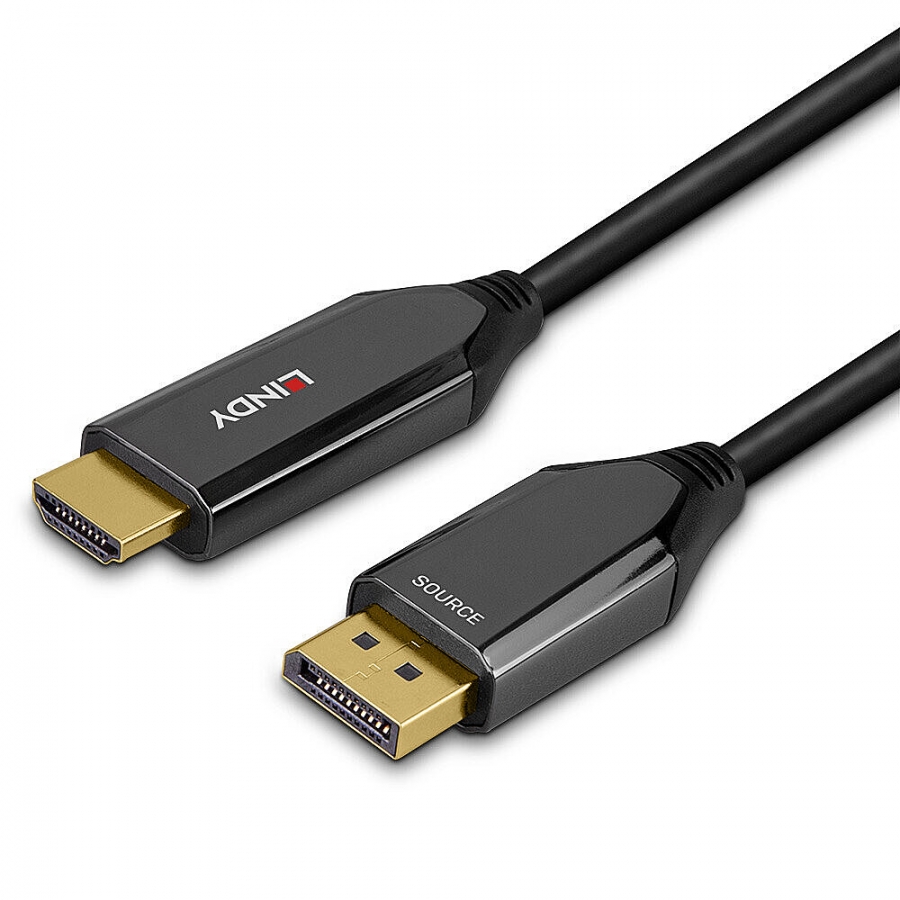

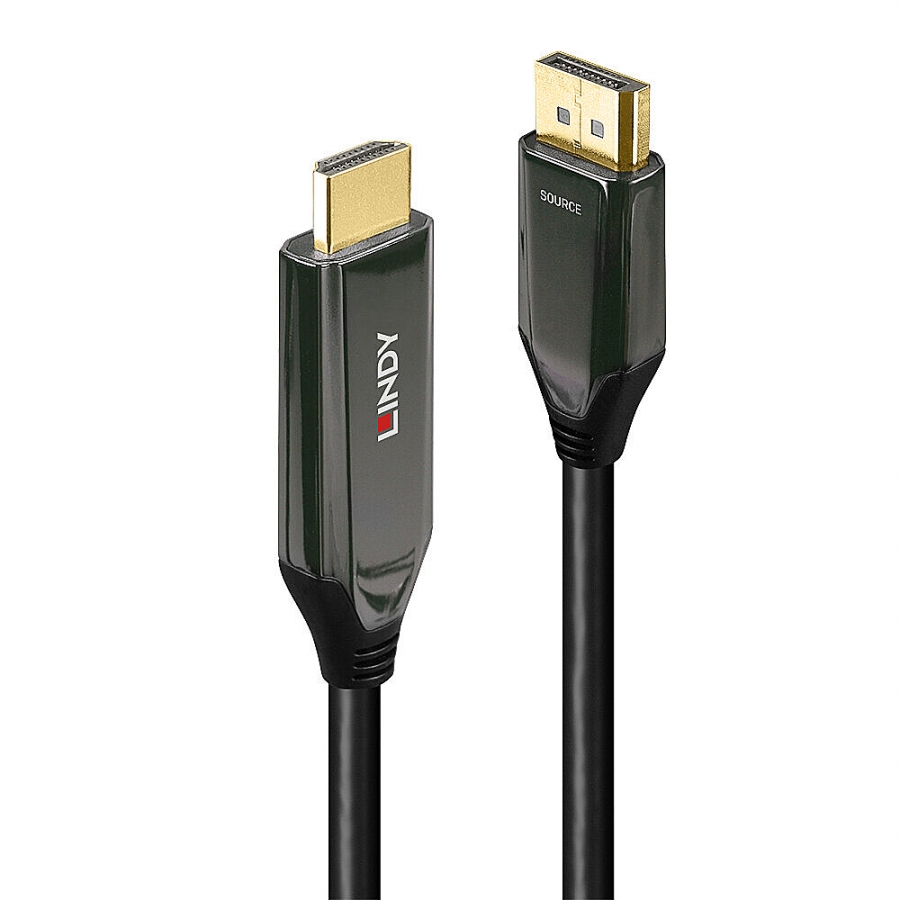

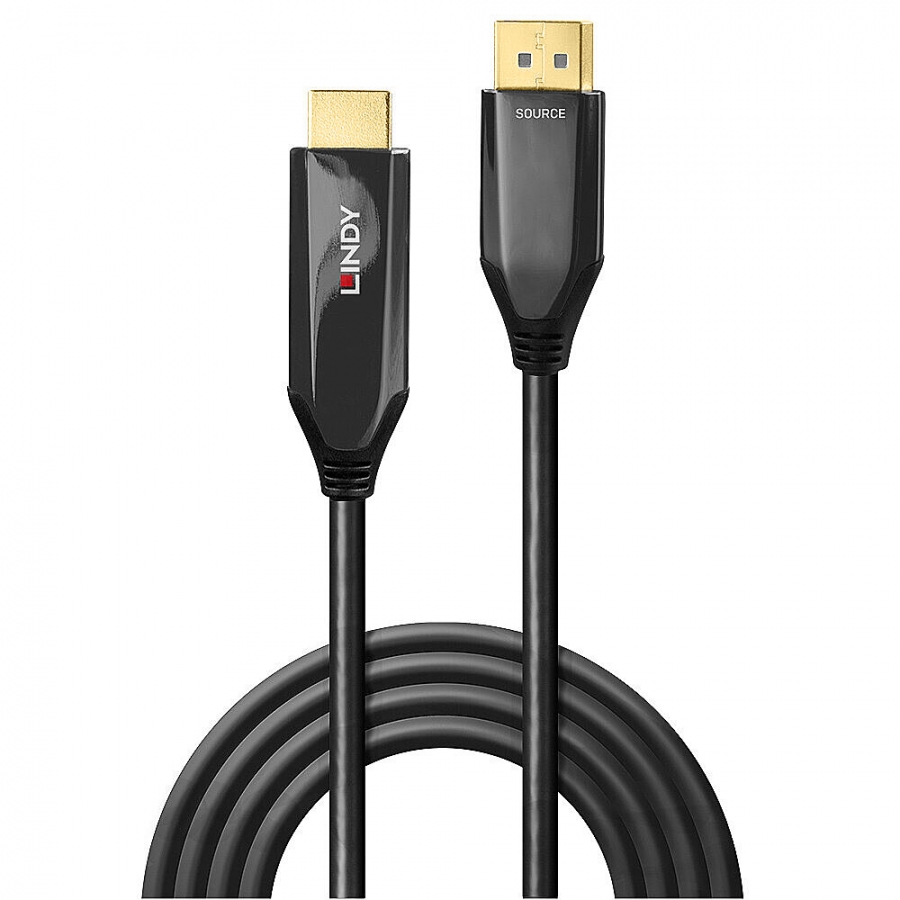

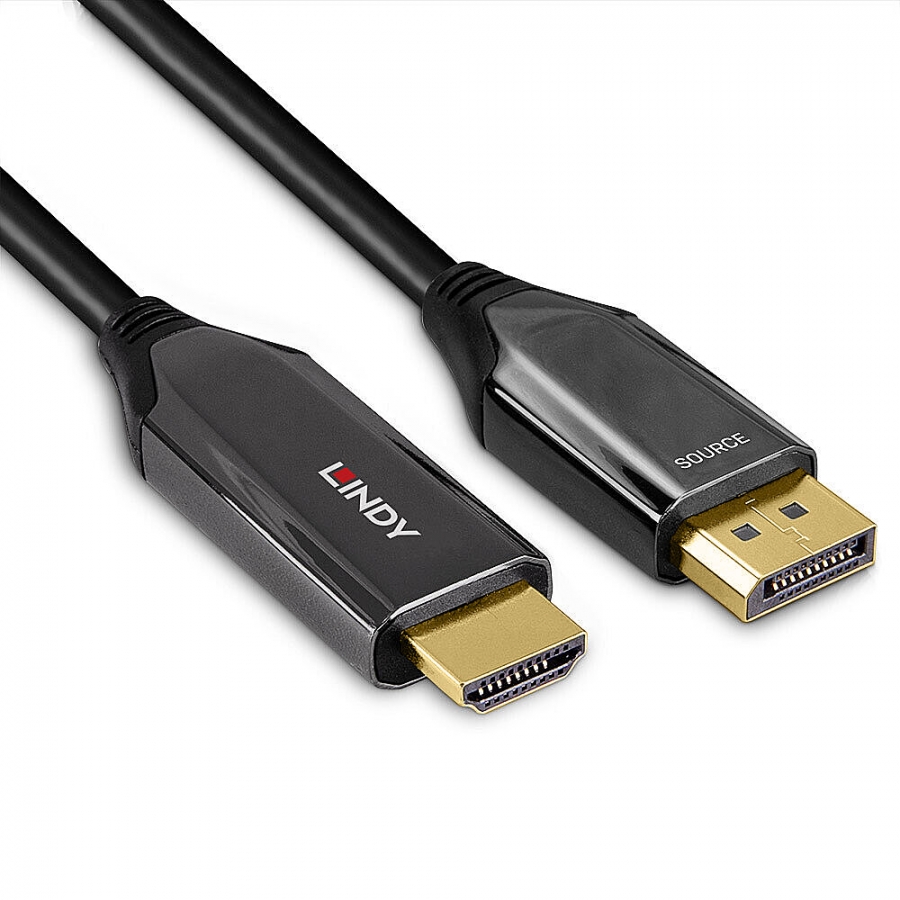

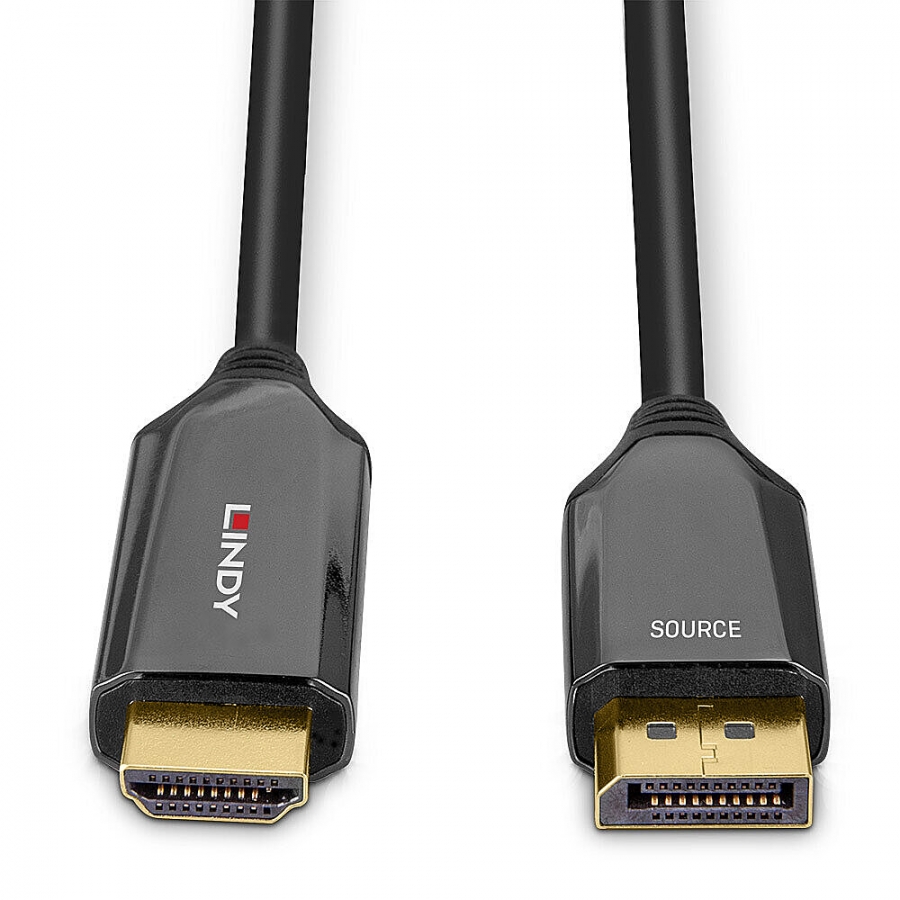

Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC’s, while avoiding the need for additional adapters.With support for resolutions up to 7680x4320@60Hz or 4096x2160@120Hz and with additional support for High Dynamic Range, 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.Please note: Some of Nvidia's latest drivers do not work correctly at 8k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 8k@60Hz 4:2:2
|
| Cable length | 2 m | | Connector 1 | HDMI Type A (Standard) | | Connector 2 | DisplayPort | | Connector 1 gender | Male | | Connector 2 gender | Male | | Connector 1 form factor | Straight | | Connector 2 form factor | Straight | | Connector contacts plating | Gold | | HDMI version | 2.1 | | DisplayPort version | 1.4 | | High Dynamic Range (HDR) supported | Y | | Maximum resolution | 7680 x 4320 pixels | | Supported graphics resolutions | 7680 x 4320 | | Supported video modes | 4320p | | Data transfer rate | 48 Gbit/s | | Maximum refresh rate | 60 Hz | | Refresh rate at maximum resolution | 60 Hz | | Bend radius (min) | 3.3 cm | | Product colour | Black | | Conductor material | Tinned copper | | Nominal attenuation | 100MHz-10GHz ≤ 24dB | | Chipset | VM7100 | | Jacket material | Nylon/Polyvinyl Chloride (PVC) | | Cable type | Round cable | | Certification | CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65 | | Operating temperature (T-T) | -20 - 40 °C | | Storage temperature (T-T) | -40 - 80 °C | | Cable diameter | 5.5 mm | | Connector 1 dimensions (WxDxH) | 60 x 20 x 8 mm | | Connector 2 dimensions (WxDxH) | 50 x 20 x 8 mm | | Package type | Polybag |
|
