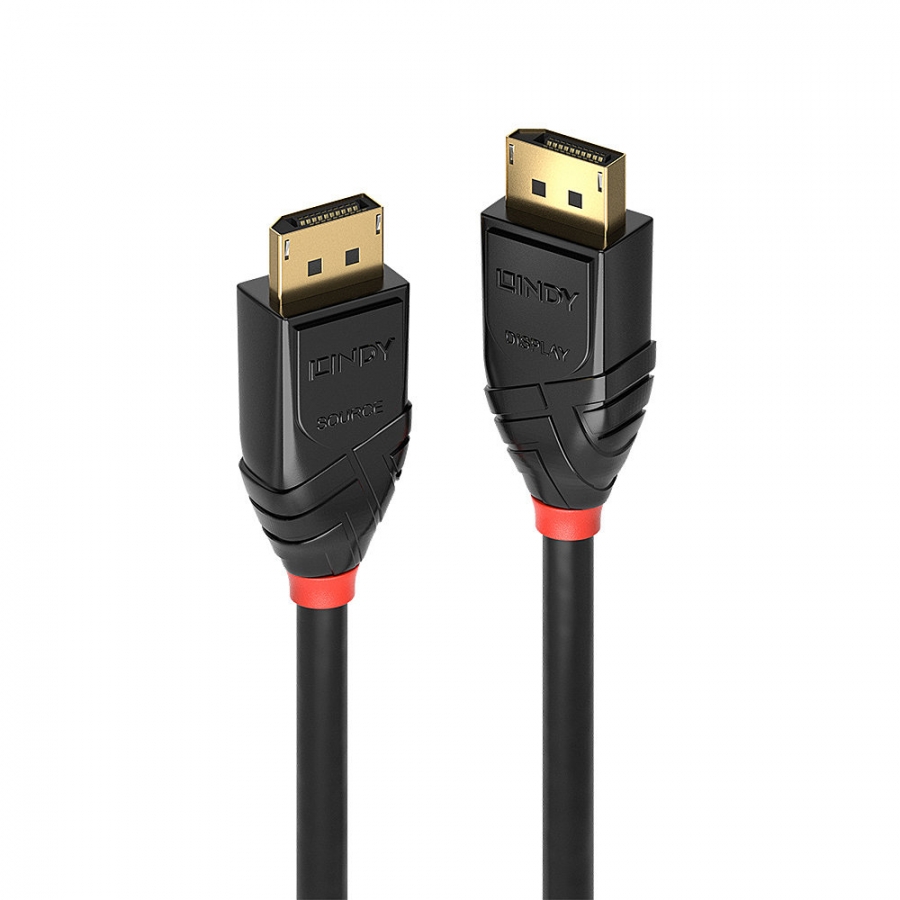

Lindy 30m Fibre Optic Hybrid DisplayPort 1.2 Cable

Connectors

• Connector A: DisplayPort Male
• Connector B: DisplayPort Male
• Housing Material: Zinc Alloy
• Connector Plating: 24K Gold 3µm
• Pin Construction: Phosphor Copper
• Pin Plating: 24K Gold 15µm
• Dimensions (approx.) WxDxH: 20x37x13mm (0.79x1.46x0.51in)

Cable Construction

• Length: 30m (98.42ft)
• Standard: DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PE LS0H
• Conductor Material: Fibre / Copper

Specifications

• Supported Bandwidth: 21.6Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
• Nominal Attenuation:
  • 850nm <3.5dB
  • 1300nm <1.2dB
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Carton box
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Purchasing Information

• No.: 38463
• EAN: 4002888384636

This product is also available in other lengths

• 38460 - 10m (32.81ft)
• 38461 - 15m (49.21ft)
• 38462 - 20m (65.62ft)
• 38463 - 30m (98.42ft)
• 38464 - 40m (131.23ft)
• 38465 - 50m (164.04ft)
• 38466 - 70m (229.66ft)
• 38467 - 100m (328.08ft)
