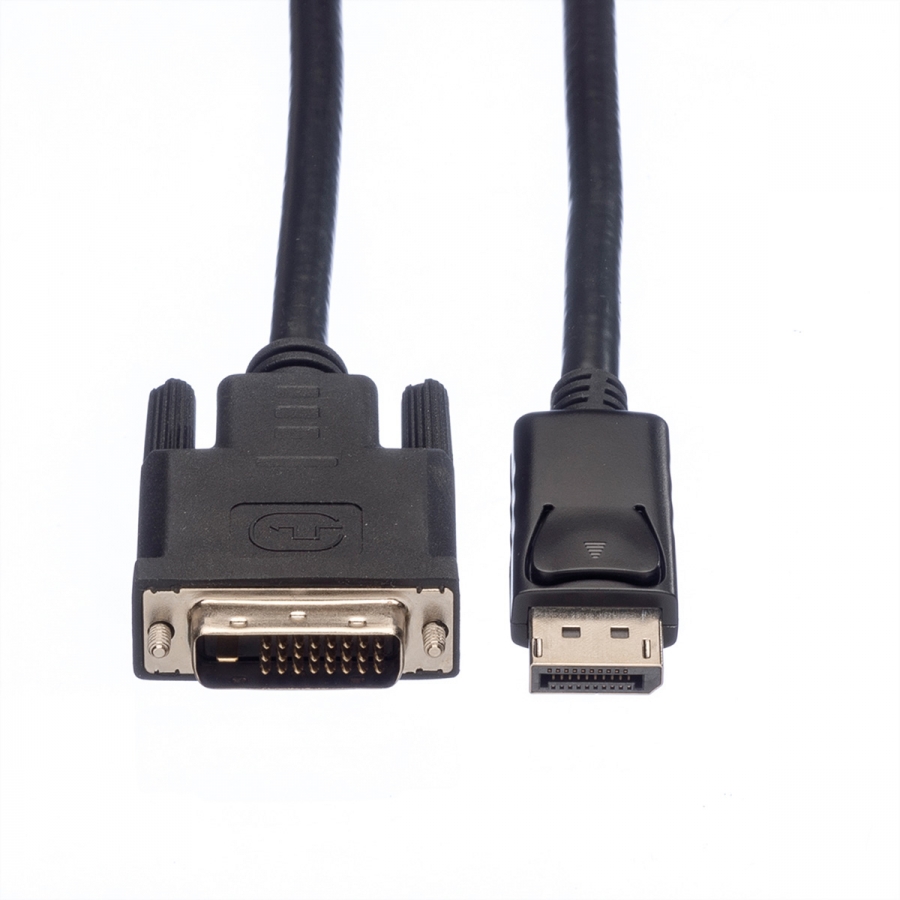

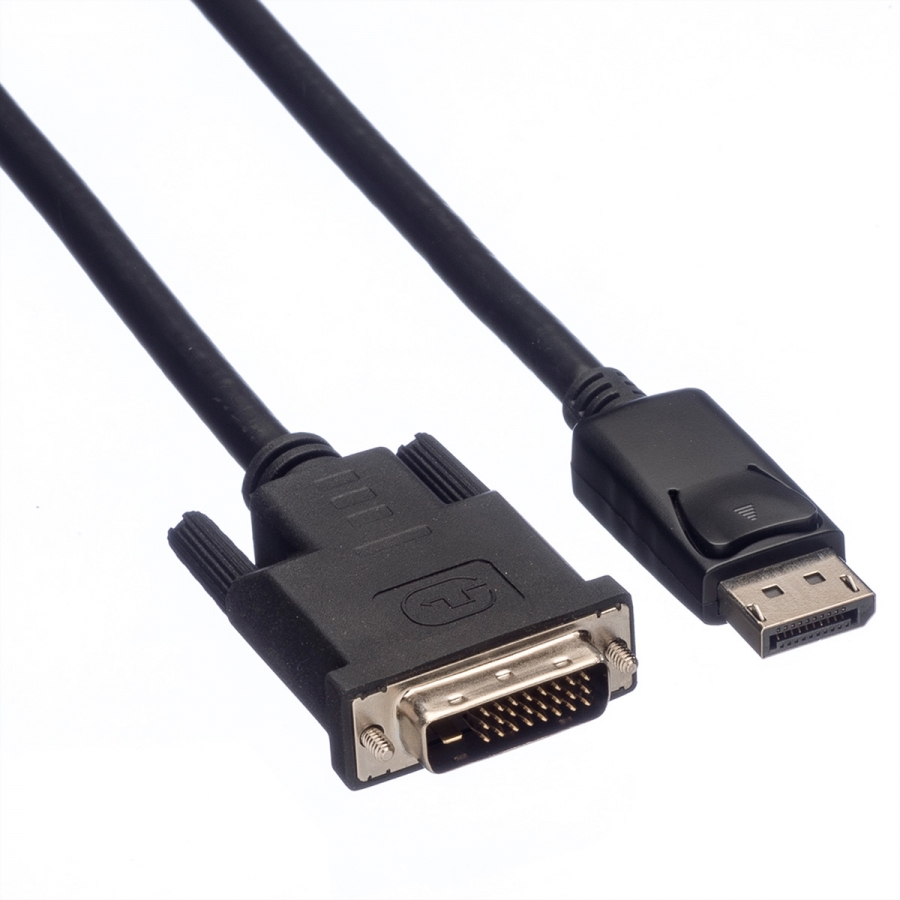

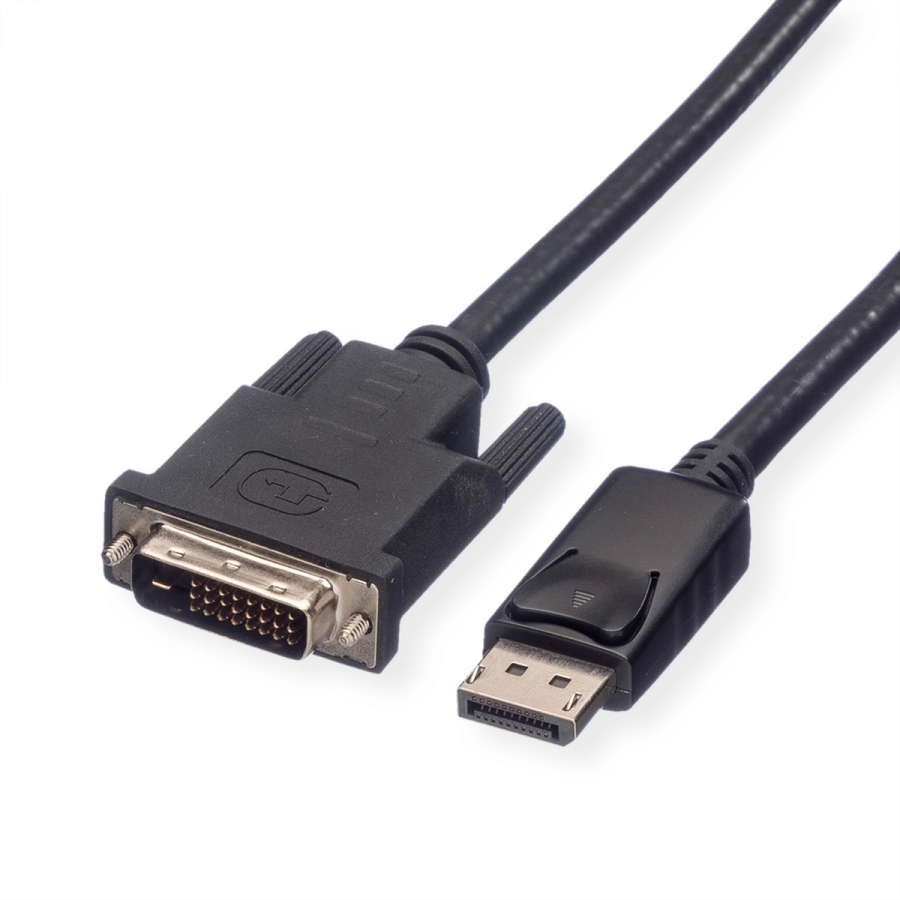

ROLINE DisplayPort Cable, DP-DVI (24+1), LSOH, M/M, black, 1 m

ROLINE

11.04.5771

New

Connect your graphics card to a monitor with DVI connection via DisplayPort - with a maximum resolution of up to 1920x1080 @60Hz!

  • DVI is the standard for digital video transmission in the computer sector.
  • Display Port is the new standard for digital audio/video transmission in the TV and multimedia sector, e. g. for connecting a monitor with DVI interface to a graphic card with DisplayPort connection. The DisplayPort is signal compatible to DVI.
  • Cable with one DisplayPort connector and one DVI connector

  • Compliant DP v1.1 (max. 2560 x 1600 @60Hz)

Halogen-free, flame retardant, low smoke.

Remark: The DisplayPort to DVI cable is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)



ManufacturerROLINE
Product groupCable
Product typeDP-DVI cable
Colourblack
Length1 m
Transfer qualityDisplayPort v1.1
Max. resolution1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 Connector TypeDisplayPort
Side 1 Connector GenderMale
Side 2 Connector TypeDVI-D 24+1, Dual-Link
Side 2 Connector GenderMale
Area of applicationExternal
Cable shieldingScreened
Hand locking screws
Material (external cable mantle)LSOH
Cable LSOH
Weight94.2 g
Current catalog editionC21-03.24
