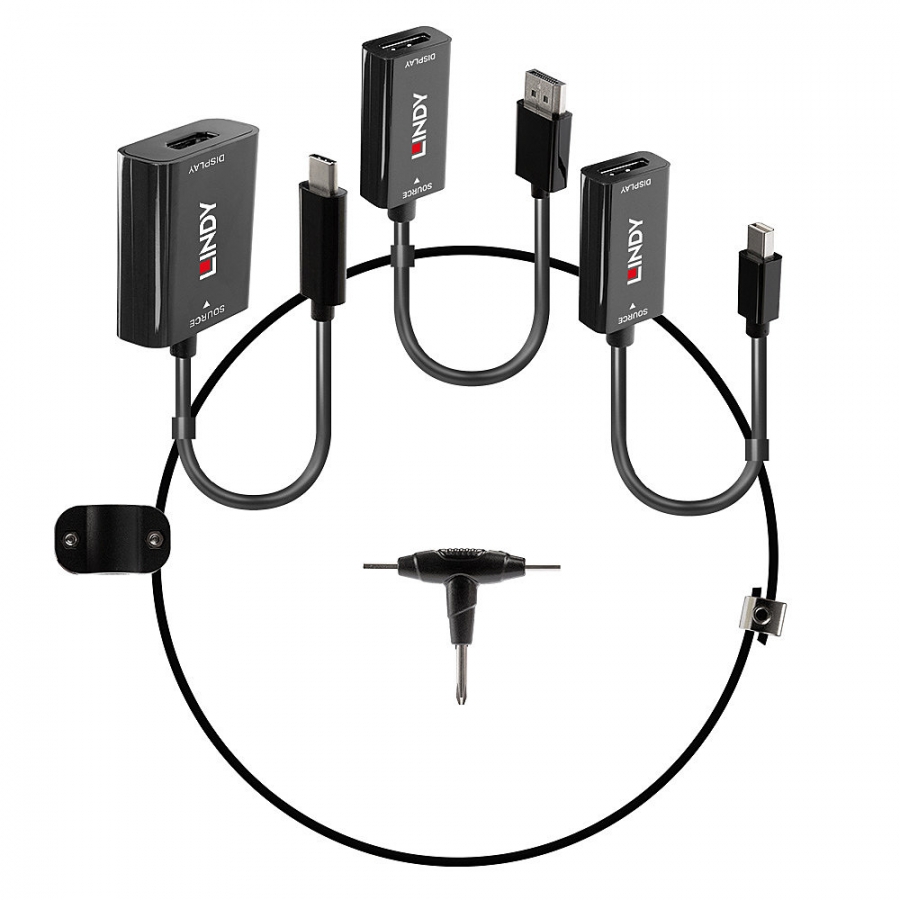

Lindy USB Type C, mDP & DisplayPort to HDMI 18G Converter Tether

Specifications

• AV Interface: USB Type C, Mini DisplayPort, DisplayPort to HDMI
• Interface Standard: DisplayPort 1.2, HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8Bit
• Maximum  Output Resolution: 3840x2160@60Hz 4:4:4 8Bit
• Chipset: DisplayPort : PS176, mDP: PS176, USB Type C: VL100 + PS176
• HDCP Support: 2.2
• Supported Audio: Digital Audio Pass-through
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input : USB Type C (Male), Mini DisplayPort (Male), DisplayPort (Male)
• Output : HDMI Type A (Female)

Physical Properties

• Dimensions (approx.) WxDxH: USB Type C Connector: 7.6x25x6.6mm (0.3x0.98x0.26in) to HDMI: 37x42x12mm (1.46x1.65x0.47in)

Mini DP Connector: 20x26x9.5mm (0.79x1.02x0.37in) to HDMI: 45x45x15mm (1.77x1.77x0.59in)

DisplayPort Connector: 31.5x20x9mm (1.24x0.79x0.35in) to HDMI:45x45x15mm (1.77x1.77x0.59in)

• Cable Length:

USB Type C to HDMI: 125mm (4.92in)

Mini DP to HDMI: 135mm (5.31in)

DP to HDMI: 120mm (4.72in)

• Housing Material: Plastic
• Jacket Material: PVC
• Jacket Diameter: DisplayPort & mDP: 5mm (0.2in), USB Type C: 4mm (0.16in)
• Minimum Bend Radius: DisplayPort & mDP: 55mm (2.17in), USB Type C: 40mm (1.57in)
• Net Weight: 0.0733kg (0.16lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 236x255mm (9.29x10.04in)
• Gross Weight: 0.0891kg (0.2lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• USB Type C, mDP & DisplayPort to HDMI 18G Converter Tether
• PH0x75 Screwdriver

Purchasing Information

• No.: 38304
• EAN: 4002888383042
