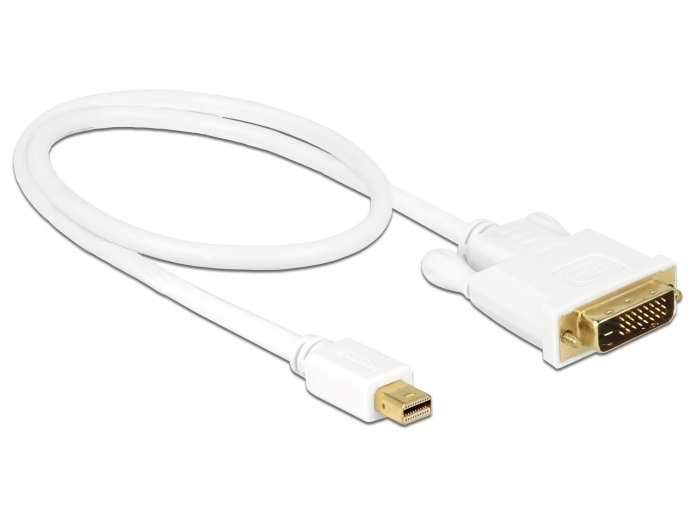

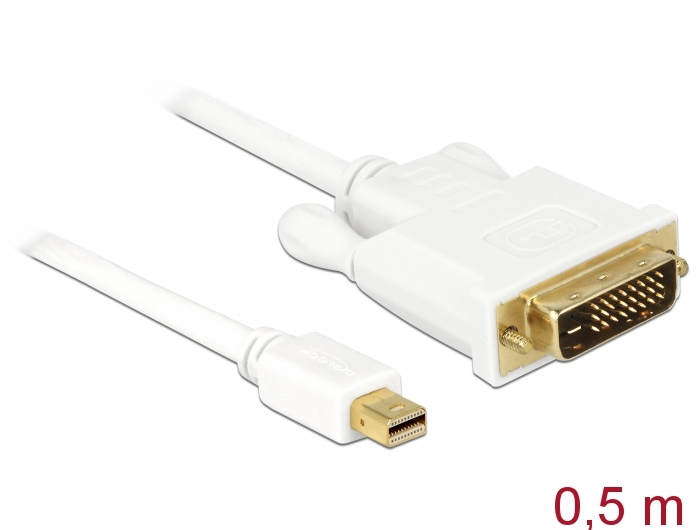

Delock Cable mini Displayport 1.1 male > DVI 24+1 male 0.5 m

Reference 83986

Condition: New

More info

This cable by Delock can be used to connect a display with an DVI port to a PC or a laptop with mini Displayport interface.

System requirements:
• One free mini Displayport DP++ female

Specification:
• Connectors:
1 x mini Displayport 20 pin male >
1 x DVI 24+1 male with screws
• Chipset: NXP PTN3361
• DVI-D (Single Link), VGA not wired
• Displayport 1.1a specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: mini Displayport input > DVI output
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Data transfer rate up to 3.96 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: white
• Length incl. connectors: ca. 0.5 m

Package content:
• Mini Displayport to DVI cable

Data sheet:
http://www.delock.de/produkt/83986/pdf.html?sprache=en
