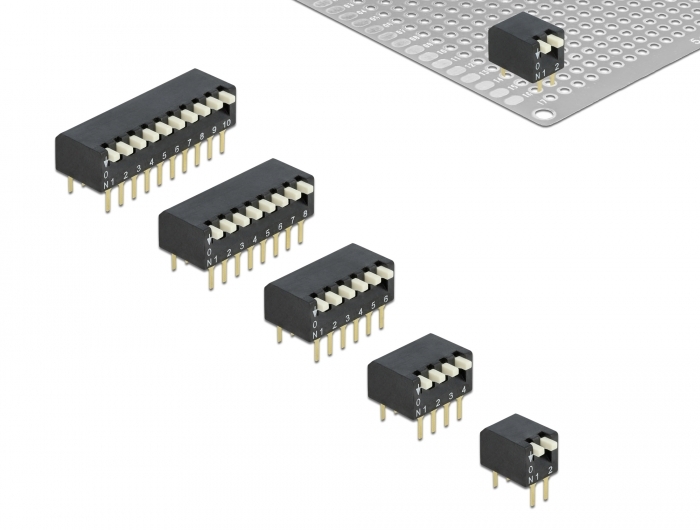

Delock DIP flip switch piano set (2, 4, 6, 8 and 10-digit) 2.54 mm pitch THT vertical black

Reference 66525

Condition: New

More info

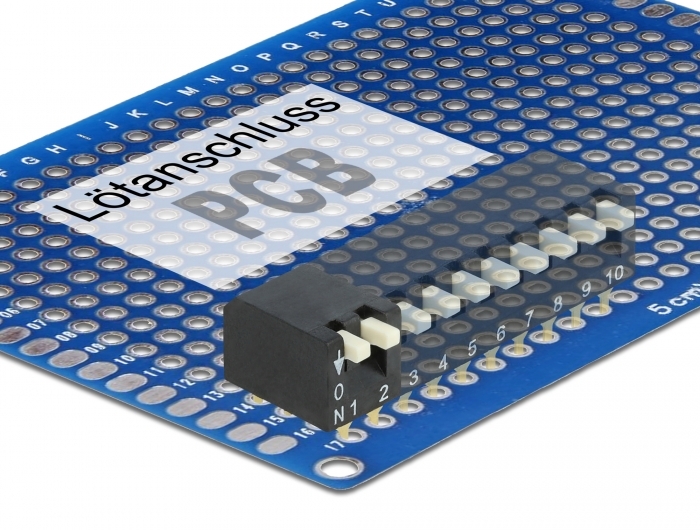

These DIP flip switches by Delock are suitable for the solder mounting on a PCB.

THT Assembly Technology

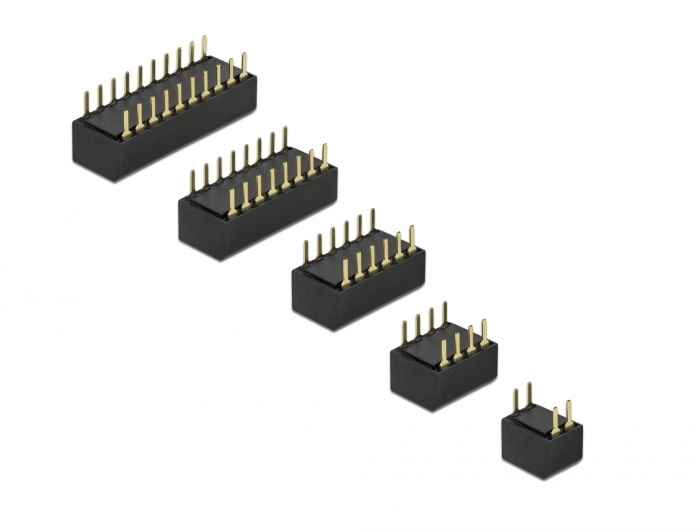

The attached soldering pins on the DIP switch can be inserted through contact holes on a PCB and soldered from the bottom side. The switching rows are used to set configurations and to change parameters.

Multifunctional application
The DIP switches are mainly used in telecommunications, computers and measuring.

Specification:
• DIP-switch:
  2-digit - connectors: 2 x 2 soldering pins
  4-digit - connectors: 2 x 4 soldering pins
  6-digit - connectors: 2 x 6 soldering pins
  8-digit - connectors: 2 x 8 soldering pins
  10-digit - connectors: 2 x 10 soldering pins
• Pitch: 2.54 mm
• Switch position: on / off
• Switching rating: 25 mA, 24 VDC
• Insulation resistance: 1000 MΩ / 500 VDC
• Withstanding voltage: 500 VAC / 1 minute
• Soldering temperature: 250 °C for ca. 10 seconds
• Mechanical life: 3000 cycles
• Environmental temperature: -30 °C ~ 85 °C
• Operating temperature: -40 °C ~ 85 °C
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 105 x 13 x 12 mm

Package content:
• 5 x DIP flip switch

Data sheet:
http://www.delock.de/produkt/66525/pdf.html?sprache=en
