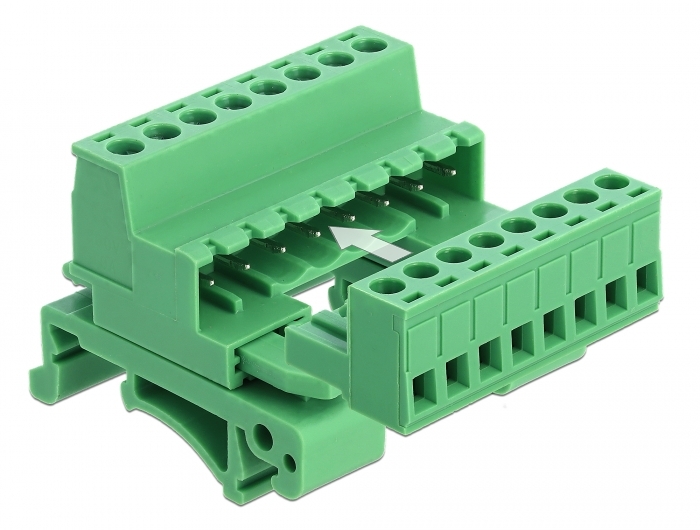

Delock Terminal Block Set for DIN Rail 8 pin with pitch 5.08 mm angled

DELOCK

66081

New

This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block.

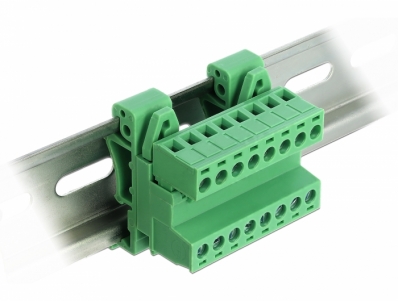

DIN Rail Mounting
This terminal block set can be fixed on a DIN rail with a width of 35 mm.
Specification:
• Connectors:
  Terminal block:
  1 x 8 pin male
  1 x 8 pin screw terminal
  Connection terminal:
  1 x 8 pin female
  1 x 8 pin screw terminal
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Withstanding voltage: AC 2500 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 320 V
• Rated current according to: UL: 10 A, IEC: 15 A
• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 32.45 x 42.45 mm
Package content:
• Terminal block
• Connection terminal
• DIN rail clip
Data sheet:
http://www.delock.de/produkt/66081/pdf.html?sprache=en
