Delock Aluminium Mounting Clip for DIN Rail

Delock Aluminium Mounting Clip for DIN Rail

DELOCK

65991

New

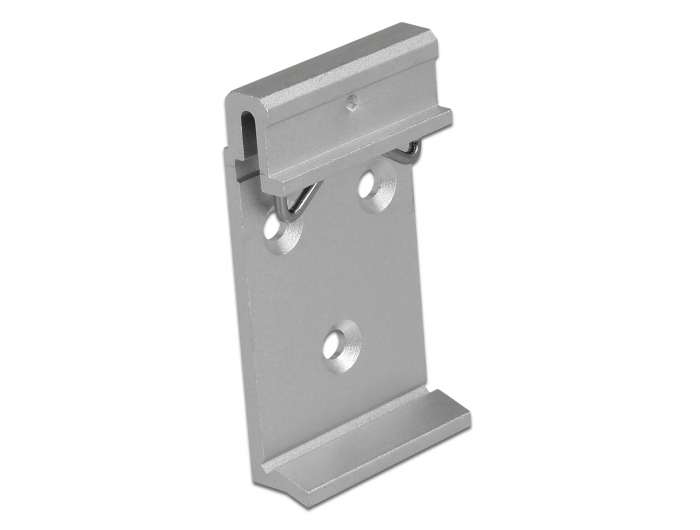

This mounting clip by Delock is suitable for the mounting on a 35 mm DIN rail.

To be used for different devices

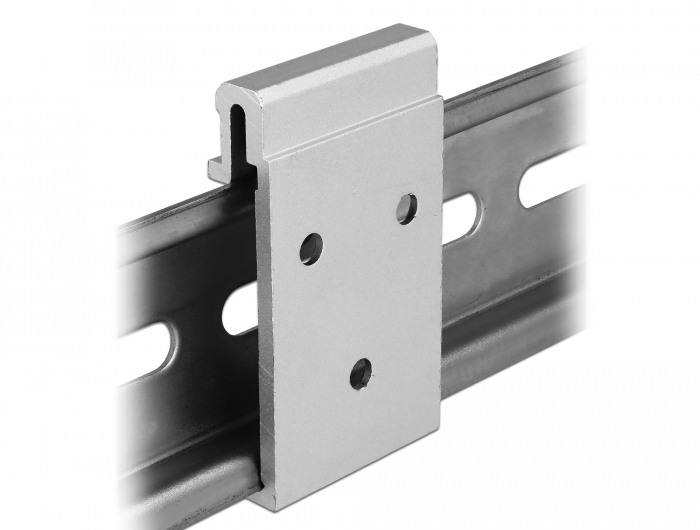

The clip can be screwed to different devices by the 3 mounting holes. This allows you to mount the devices e.g. in a control cabinet onto a DIN rail.
System requirements:
• 35 mm DIN rail
Specification:
• Environmental temperature: -40 °C ~ 85 °C
• DIN rail mounting: 35 mm
• 3 x mounting holes
• Mounting hole diameter: 6 mm
• Pitch of screw hole: ca. 15 mm
• Material: aluminium with spring steel wire

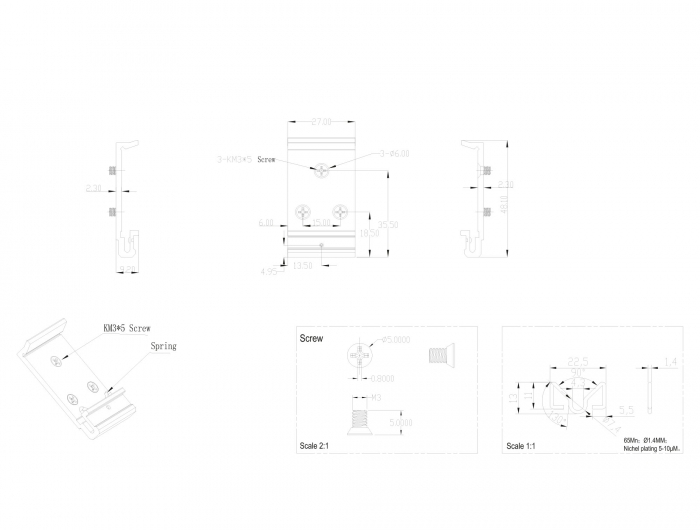

• Dimensions (LxWxH): ca. 48.1 x 27.0 x 9.2 mm
Package content:
• 1 x mounting clip
• 3 x screw 3 x 5 mm
Data sheet:
http://www.delock.de/produkt/65991/pdf.html?sprache=en
