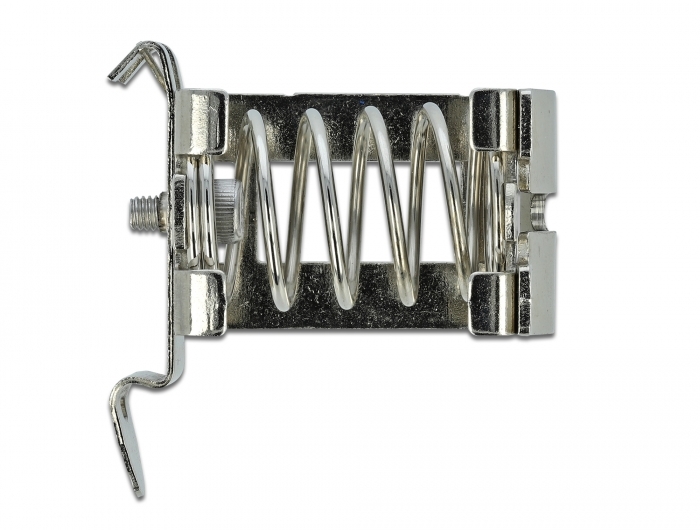

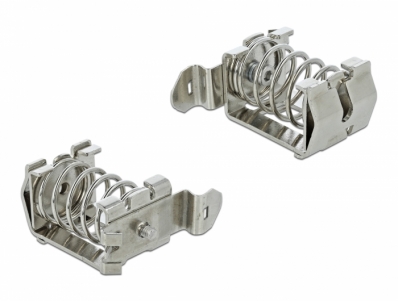

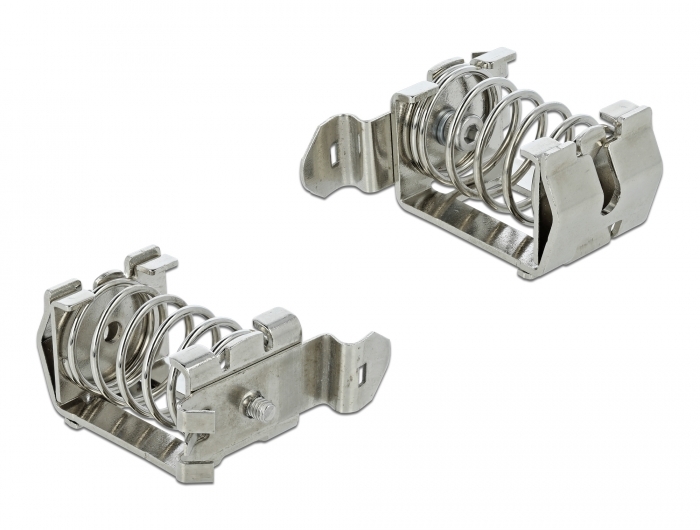

Delock Shield Clamp for DIN Rail - Cable diameter 10 - 20 mm

Reference 66442

Condition: New

More info

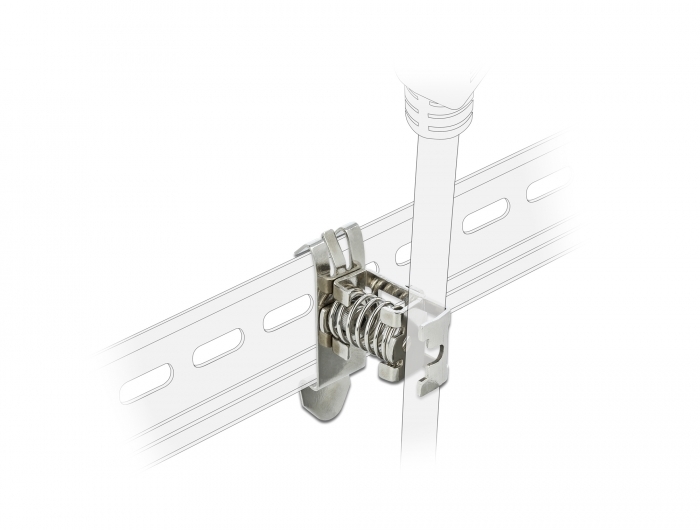

With this shield clamp by Delock a cable with a diameter of 10 - 20 mm can be attached to a 35 mm DIN rail. The clamp can also be used as an EMC shield. In this case, unwanted electrical or electromagnetic effects are dissipated from the DIN rail.

Application
To fasten a cable to the clamp, the spring must be pressed down with a tool, e.g. a screwdriver. If a cable is attached to the clamp, the best way to detach it is to press the spring down with the cable. The shield clamp can also be screwed to the DIN rail, for which an Allen key size HX3 is required.

System requirements:
• 35 mm DIN rail

Specification:
• DIN rail mounting: 35 mm
• Cable diameter:
min.: 10 mm
max.: 20 mm
• Material: metal
• Dimensions (LxWxH): ca. 40 x 26 x 24 mm

Package content:
• Shield clamp

Data sheet:
http://www.delock.de/produkt/66442/pdf.html?sprache=en
