Delock Board Holder for DIN Rail 50 cm long
Previous Next

Delock Board Holder for DIN Rail 50 cm long

DELOCK

66086

New

Add to Compare

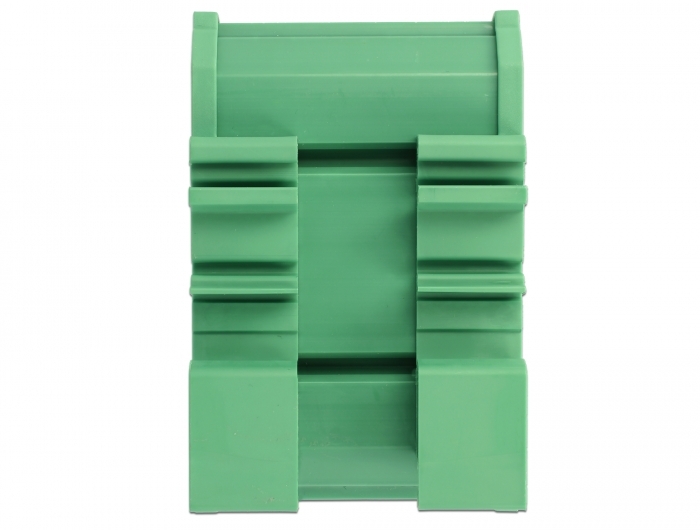

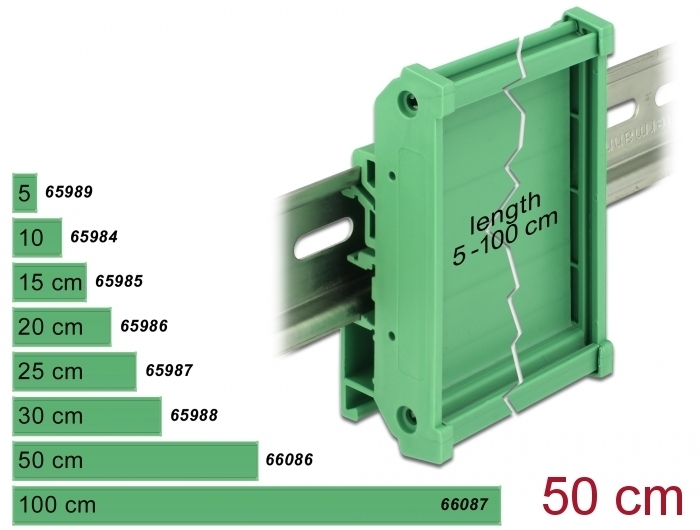

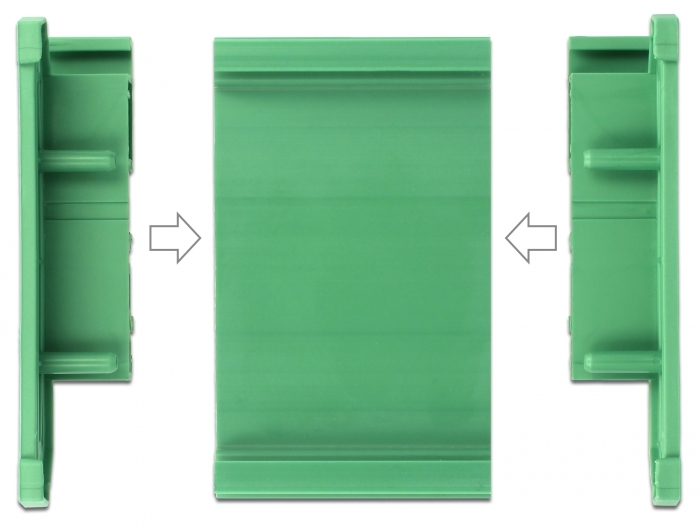

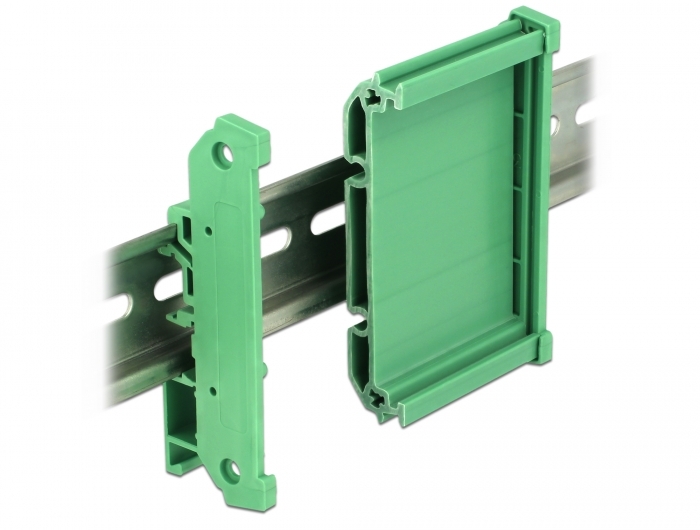

This board holder by Delock can be used to hold circuit boards with a width of 72 mm, to mount them on a 15 mm or 35 mm DIN rail. The board holder can be shortened individually in different lengths. After shortening, the two end caps can be put on again.
System requirements:
• 15 mm or 35 mm DIN rail
Specification:
• Suitable for boards with a width of 72 mm
• Environmental temperature: -10 °C ~ 70 °C
• DIN rail mounting: 15 mm and 35 mm
• 4 x mounting holes
• Mounting hole diameter: 3.5 mm
• Pitch of screw hole: ca. 70 mm
• Material: plastic
• Colour: green
Package content:
• 1 x board holder
• 4 x screw
• 2 x end cap
Data sheet:
http://www.delock.de/produkt/66086/pdf.html?sprache=en
