Digitus Top cooling unit, 5.5 kW

Digitus Top cooling unit, 5.5 kW

Digitus

DN-97331

New

Add to Compare

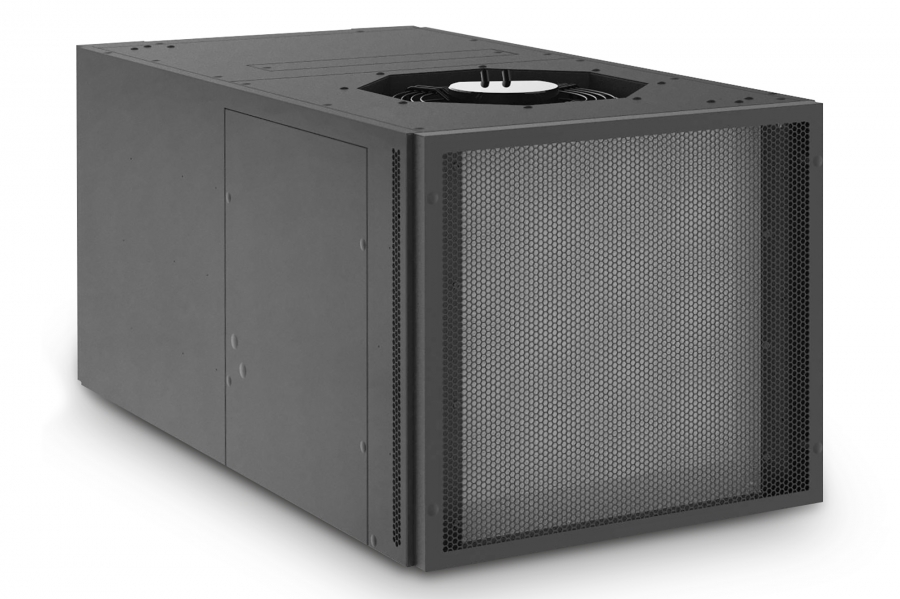

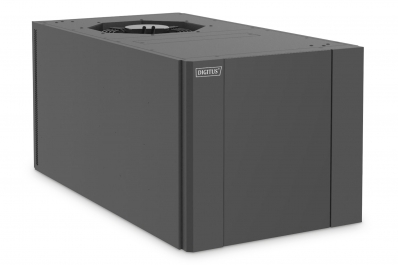

Top cooling unit, 5.5 kW 390 x 600 x 1110 mm

Ideal temperature management for your IT equipment without taking up space in the rack.

The inverter, compressor and EC fan operate at high efficiency to maintain the temperature in the housing.
Precise and protective constant cooling control.
Easy installation on racks and micro data center solutions.
Rooftop installation ensures ideal temperature management of cold and warm airflows without taking up space at the 19" level for other IT equipment.
Highly-efficient and environmentally-friendly refrigerant R410A without ODP (ozone depletion potential).

The rooftop air conditioning unit from DIGITUS® is a highly-efficient precision cooling device with a compact design. Designed as a rooftop installation variant for mounting on a 482.6 mm (19") cabinet, the device is easy to integrated into existing building management systems. It serves to supply the installed devices with cold air at the front 482.6 mm (19") level, the warm exhaust air is recirculated through the rear area of the cabinet. Precision control ensures a constant temperature of supply air or recirculated air depending on the selection. The output-controlled compressor unit is designed for long-term operation in a broad load range. The device uses an environmentally-friendly refrigerant R410A without ozone depletion potential. Electronically controlled EC fans ensure energy-efficient cooling of the required airflows.

Air volume in m³/h: 900
Cooling type: DX
Refrigerant: R410A
Sensible heat (SHR): 100%
Full load amps (FLA-A): 7.8
Storage period: No longer than 6 months, calibration is required afterwards
Power consumption: 208-240V/50Hz-60Hz/1Ph-2Ph
Operating temperature range: Inside -10 °C to 55°C; Outside -20 °C to 45 °C
Storage temperature range: -40 °C to +60 °C
Operating humidity: 5% to 95% RH (non-condensing)
Product dimensions: 520 x 600 x 1110 mm (HxWxD)

Package content:
1 x Air conditioning unit
1 x Connection cable
1 x User manual

Platums(cm)71
Grums(cm)120
Augstums(cm)71
Svars(kg)110
Tilpums(cm3)604920
Izcelsmes valstsCN
