| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Store-and-forward | Y |
| Duplex system | Full |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |

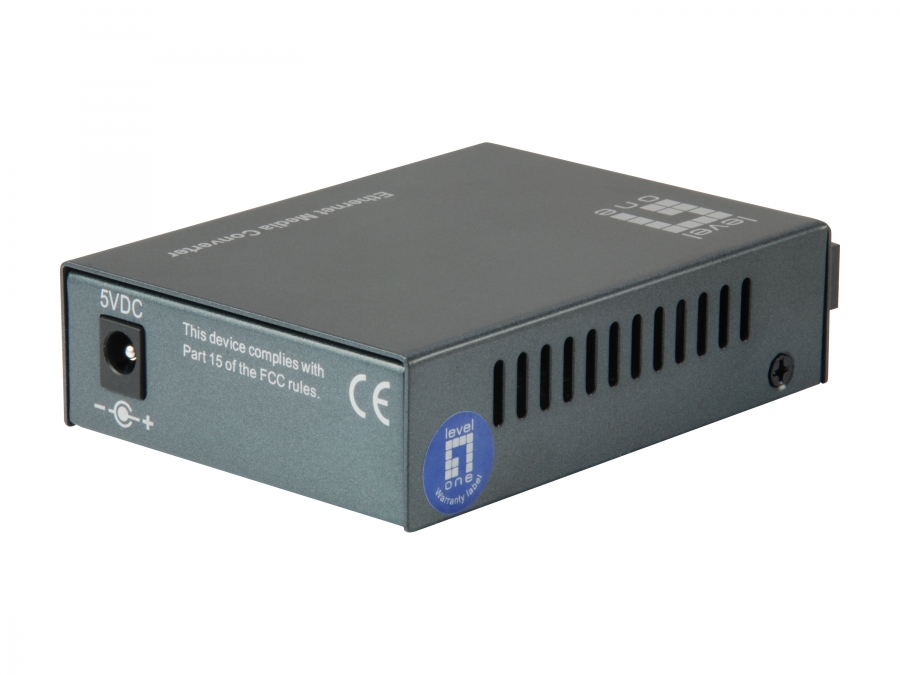

| DC-in jack | Y |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Mean time between failures (MTBF) | 100000 h |
| Internal | N |
| LED indicators | Y |
| Product colour | Black |
| Country of origin | China |
| Certification | FCC, CE |
| Input voltage | 5 V |
| Input current | 1 A |
| Width | 94 mm |
| Depth | 71 mm |
| Height | 26 mm |
| Weight | 200 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Package width | 230 mm |
| Package depth | 150 mm |
| Package height | 58 mm |
| Package weight | 300 g |
| Package type | Blister |
| AC adapter included | Y |
| Quick installation guide | Y |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 305 mm |
| Master (outer) case gross weight | 32 kg |
| Products per master (outer) case | 40 pc(s) |
