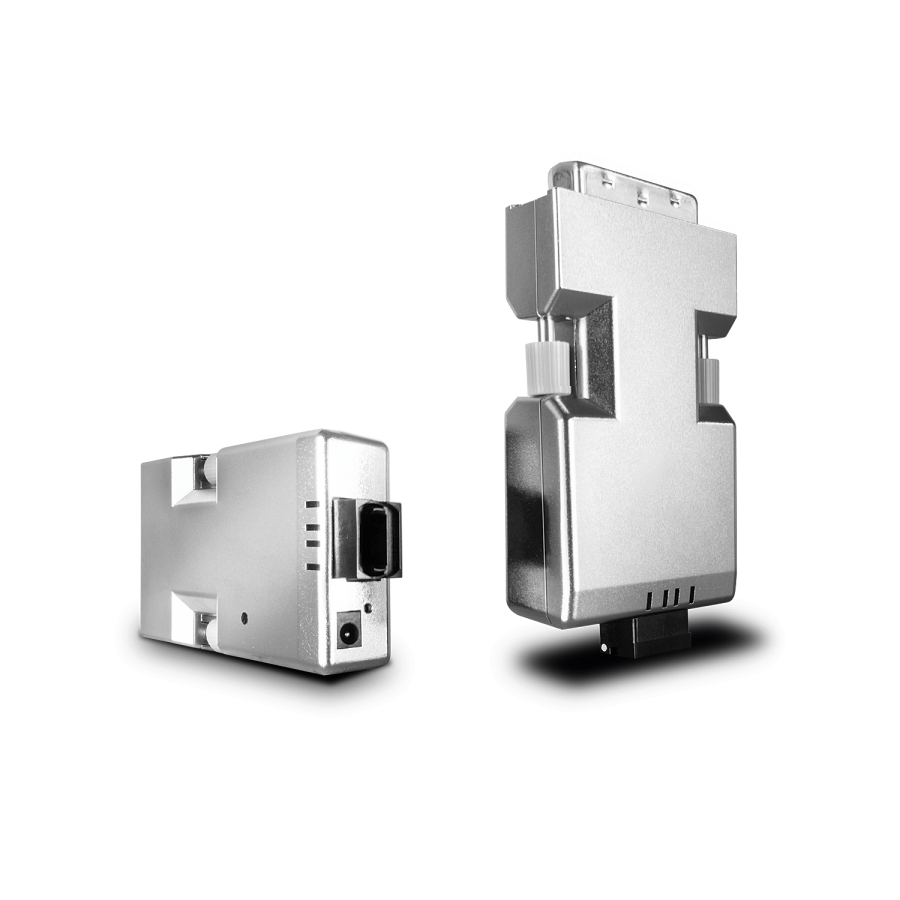

LINDY Extender DVI-D Dual Link LWL/Fibre Optic 500m

Reference 38106

Condition: New

More info

Extend DVI-D Dual Link signals up to 500m using a single fibre optic cable (not included) Compatible with DVI-D 2.0 specifications including HDTV & HD-Ready displays Supports HDTV resolutions up to 2560 x 1600 @ 60Hz / 1600p @ 60 Hz Auto & Self learning EDID transmission No HDCP support Auto laser cut off if fibre optic cable is broken or DVI-D cable removed 2 year warrantyEasy to set up and install this compact Fibre Optic DVI-D Dual Link Extender is a cost effective, high quality solution for sending DVI-D signals up to 500m without any compression or degradation over MPO Multimode cable.Unlike other solutions, this extender uses just a single fibre cable to reach such great lengths. The system comprises of transmitter and receiver modules that connect directly to the digital source & display via DVI-D. The modules are then connected using a single, MPO fibre optic cable (not included).Please note - We recommend using 50/125µ or 62.5/125µ MPO multimode fibre cable. Please contact Technical Support for further advice.Package Contents1 x Transmitter Unit 1 x Receiver Unit 2 x multi country 5V 1A power supplies LINDY Manual

Type	AV transmitter & receiver
Maximum resolution	2560 x 1600 pixels
Cable types supported	Fiber
Maximum transfer distance	500 m
LED indicators	Y
Product colour	Grey
DVI input ports	1
DVI output ports	1
Video in	1
Video out	1
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 65 °C
Receiver dimensions (WxDxH)	40 x 80 x 15 mm
Receiver weight	100 g
Transmitter dimensions (WxDxH)	40 x 80 x 15 mm
Transmitter weight	100 g
