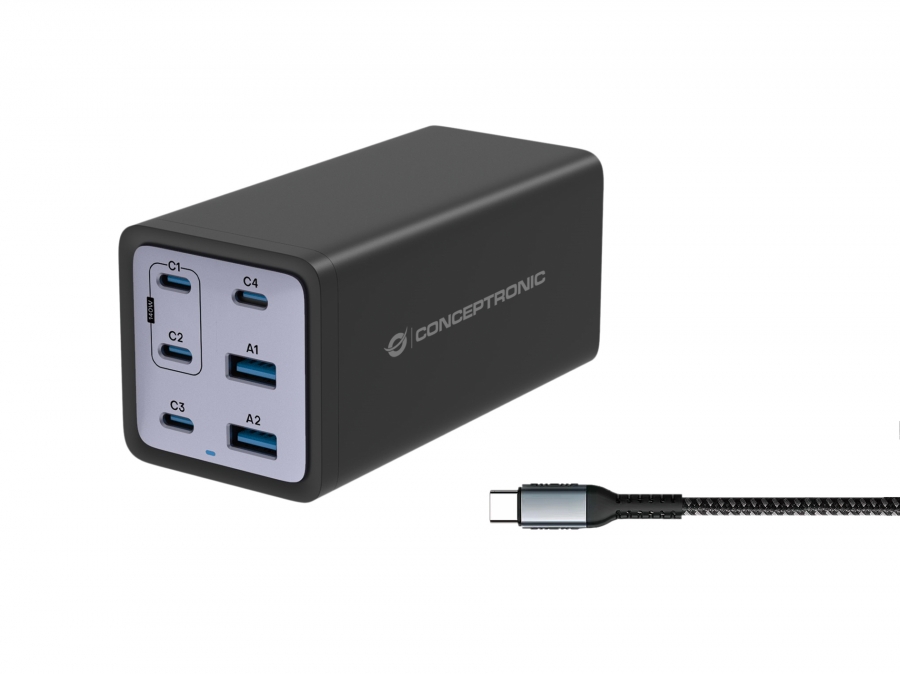

CONCEPTRONIC Ladegerät 4Port 200W,4xUSB-C,2xUSB-A +3-in-1 sw

Reference OZUL06BE

Condition: New

More info

The PD 3.1 USB Charger offers efficient and ultra-fast charging with Power Delivery (PD) 3.1 technology. It features a single USB-C port capable of delivering up to 140W of power, perfect for charging devices such as MacBook Pro 16", MacBook Air, Dell laptops, Nintendo Switch, and more. This 6-in-1 charger includes 4 USB-C ports and 2 USB-A ports, providing a total output of up to 200W to accommodate various charging power needs.

Moreover, this GaN 2 charger utilizes gallium nitride (GaN) technology, offering a smaller and more streamlined alternative to traditional silicon chargers. Compared to GaN 1 chargers, it generates less heat, resulting in greater efficiency and more power directed to the device rather than being lost.

For safety, the charger is protected against overload, short-circuiting, and overheating. It's an ideal all-in-one charging solution for daily use, providing efficient and reliable power delivery for all your devices.

Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
Number of simultaneously connected devices (max)	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C ports quantity	4
Fast charging	Jā
Fast charging technology	Power Delivery, Quick Charge 3.0
USB Power Delivery	Jā
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
Power protection features	Overheating, Overload, Short circuit
Country of origin	China
Product colour	Black
Gallium nitride (GaN) transistors	Jā
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	2.5 A
Maximum power	200 W
Maximum output voltage	55 V
Minimum output voltage	3.3 V
Port 1 output power	140 W
Port 2 output power	140 W
Port 3 output power	45 W
Port 4 output power	20 W
Port 5 output power	18 W
Port 6 output power	18 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	5 A
Port 1 output current	5 A
Port 2 output current	5 A
Port 3 output current	4.05 A
Port 4 output current	3 A
Port 5 output current	3 A
Port 6 output current	3 A
Width	53.5 mm
Depth	53.5 mm
Height	112.5 mm
Weight	450 g
Cables included	AC, USB Type-C to USB Type-C
Package type	Hanging box
Package width	160 mm
Package depth	57 mm
Package height	150 mm
Package weight	735 g
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Harmonized System (HS) code	8504409999
Pallet gross width	120 cm
Pallet gross length	80 cm
Pallet gross height	152 cm
Master (outer) case width	335 mm
Master (outer) case length	320 mm
Master (outer) case height	300 mm
Master (outer) case gross weight	15.2 kg
Products per master (outer) case	20 pc(s)
Number of products included	1 pc(s)
User guide	Jā
Sustainability compliance	Jā
