Digitus Wall Box 3-phase 11kW with 5 m Type2 charging cable

Digitus

DN-3P16-050

New

Wall-Box 3-Phase 11kW with 5m standard Charger cable

Homecharger / charging station, start -stop button, flexible charging cable (Type2). Input power: 11 kW.

Safety and durability - high quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
Connectivity - compatible for all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
Charging - supports charging processes 3-Phase 11 kW
Display - the LED lights shows all charging status during charging, even if there is an error during charging.
Safety and protection - surge protection, over temperature protection, Type B RCD, over current protection, ground protection
CE certified by TÜV
Easy and time saving charging.

The DIGITUS Wallbox DN-3P16-050 offers an intelligent and convenient way to charge E-vehicles. The integrated connector plug (type 2) is connected to the wall-box by a 5 m long cable. Due to the IP55 protection class, a flexible installation at different locations is possible. Of course, the DN-3P16-050 wall-box is also eligible for funding by the KfW.

Charging standard: DIN EN 61851-1
Charging power: up to 11 kW
Rated voltage: 230 V / 400 V / AC / +/- 15%
Connection phases: 3
Rated current: 16 A
Rated frequency: 50 Hz

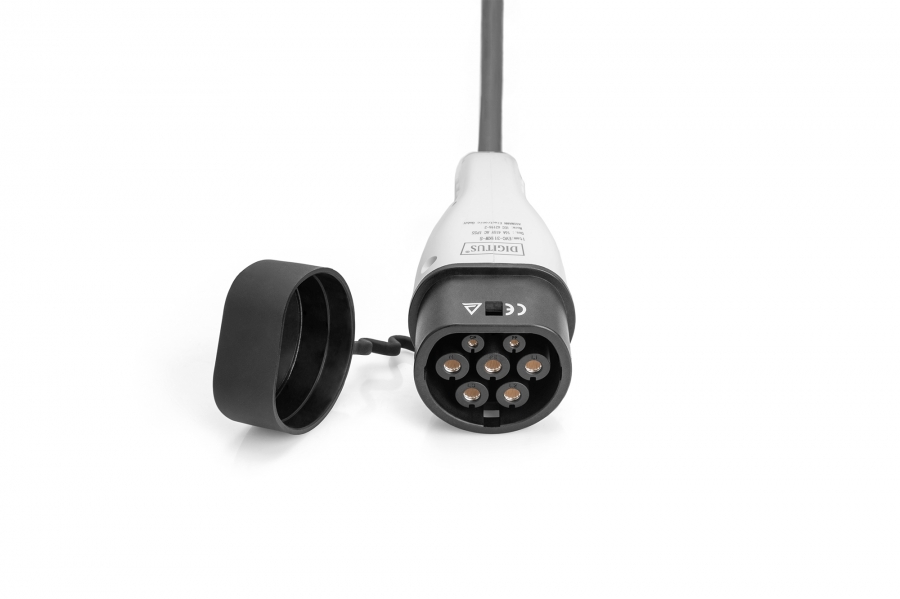

Vehicle charging plug: Type 2
Dimensions: 161 × 310 × 79.8 mm (W/H/D)
Connection: supply cable 2.5 mm² to 6 mm² - connection screwable via terminal block
Length charging cable: 5.0 m
Charging cable type: 5 x 2.5 mm² + 2 x 0.5 mm²
Outer jacket: TPU
Cable color: Black
Operating temperature: 30°C~+50°C
Safety protection: RDC Type A + DC 6 mA (integrated)
Protection class: IP55 (water-jet protected)
LED status indicator: Operating and charging status
Device protection: Emergency stop button

Package content:
Wall-Box incl. 5 m Charger cable
Quick Installation Guide
Mounting kit: Clamp and screws

Platums(cm)45
Grums(cm)45
Augstums(cm)12
Svars(kg)4.625
Tilpums(cm3)24300
Izcelsmes valstsCN
