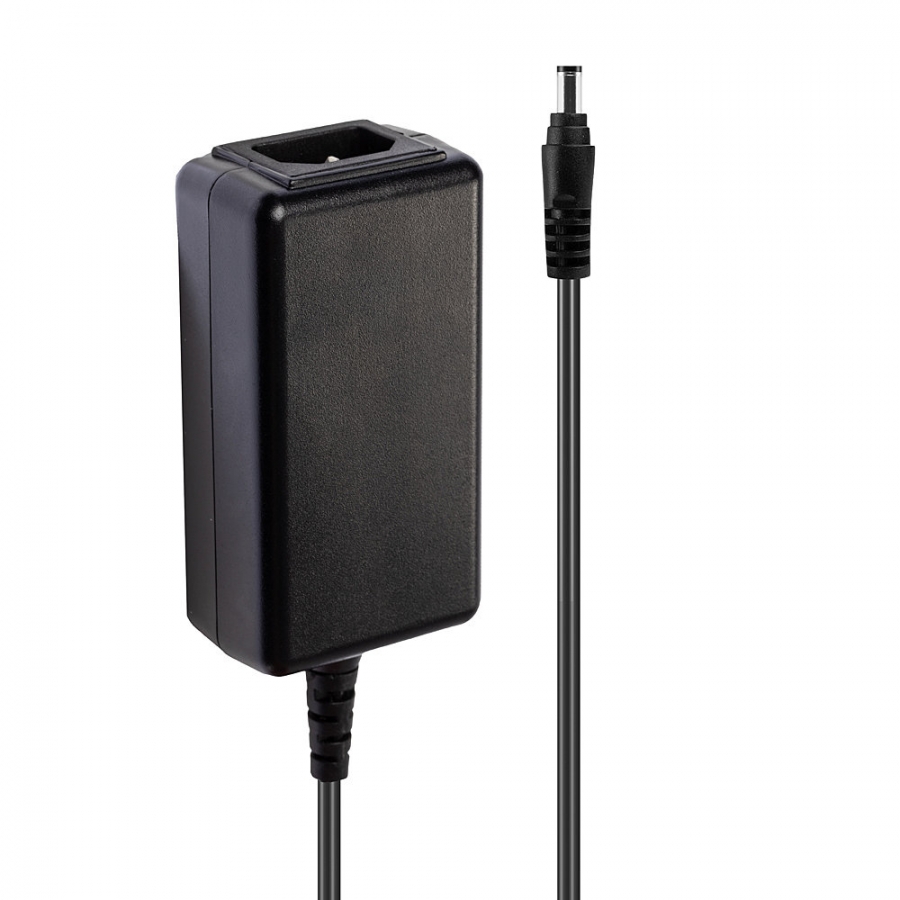

Lindy 5VDC 4A IEC C14 Power Supply, 5.5/2.5mm

Specifications

• Input Voltage: 100…240VAC
• Input AC Frequency: 50…60Hz
• Output Voltage: 5V
• Output Voltage Accuracy: ±5%
• Output Current (max.): 4A
• Output Power: 20W
• Average active efficiency: 0.8308
• Efficiency at low load (10%): 0.7424
• No-load Power Consumption: 0.1W

Physical Properties

• Dimensions (approx.) WxDxH: 50.4x85.8x32.9mm (1.98x3.38x1.3in)
• DC Cable Length: 1.2m (3.94ft)
• DC Connector Size: 5.5/2.5mm
• Housing Material: Plastic
• Net Weight: 0.167kg (0.37lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Operating Humidity: 0 - 75% RH (Non-condensing)
• Storage Humidity: 0 - 95% RH (Non-condensing)
• Colour: Black

Miscellaneous

• Manufacturer Name: Powertron
• Commercial Registration No. : 91441900082613400
• Manufacturer Address: 6F, No.115, Lide St., Zhonghe Dist., New Taipei City 23556,Taiwan
• Manufacturer Model No.: PA1024-050T1A400
• Packaging Type: Carton Box
• Packaging Dimensions: 140x40x120mm (5.51x1.57x4.72in)
• Gross Weight: 0.199kg (0.44lb)
• Warranty (Years): 2
• Certificated: EMC
• LVD
• ErP
• UL
• CCC
• RCM
• PSE
• RoHS
• REACH
• California Proposition 65

Package Content

• IEC C14 Power Supply
• Lindy Manual

Purchasing Information

• No.: 73817
• EAN: 4002888738170
