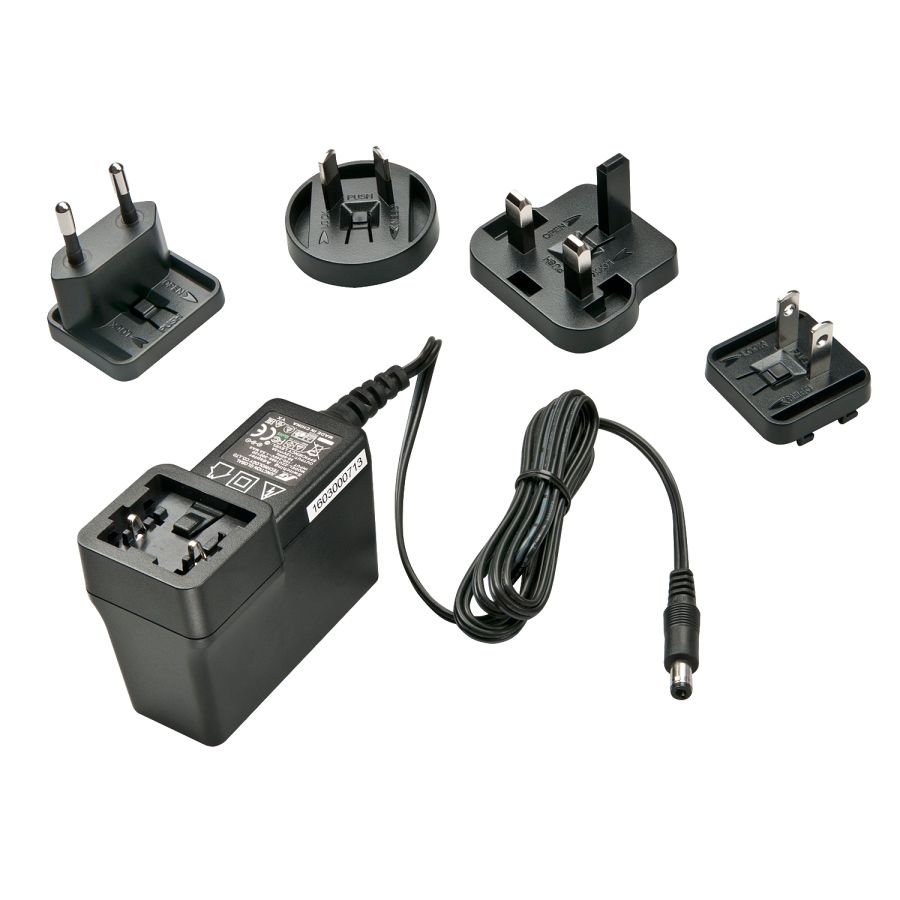

12VDC 3A Multi-country Power Supply, 5.5/2.1mm

Specifications

• Input Voltage: 100…240VAC
• Input AC Frequency: 50…60Hz
• Output Voltage: 12V
• Output Voltage Accuracy: ±5%
• Output Current (max.): 3A
• Output Power: 36W
• Average active efficiency: ≥87.4%
• Efficiency at low load (10%): Yes
• No-load Power Consumption: ≤0.1W

Physical Properties

• Dimensions (approx.) WxDxH: 75x38x58mm (2.95x1.5x2.28in)
• DC Cable Length: 1.35m (4.43ft)
• DC Connector Size: 5.5/2.1mm
• Housing Material: Plastic
• Net Weight: 0.21kg (0.46lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Operating Humidity: 0 - 80% RH (non-condensing)
• Storage Humidity: 0 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Manufacturer Name: Junction Global
• Commercial Registration No. : 7144190005072259
• Manufacturer Address:

Hengling Street

Keji Middle Road

Shijie Town

Dongguan City

Guangdong Province

China

• Manufacturer Model No.: ZZU1588-300120
• Packaging Type: Carton Box
• Packaging Dimensions: 140x120x40mm (5.51x4.72x1.57in)
• Gross Weight: 0.265kg (0.58lb)
• Warranty (Years): 2
• Certificated:

EMC

LVD

ErP

UL

CCC

RCM

PSE

RoHS

REACH

California Proposition 65

Package Content

• Multi-country Power Supply
• UK, EU, US & AUS Adapters
• Lindy Manual

Purchasing Information

• No.: 73806
• EAN: 4002888738064
