> >>Delock Connector DC 5.5 x 2.5 mm with 12.0 mm length male
Delock Connector DC 5.5 x 2.5 mm with 12.0 mm length male
Previous Next

Delock Connector DC 5.5 x 2.5 mm with 12.0 mm length male

DELOCK

89916

New

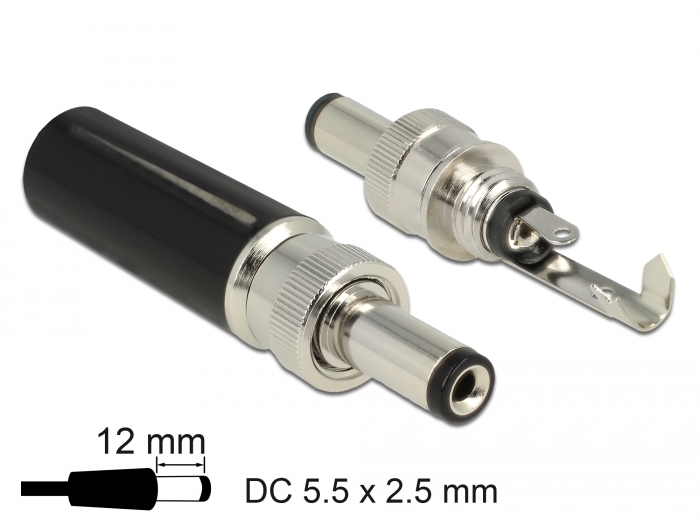

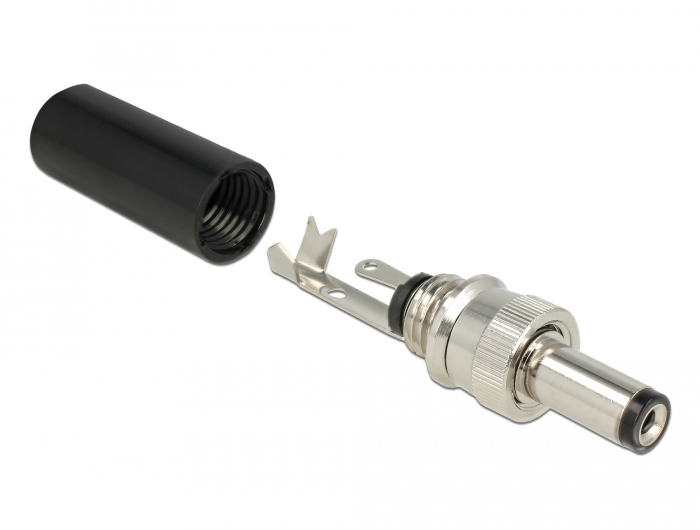

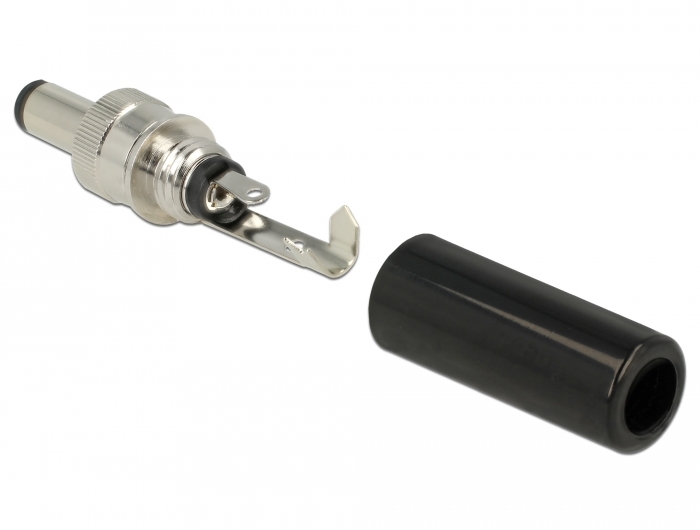

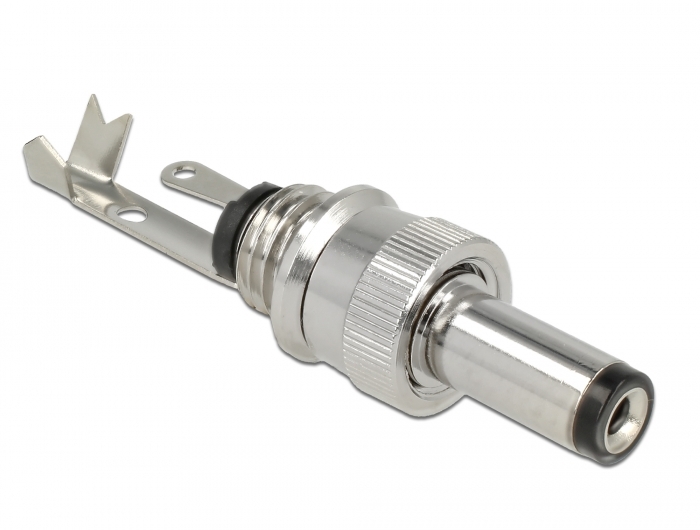

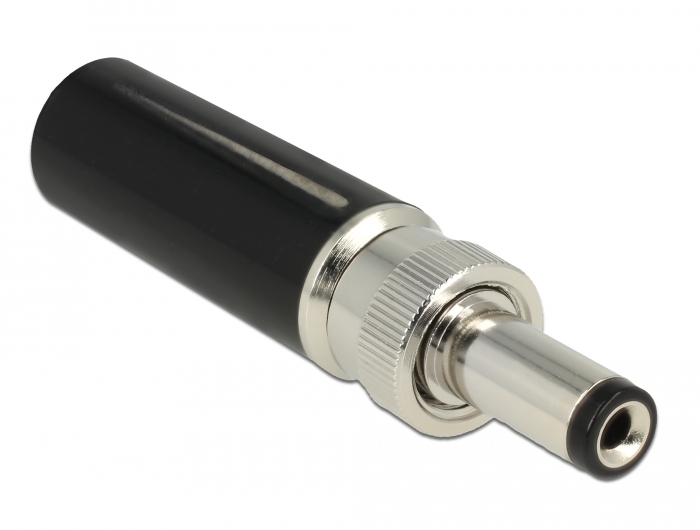

This DC connector by Delock is made for soldering to a cable and can be used for connection of different devices with 5.5 x 2.5 mm DC jack. The screw type connector on the plug supports a tight connection with the suitable DC jacks by Delock e.g. item 89911.
System requirements:
• A free DC female port 5.5 x 2.5 x 12.0 mm
Specification:
• Connectors:
  1 x DC 5.5 x 2.5 x 12.0 mm male >
  1 x solder connection
• Dielectric force: AC 500 V / 1 minute
• Isolation resistance: 100 MΩ / min. (500 V DC)
• Voltage: max. 18 V
• Current: max. 2 A
• Length: ca. 41.0 mm
• Diameter: ca. 10.6 mm
Package content:
• DC connector
