Delock Connector DC 5.5 x 2.1 x 9.5 mm female bulkhead

Delock Connector DC 5.5 x 2.1 x 9.5 mm female bulkhead

DELOCK

89910

New

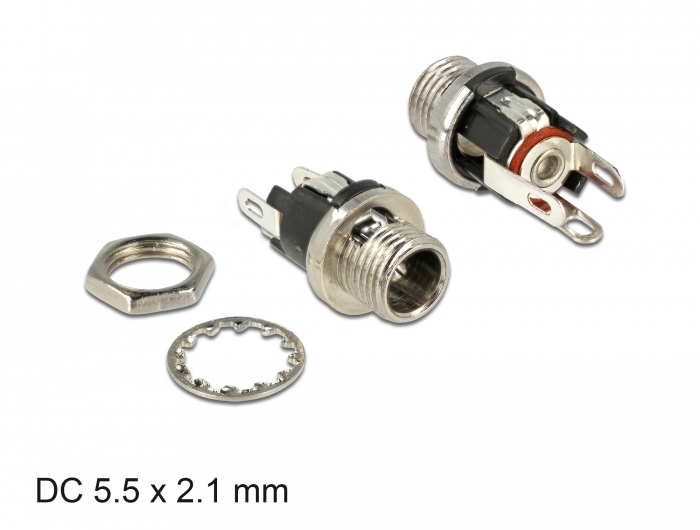

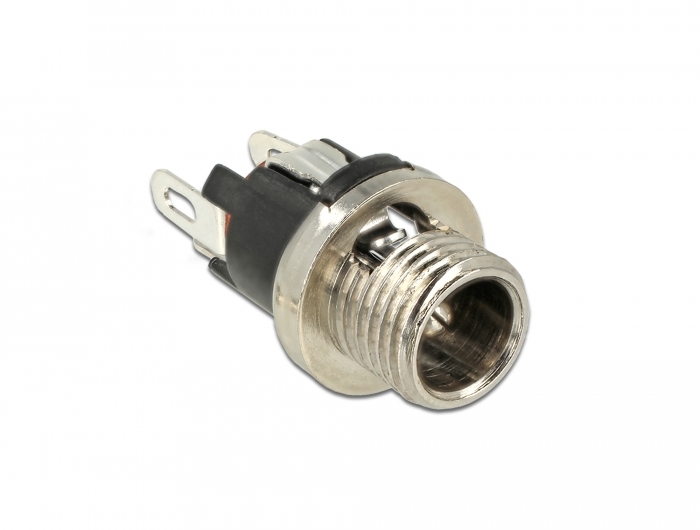

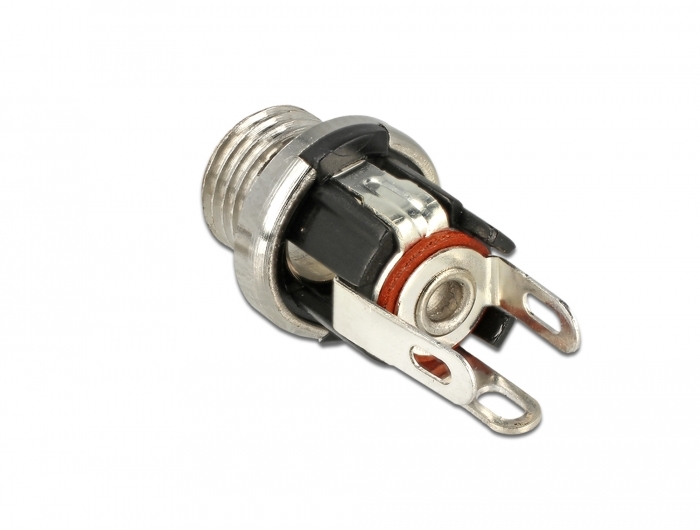

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification:
• Connectors:
  1 x DC 5.5 x 2.1 x 9.5 mm female >
  3 x solder connection
• Plastic shell: PA66
• Pin: copper nickel plated
• Thread type: 5/16" x 32W
• Mounting depth: ca. 15.5 mm
• Mounting hole diameter: ca. 11.0 mm
• Visible height when installed: ca. 5.7 mm
Package content:
• DC female bulkhead
Data sheet:
http://www.delock.de/produkt/89910/pdf.html?sprache=en
