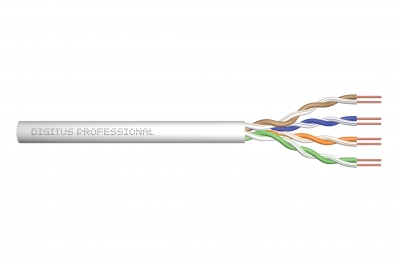

Digitus ASSNET100 Cat.5e U/UTP installation cable, 305 m, Eca

Digitus

ACU-4511-305

New

ASSNET100 CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 23/1, 305 m paper box, sx, grey

The ASSNET installation cables assure best performance and link quality for your network

1GBit Ethernet
100 Mhz transmission frequency
CPR class Eca

The ASSNET100 Cat.5e U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 CCA wires and reaches a transmission frequency up to 100 MHz. The PVC jacket is conform to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area.

Assortment: Twisted Pair Installation Cables
Category: CAT 5e
Shielding: U-UTP, unshielded
CPR: Eca
Length: 305 m
Color: grey
Jacket: PVC
Structure: 4 x 2 AWG 24/1, solid twisted pair
Physical properties:
Conductor: Copper covered aluminum, solid AWG 24/1
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: None
Outer sheat: Eca acc. to EN 50575; PVC
Outer sheath diameter (nominal): 0,50 mm nominal
Outer sheath color: Grey (RAL 7035)
Mechanical Properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C
Electrical Properties:
Impedance: 100±15 Ohm @ 1-100 MHz
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 2 GOhm x km min.
DC loop resistance: 262 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 3
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,b" acc. to EN 50174-2
Maximum operating length: 60 m
NVP: 69%

Platums(cm)35
Grums(cm)20
Augstums(cm)35.5
Svars(kg)7.6
Tilpums(cm3)24850
Izcelsmes valstsCN

Cat.5e installation cable
