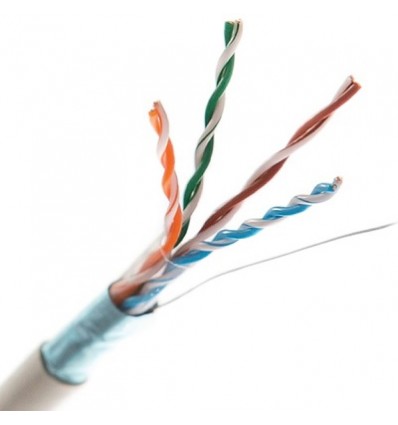

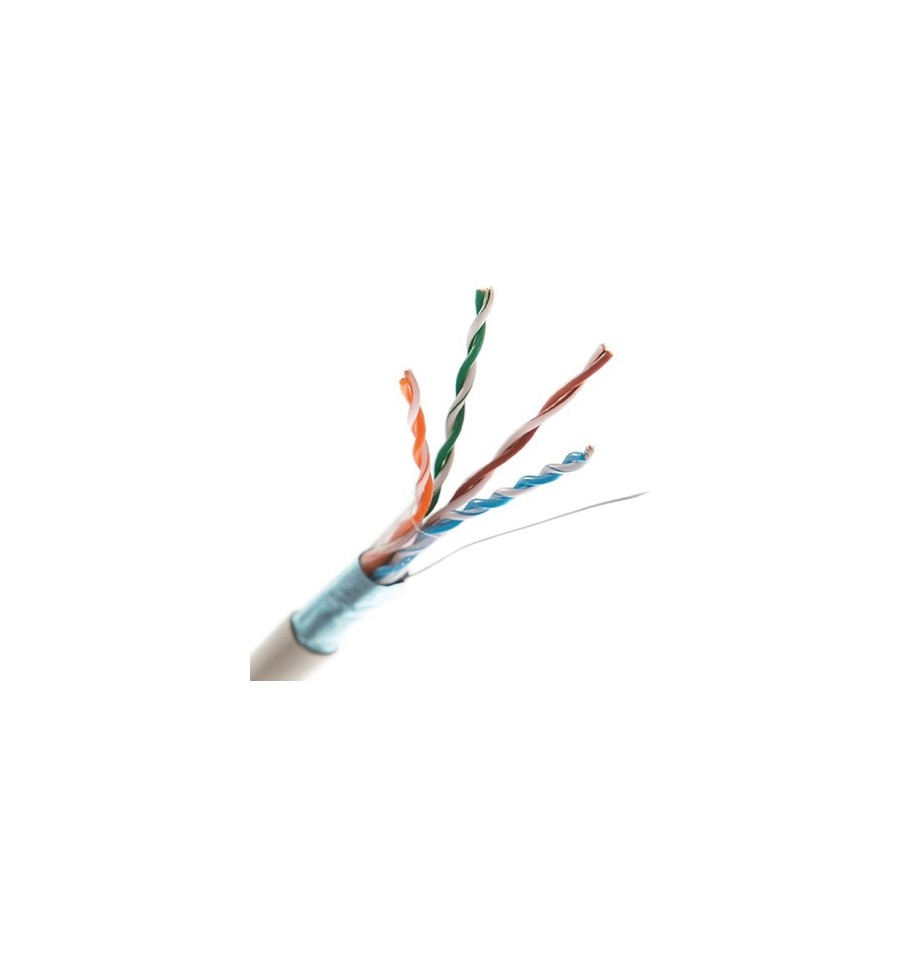

Cable F/UTP Cat.5e PVC CU, 305m, gray

SecurityNET

SEC5EFTP

New

DESCRIPTION
SecurityNET twisted pair cable installation is designed to make connections between distribution points multimedia signals and junction boxes users.
FTP twisted pair cable (shielded) is ideal for installation in computer networks, telephone systems, CCTV, etc., Are exposed to electromagnetic interference.

More details

DESCRIPTION
SecurityNET twisted pair cable installation is designed to make connections between distribution points multimedia signals and junction boxes users.
FTP twisted pair cable (shielded) is ideal for installation in computer networks, telephone systems, CCTV, etc., Are exposed to electromagnetic interference.
The use of the screen minimizes interference that may occur, eg. When placed in a common cable tray with cable current. It has an outer coating of PVC.
The cable meets the requirements of structured cabling ISO / IEC 11801, EN 50173, EIA / TIA 568-B.2.
"
PRODUCT FATURES "
for indoor use, "
high quality (cable made of copper) "
test, measurement made on the section of 90m using the Fluke Networks DTX-1800, "
fulfills the requirements of Cat5e FTP "
Also available in version 5e UTP, 6 UTP and FTP 6.

TECHNICAL DATA "
Category 5e FTP "
cable design: 4x2, "
vein thickness: 0,511mm, "
execution cores: copper wire [Cu] "
Insulation: HDPE 1,02mm, "
Screen: aluminum foil, "
coating thickness: 0,550mm, "
the outer diameter of the shell: 6,30mm PVC, "
1-100MHz impedance in the range of 100 "
max. 1-100MHz resistance in the range of 9.5 (? / 100m), "
NVP: 69% "
Shew Delay (ns / 100m): 45, "
color: gray, "
the amount in the package: 305m, 500m.

Cat.5e installation cable
