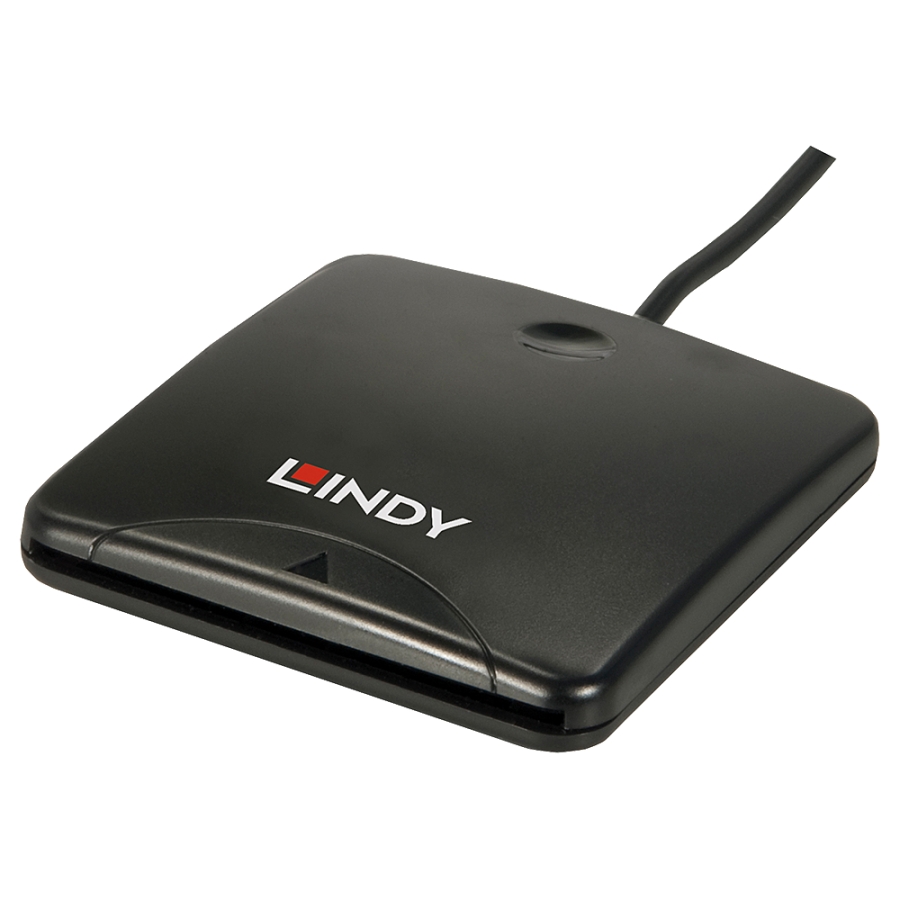

Lindy USB 2.0 Smart Card Reader for ID

Specifications

• • USB Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Chipset: Realtek 5169
  • Compatibility: USB Type A equipped computers
  • Power Delivery: -
  • Special Features:
    • Compliant with EMV 4.1 specification
    • Supports PC smart card industry standard PC/SC 1.0, PC/SC 2.0
    • Supports 1.8V, 3V/5V cards
    • Supports asynchronous cards: protocols T0, T1
    • Supports synchronous cards: 2-wire, 3-wire, I2C Memory Cards: SLE4418/28, SLE4432/42, AT88sc1608/153, AT24c128/256, ST M14C16/M14C04

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 1x Smart Card slot (PC/SC 1.0/2.0)
• Power: -

Physical Properties

• Dimensions WxDxH: 69x62x16mm (2.72x2.44x0.63in)
• (Fixed) Cable Length: 1.5m (4.92ft)
• Housing Material: Plastic
• Net Weight: 0.06kg (0.13lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)
• Humidity:  10 - 85% RH (non-condensing)
• Power Requirements: Bus-powered
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 130x125x15mm (5.12x4.92x0.59in)
• Gross Weight: 0.084kg (0.19lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH

Package Contents

•  USB 2.0 Smart Card Reader

Purchasing information

• No.: 42768
• EAN: 4002888427685
