Delock 5.25″ USB 3.0 Card Reader 5 slot + 4 port USB 3.0 Hub incl. V / A indicator and fan control

Reference 91494

Condition: New

More info

Description

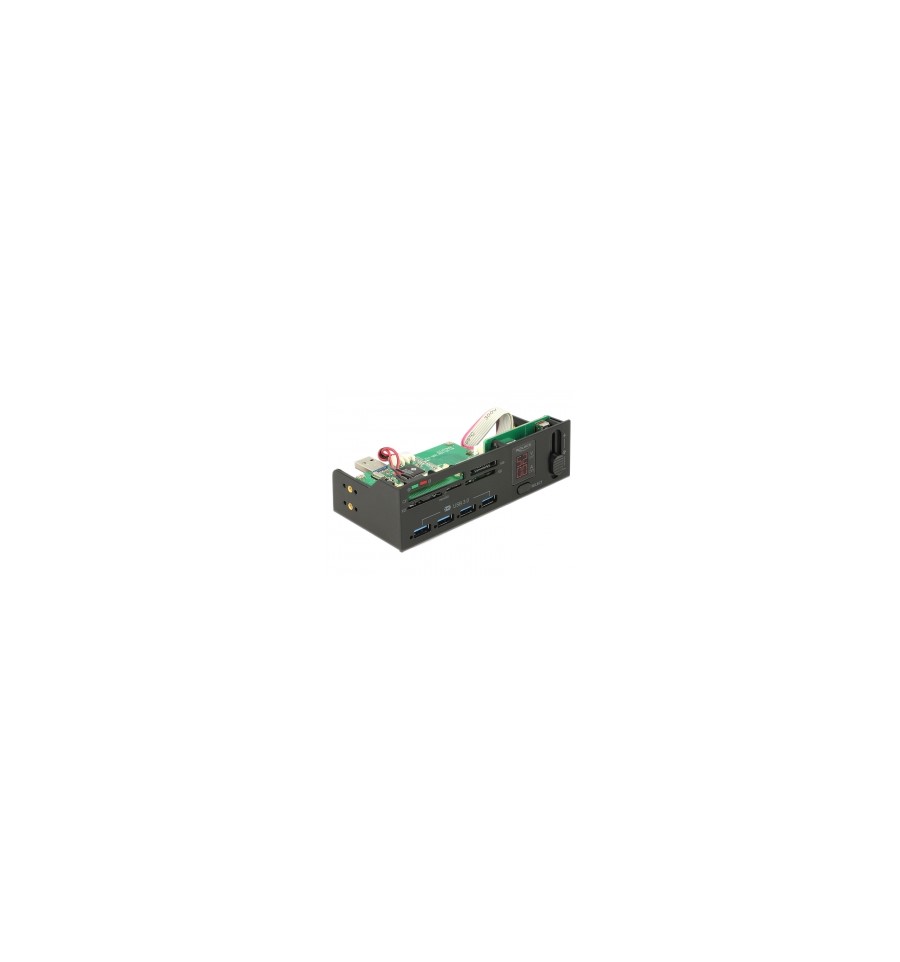

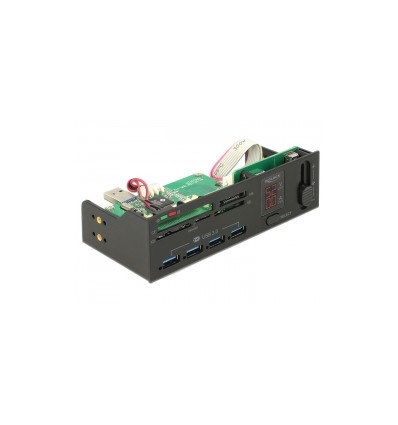

This card reader by Delock can be installed into a 5.25″ bay of a PC and will be connected to an internal USB 3.0 pin header male port. It has a 5 slot card reader and enables the connection of up to four USB devices, which the USB 3.0 hub provides. The LED display indicates the current rating and voltage values of the connected USB devices. In addition, the card reader has a slider for fan control.

Specification
• Connector:
external:
    5 x Card Reader slots
    4 x USB 3.0 Type-A female
internal:
    2 x USB 3.0 Type-A male
    1 x 4 pin power connector
    1 x 3 pin fan pin header male
• 1 slider for fan control
• 1 push button to select the USB port, which indicates voltage (V) and current (A)
• Chipset: GL3522 (Hub), GL3223 (Card Reader)
• Plastic housing for installation into a 5.25″ bay
• Data transfer rate up to 5 Gb/s
• 4 port USB 3.0 hub supports USB Battery Charging BC 1.2 specification
• LED indicator for the card reader for power (green) and access (red)
• Cable data:
2 x USB 3.0 Type-A female to 1 x 19 pin USB 3.0 pin header female
        ca. 58 cm (incl. connector)
1 x 4 pin power cable ca. 33 cm (incl. connector)
• Hot Swap, Plug & Play

• Supports following memory cards:

Slot 1 Compact Flash / Micro Drive	CF I, CF II, CF Extreme, CF Extreme III, CF Extreme IV, Micro Drive
Slot 2 Memory Stick	MS, High Speed Memory Stick (HS MS), MS PRO, MS PRO-HG, Memory Stick XC, MS Duo, MS PRO Duo, MS PRO Duo Mark2, MS PRO-HG, MS PRO-HG Duo, MS PRO-HG Duo HX, MS Micro, MS PRO Micro, MS-HG Micro, MS XC-HG Micro, M2*
Slot 3 xD	xD, xD type M, xD type H
Slot 4 Micro SD	microSD, Micro SDHC, Micro SDHC Ultra, T-Flash
Slot 5 Secure Digital / Multi Media Card	SD, SD Ultra, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, SDXC Ultra, MMC, miniSD, MMCmobile, RS-MMC

*Adapter is required

System requirements
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.7
• PC with one free 5.25″ bay
• Mainboard with a free 19 pin USB 3.0 pin header male
• Power supply with a free 4 pin power connector
• Fan with a free 3 pin fan control connection cable

Package content
• 5.25″ Card Reader
• 2 x cable
• Screws
• User manual

Package
• Retail Box
