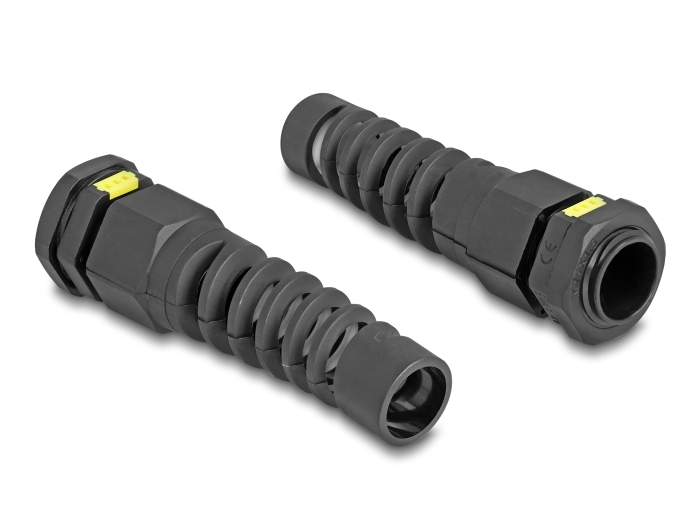

Delock Cable Gland M16 with ventilation and strain relief IP68 dust and waterproof black 2 pieces

Reference 60625

Condition: New

More info

This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes.

With Ventilation

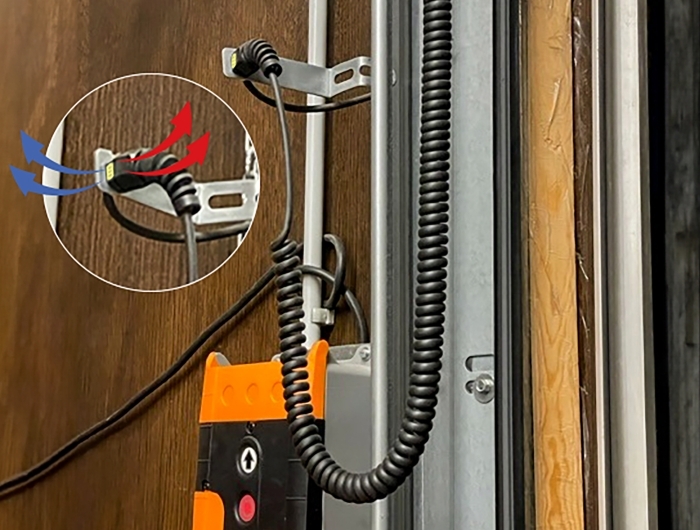

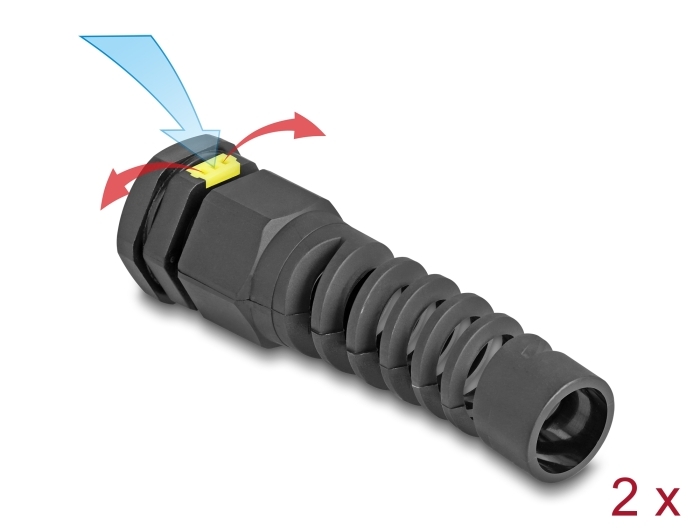

The integrated holes ensure permanent pressure and air equalisation and prevents the formation of condensation.

Additional protection through strain relief
Due to the bend protection spiral, the flexible cables are secured and protected from excessive bending, e.g. in the case of moving machine parts.

IP68 dust and waterproof
The cable gland also offers increased protection against dirt and moisture.

Multifunctional application
The robust design is ideal for use in automation, the robotics industry and machinery.

Specification:
• Thread size: M16
• Thread length: 9 mm
• Spanner width: 22 mm
• With Ventilation and strain relief
• Protection class: IP68
• Cable diameter:
min.: 4 mm
max.: 8 mm
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic
• Colour: black RAL9005

Package content:
• Cable gland

Data sheet:
http://www.delock.de/produkt/60625/pdf.html?sprache=en
