LINDY 150m Toslink & Coaxial Digital Audio Extender

Reference 70456

Condition: New

More info

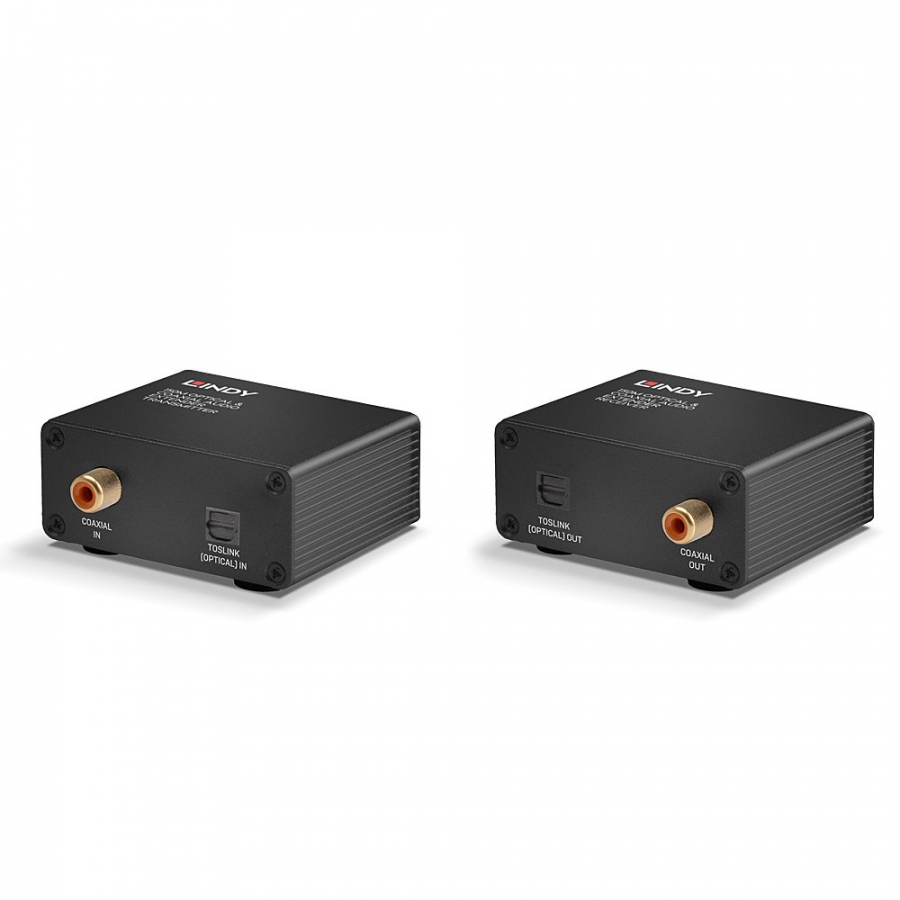

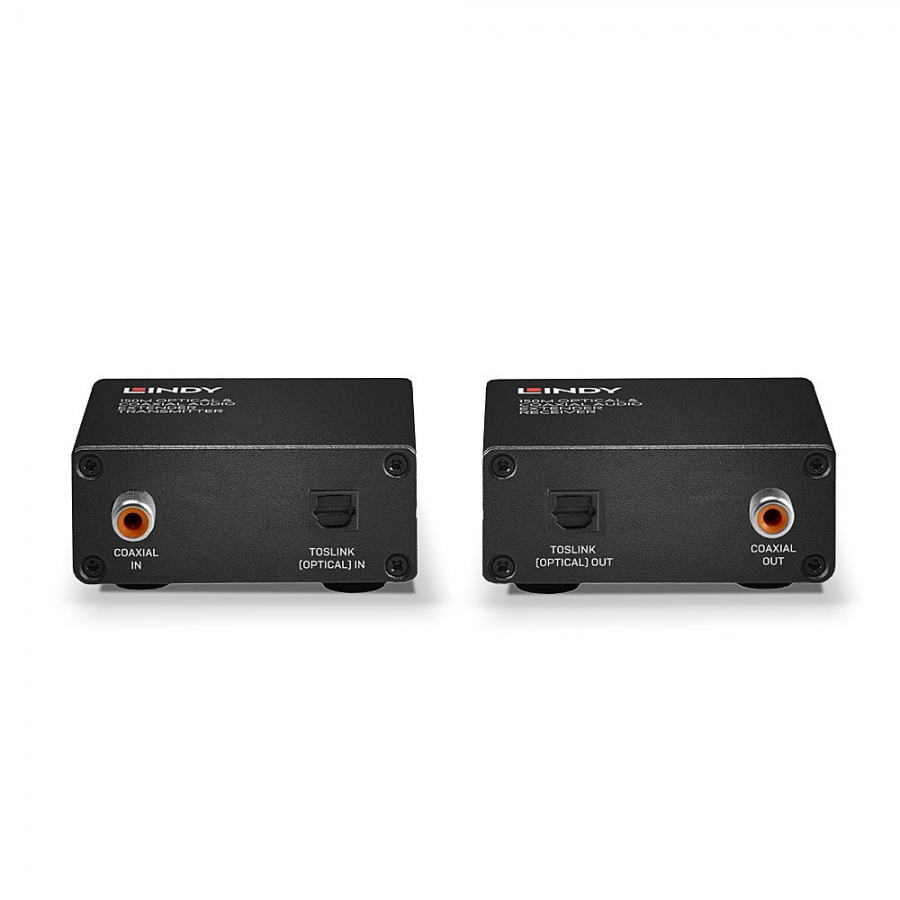

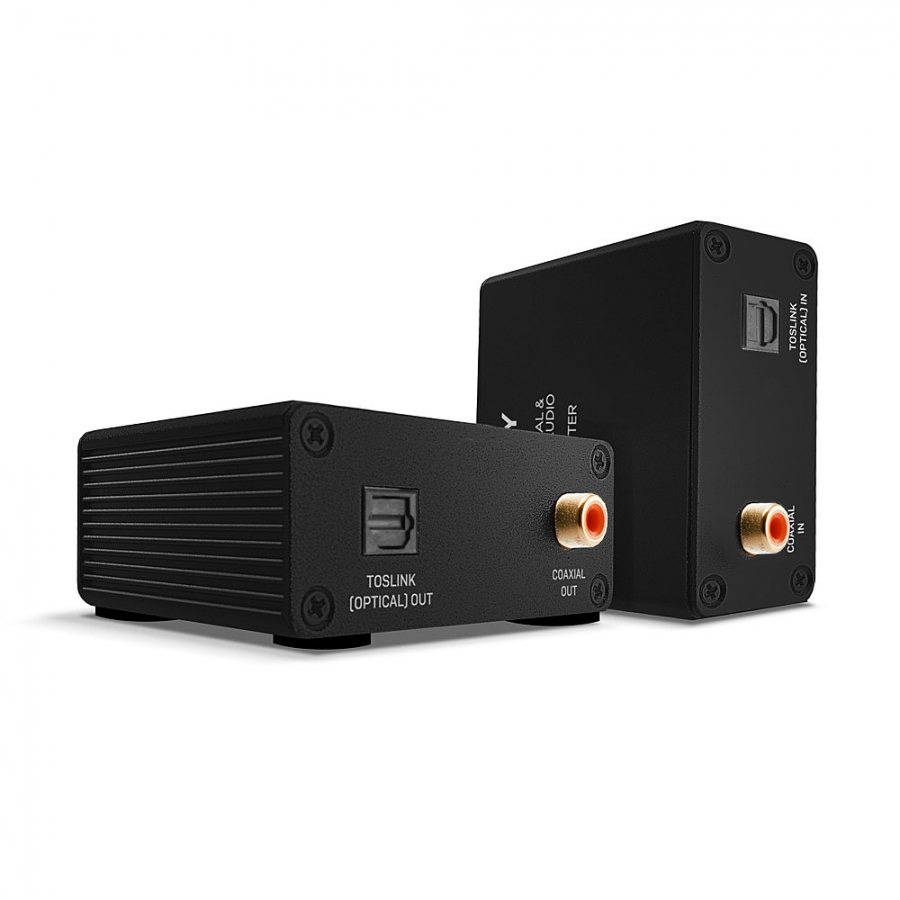

Extends TosLink (Optical) & coaxial digital audio up to 150m over network cable Supports stereo and multi-channel audio formats including Dolby Digital & DTS Supports PoC (Power over Cat Cable) from the transmitter to receiver Simultaneous audio output 2 year warrantyThe Lindy 150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side. Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.Please note: simultaneous output is only possible when identical 96KHz sample rates are used

Type	AV transmitter & receiver
Cable types supported	Cat5e, Cat6
Maximum transfer distance	150 m
Chipset	EL5171/ EL5172
Audio formats supported	DTS, LPCM
Material	Metal
Product colour	Black
Certification	CE, FCC, RoHS, REACH & California Proposition 65
Connectivity technology	Wired

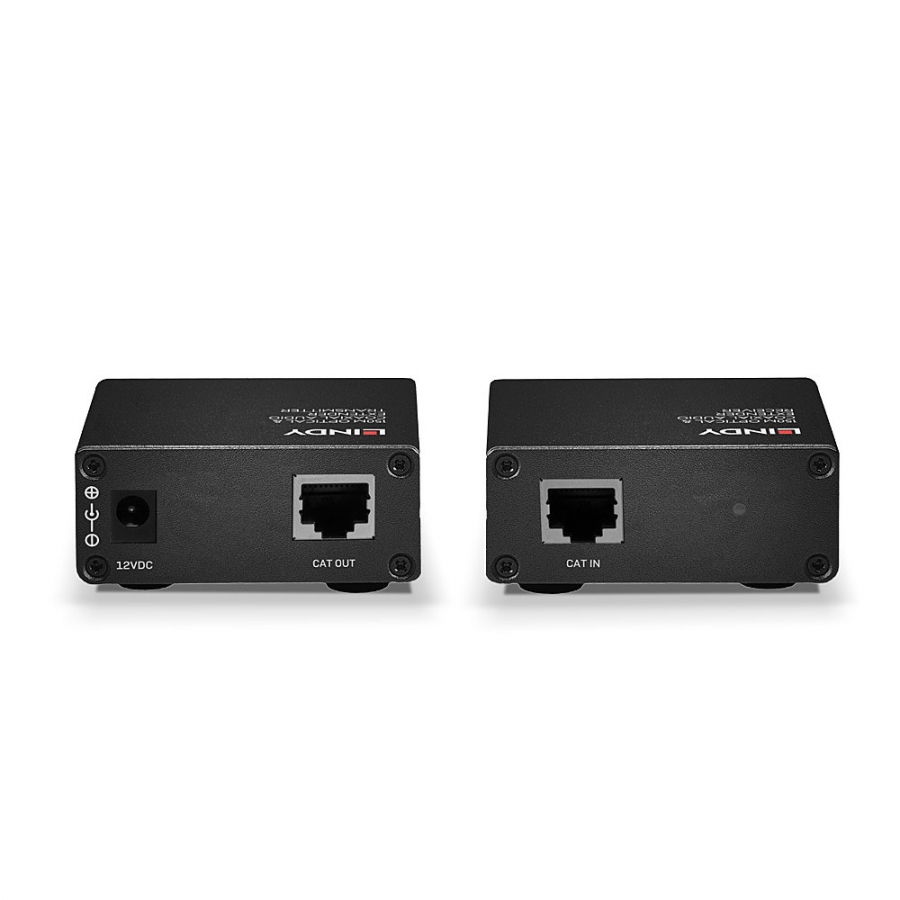

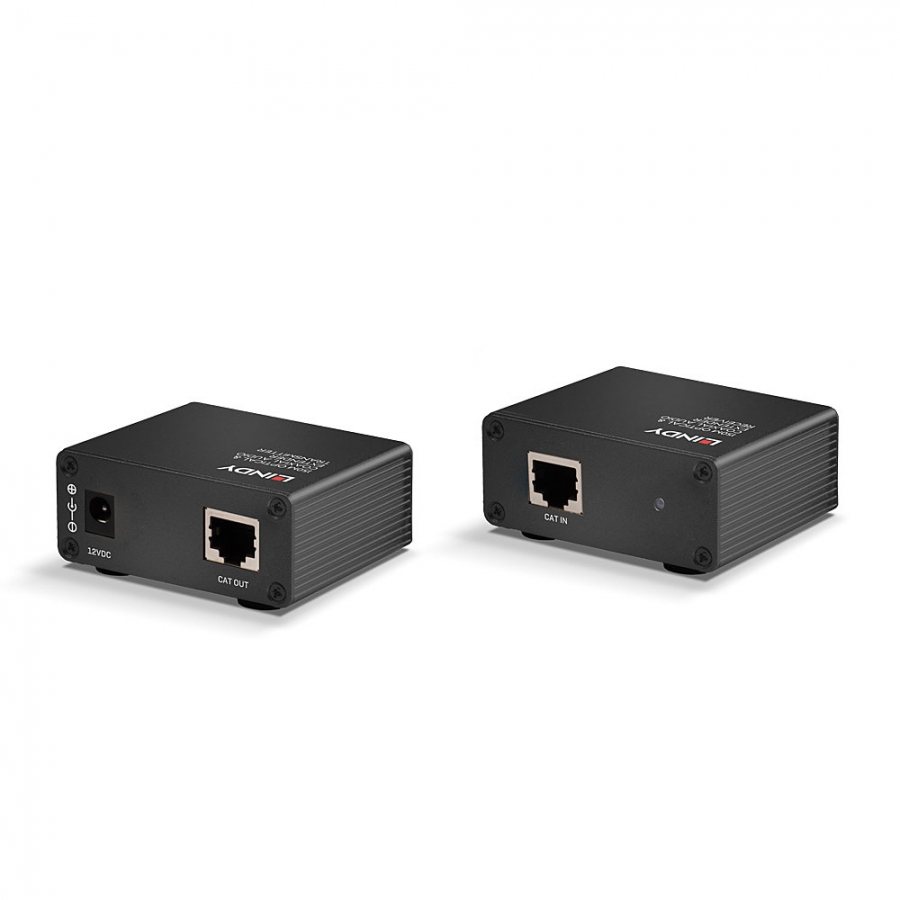

RJ-45 input ports	1
RJ-45 output ports	1
Digital audio coaxial in	1
Digital audio coaxial out	1
Digital audio optical in	1
Digital audio optical input type	TOSLINK
Digital audio optical out	1
DC-in jack	Y
Operating voltage (transmitter)	12 V
Current	1.25 A
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Receiver dimensions (WxDxH)	65.9 x 26.9 x 53.1 mm
Receiver weight	168 g
Transmitter dimensions (WxDxH)	65.9 x 26.9 x 53.1 mm
Transmitter weight	168 g
Package width	190 mm
Package depth	60 mm
Package height	145 mm
Package weight	405 g
Package type	Box
AC adapter included	Y
Included power plug types	EU, UK, US
Manual	Y
Sustainability certificates	RoHS
