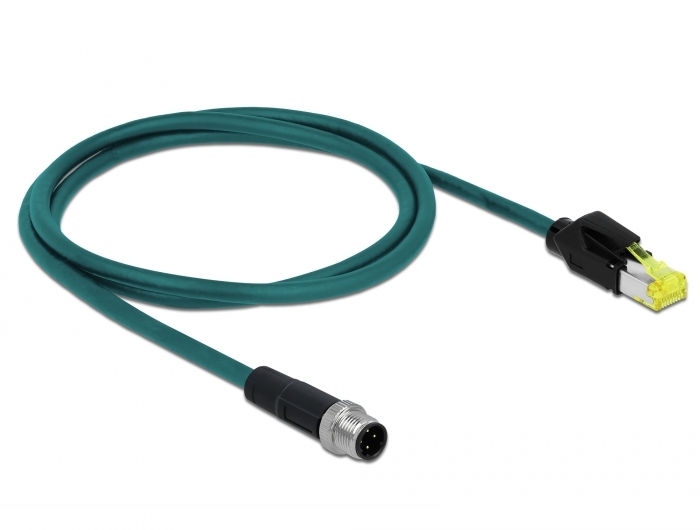

Delock Network cable M12 4 pin D-coded to RJ45 Hirose plug TPU 1 m

Reference 85441

Condition: New

More info

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Durable TPU cable jacket
The material of the cable jacket makes the cable flexible and durable, making it suitable for use in drag chains and harsh environments.

The cable is oil and UV resistant and meets the high requirements for industrial applications.

System requirements:
• A free M12 female port
• A free RJ45 jack

Specification:

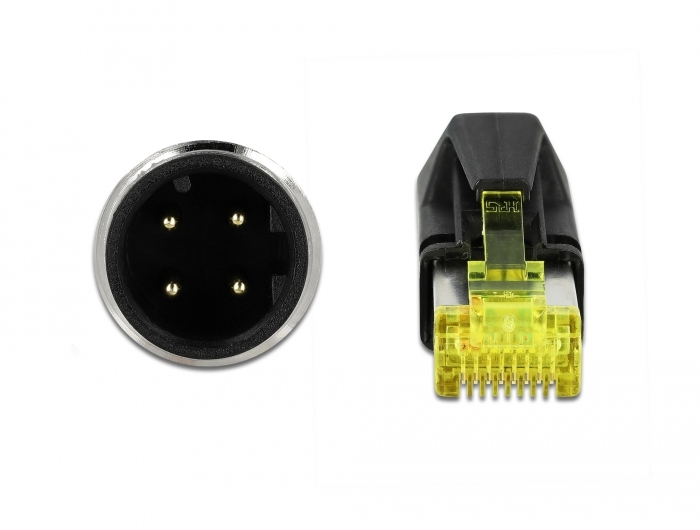

• Connectors:
  1 x M12 male 4 pin D-coded >
  1 x RJ45 Hirose plug

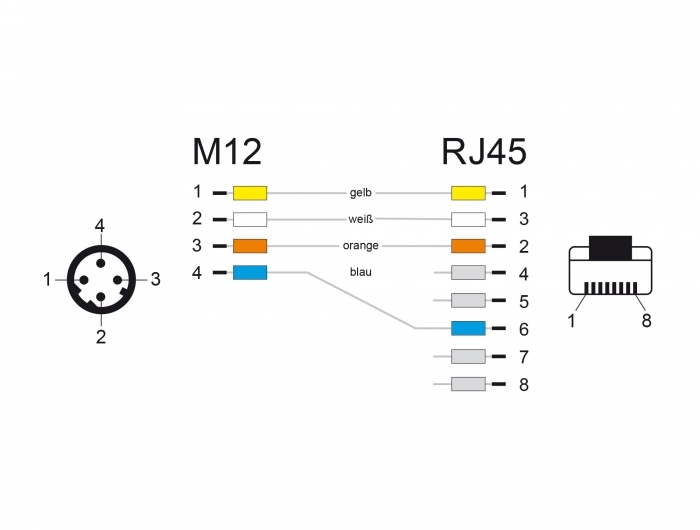

• Pin assignment according to PROFINET standard
• Suitable for drag chains
• SF/UTP
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Copper cable
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.4 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
  32 mm with fixed installation
  64 mm with flexible installation
• Oil-resistant according to DIN EN 60811-2-1
• UV-resistant
• LS0H (halogen-free)
• Flammability class: FT2
• Operating temperature: -20 °C ~ 80 °C
• Protection class: IP20
• Colour: water blue

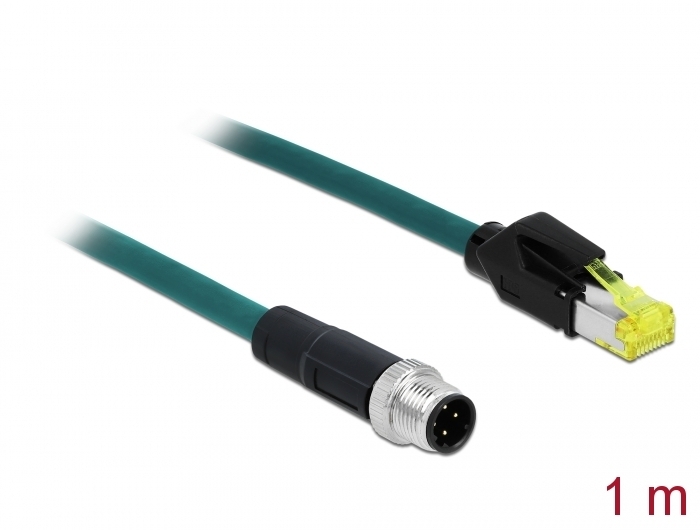

• Length incl. connectors: ca. 1 m

Package content:
• Patch cable

Data sheet:
http://www.delock.de/produkt/85441/pdf.html?sprache=en
