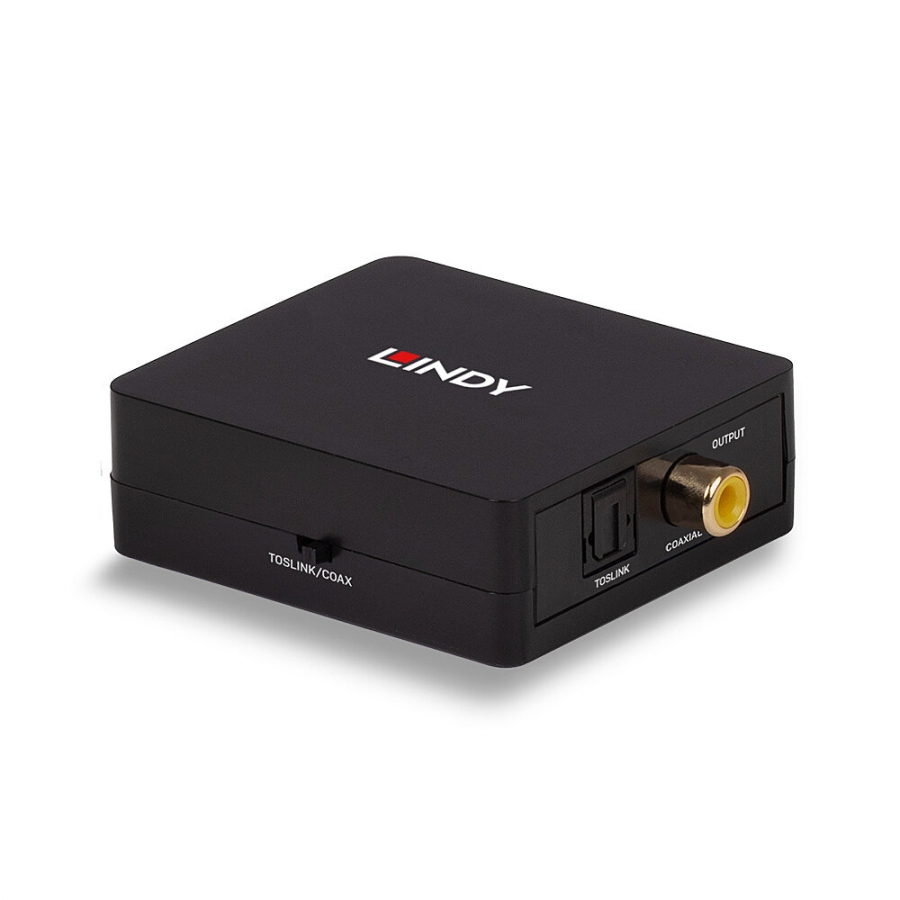

Lindy 2-way Digital SPDIF Audio Converter

Specifications

• Video Interface: -
• Interface Standard: -
• Supported Bandwidth: -
• Maximum Resolution: -
• HDCP Support: -
• Audio Interface: Toslink (Optical), SPDIF
• Chipset: MIC-74HC04
• Supported Audio: LPCM 2.0, DD 2/5.1, DTS 5.1
• Maximum Supported Audio Sample Rate: 192kHz
• Input Impedance: 75 ohm
• Output Impedance: 75 ohm
• Output Voltage: 1VRMS
• Frequency Response: ±0.5dB
• Signal to Noise Ratio: 142dB
• Special Features: -

Connectors

Input:

• Toslink (Optical)
• SPDIF (Coaxial)

Output:

• Toslink (Optical)
• SPDIF (Coaxial)

Power: Mini USB

Physical Properties

• Dimensions (approx.) WxDxH 60.5x54x20.5mm (2.38x2.12x0.80in)
• Housing Material Plastic
• Net Weight 0.04kg (0.08lb)
• Operating Temperature 0°C - 40°C (32°F - 104°F)
• Storage Temperature -20°C - 60°C (-4°F - 140°F)
• Humidity 20-90% RH (non-condensing)
• Power Requirements 5VDC 1A
• Colour Black

Miscellaneous

• Packaging Type Carton Box
• Packaging Dimensions 133x105x24mm (5.23x4.13x0.94in)
• Gross Weight 0.08kg (0.17lb)
• Warranty (Years) 2
• Certificated CE, UKCA, FCC, RoHS and REACH

Package Contents

• Coaxial/Optical Audio Converter
• USB Power Cable
• LINDY Manual

Purchasing Information

• No. 70457
• EAN 4002888754576
