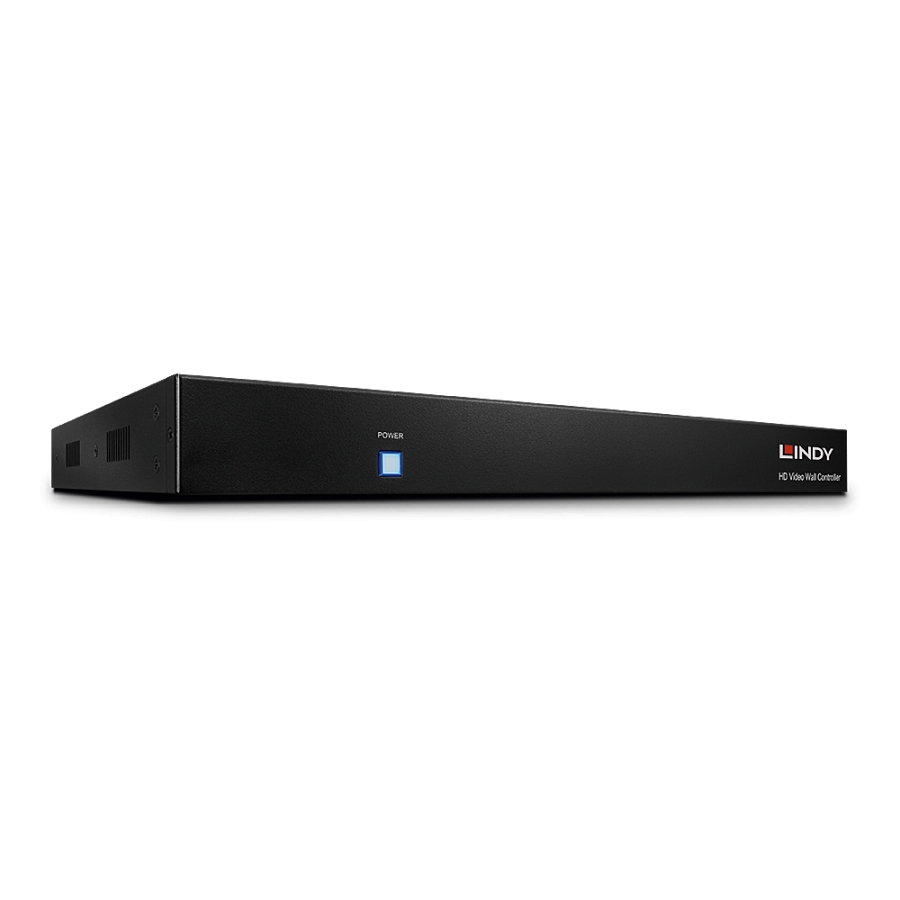

Lindy 4 Port HDMI Video Wall Scaler

Lindy

LIN38134

New

Specification

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.3
  • Supported Bandwidth: -
  • Maximum Input Resolution: 1920x1080@60Hz
  • Maximum Output Resolution: 1920x1080@60Hz
  • HDCP Support: 1.4
  • Supported Audio:  Audio Pass Through
  • Separate Audio Ports: HDMI
  • Special Features: Supports RS232 and RJ-45 Control



Connectors

  • Input: 1 x HDMI (Female)
  • Output: 4 x HDMI (Female)
  • Power: 5.5/2.1mm DC socket

Physical Properties

  • Dimensions WxDxH: 436x247x44mm (17.17x9.72x1.73in)
  • Housing Material: Metal
  • Net Weight: 3.138kg (6.92lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 3A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 565x385x100mm (22.24x15.16x3.94in)
  • Gross Weight: 3.837kg (8.46lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH & RoHS



Package Contents

  • HDMI 1:4 Video Wall Controller Scaler
  • Mounting kit
  • Multi-Country Power Supply(EU, UK, US & AUS)
  • Lindy Manual & QIG



Purchasing Information

  • No.: 38134
  • EAN: 4002888381345
