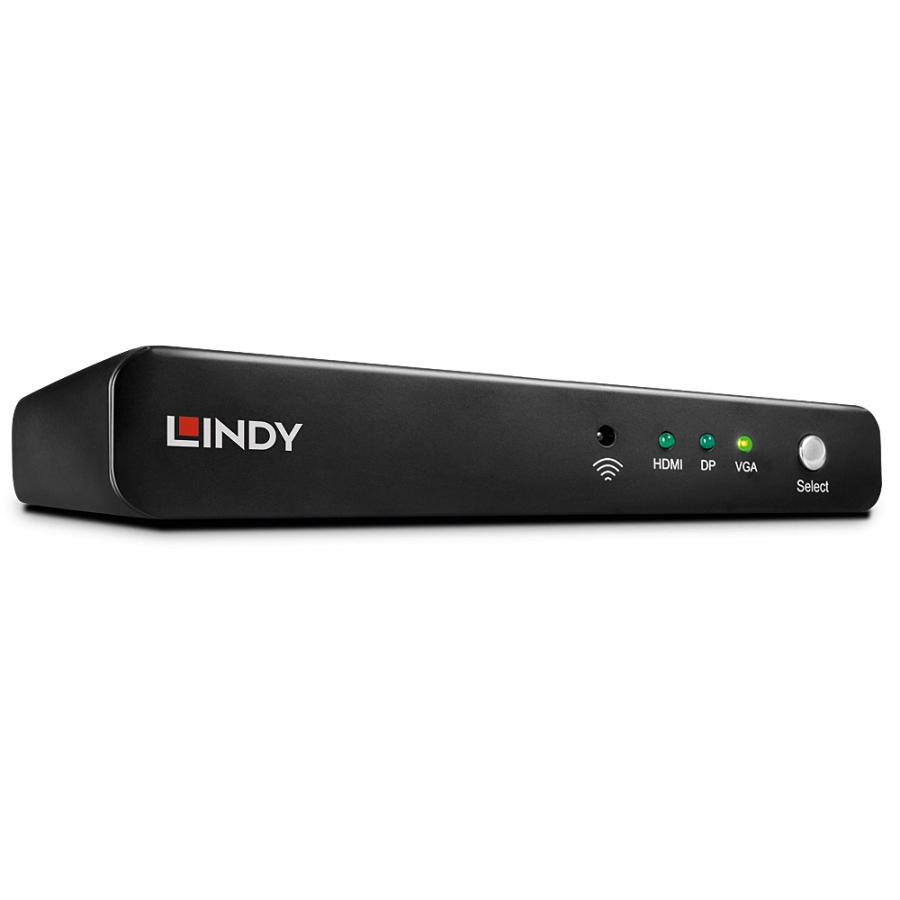

3 Port Multi AV to HDMI Presentation Switch

LIN38272

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supports Bandwidth: 18 Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio: Audio Pass-through, Stereo Audio
  • Separate Audio Ports: 3.5mm
  • IR Support: -
  • CEC Support: -
  • Serial Interface: -
  • Special Features: -



Connectors

  • Input: DisplayPort (Female), HDMI (Female), VGA (Female), 3.5mm (Female)
  • Output: HDMI (Female)
  • Control: -
  • Power: 5.5/2.5mm DC socket



Physical Properties

  • Dimensions WxDxH: 155x72x25mm (6.1x2.83x0.98in)
  • Housing Material: Metal
  • Net Weight: 0.38kg (0.84lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 – 60% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 164x77x165mm (6.46x3.03x6.5in)
  • Gross Weight: 0.605kg (1.33lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • DP/HDMI/VGA to HDMI Presentation Switch
  • IR Remote Control with 1 x CR2025 battery
  • DisplayPort Cable
  • 2 x Mounting brackets
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38272
  • EAN: 4002888382724
