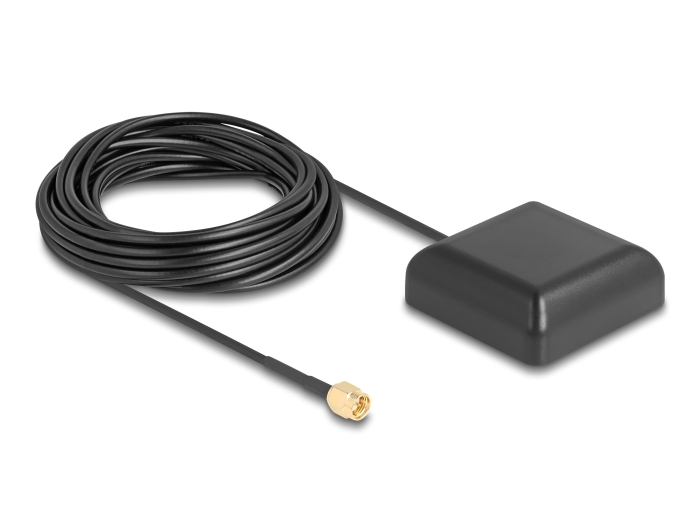

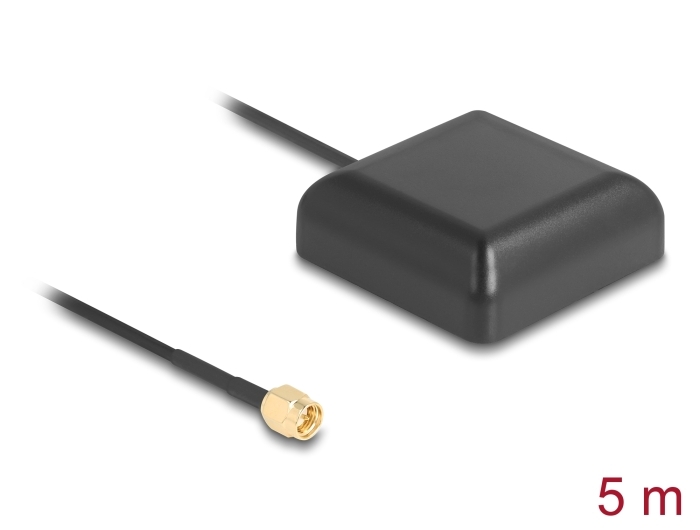

Navilock NL-203AA GNSS GALILEO GPS High Gain Antenna with SMA plug 5 m outdoor

Reference 60650

Condition: New

More info

This GNSS antenna by Navilock can be used with an existing GNSS receiver with SMA connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Connector finishing: brass gold plated
• External active additional antenna for GNSS receiver
• Internal patch antenna:
  Antenna gain: 5 dBic
  Bandwidth: > 20 MHz
  VSWR: 2.0
  Polarisation: RHCP
  Dimensions (LxWxH): ca. 25 x 25 x 4 mm
  Dimension ground plate metal (LxW): ca. 40 x 40 mm (PCB)
• LNA GNSS:
  Gain: 30 dB
  VSWR: 1.5
  Input voltage: 3.0 - 5.0 V
  noise figure: 1.5 @ 25 °C +/- 10 °C
• Frequency range: 1575.42 MHz +/- 1.02 MHz
• Impedance: 50 Ohm
• Operating temperature: -40 °C ~ 80 °C
• Protection class: IPX6
• Magnetic bottom
• Current consumption: ca. 10 mA @ 5.0 V
• Cable type: RG-174
• Cable attenuation: 5.70 dB
• Cable length: ca. 5 m
• Dimensions (LxWxH): ca. 50.6 x 50.6 x 15.1 mm

Package content:
• GNSS antenna

Data sheet:
http://www.navilock.de/produkt/60650/pdf.html?sprache=en
