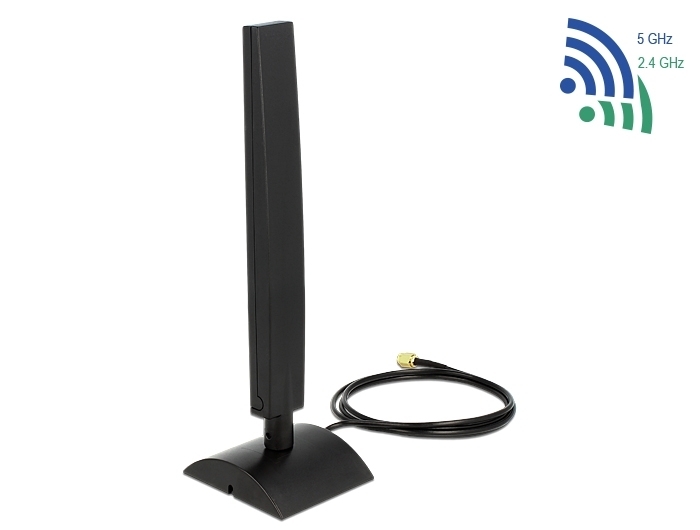

Delock WLAN 802.11 ac/a/h/b/g/n Antenna RP-SMA plug 4 - 6 dBi omnidirectional with magnetic base and connection cable black

Reference 88901

Condition: New

More info

This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals.

System requirements:
• Device with a free RP-SMA jack

Specification:
• Connector: RP-SMA plug
• Frequency range:
2.400 - 2.500 GHz
4.900 - 5.875 GHz
• Antenna gain:
4 dBi @ 2.400 - 2.500 GHz
6 dBi @ 4.900 - 5.875 GHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Horizontal beam angle: 360°
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 21.0 cm
• Features of the base:
magnetic on the bottom
rubberized bottom
wall mountable
• Cable: Coaxial
• Cable type: ULA 100
• Cable color: black
• Cable Attenuation:
1.4 dB @ 2.500 GHz per meter
2.3 dB @ 5.875 GHz per meter
• Cable diameter: 2.79 mm
• Cable length: ca. 1 m

Package content:
• WLAN antenna

Data sheet:
http://www.delock.de/produkt/88901/pdf.html?sprache=en
