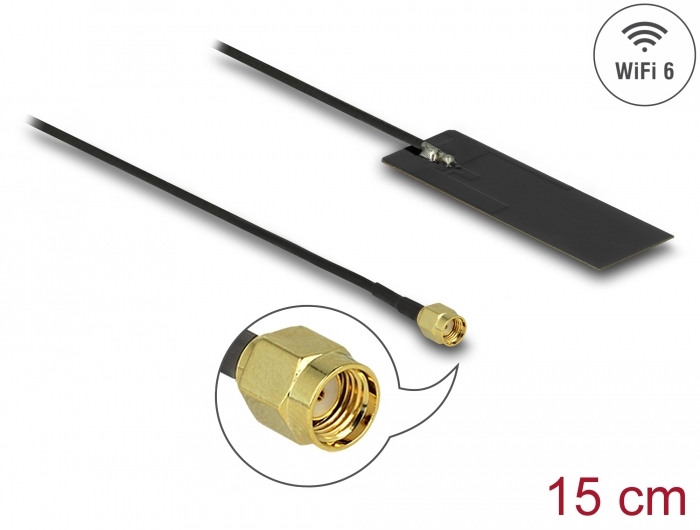

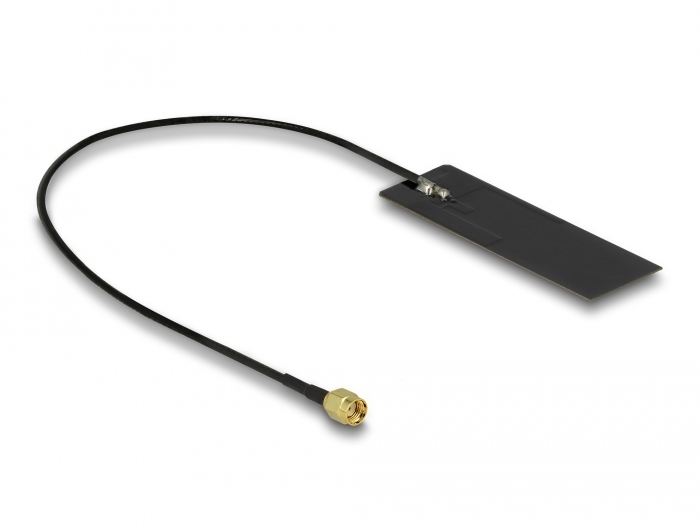

Delock WLAN WiFi 6 802.11 ac/ax/a/h/b/g/n Antenna RP-SMA plug 2 - 4 dBi 15 cm PCB internal self-adhesive

DELOCK

12649

New

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.
System requirements:
• Device with a free RP-SMA jack
Specification:
• Connector: 1 x RP-SMA plug
• Frequency range:
  2400 MHz - 2500 MHz
  5150 MHz - 5875 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 2 - 4 dBi
• VSWR: 2.5
• Impedance: 50 Ohm
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FR4
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxW): ca. 44.5 x 14.0 mm
• Cable length incl. connector: ca. 15 cm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12649/pdf.html?sprache=en
