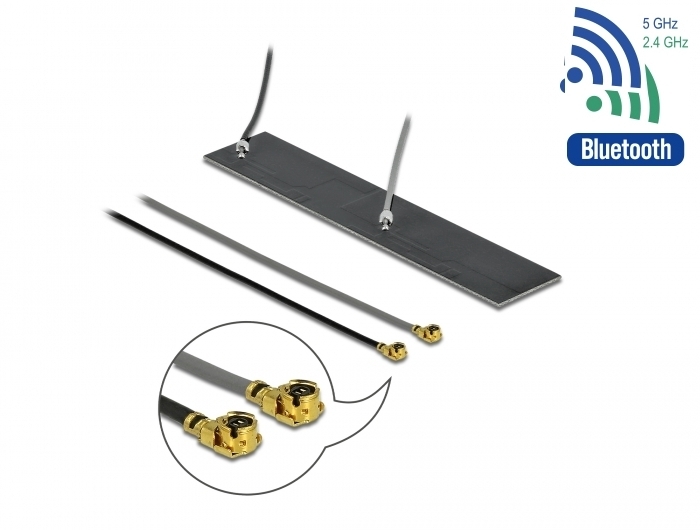

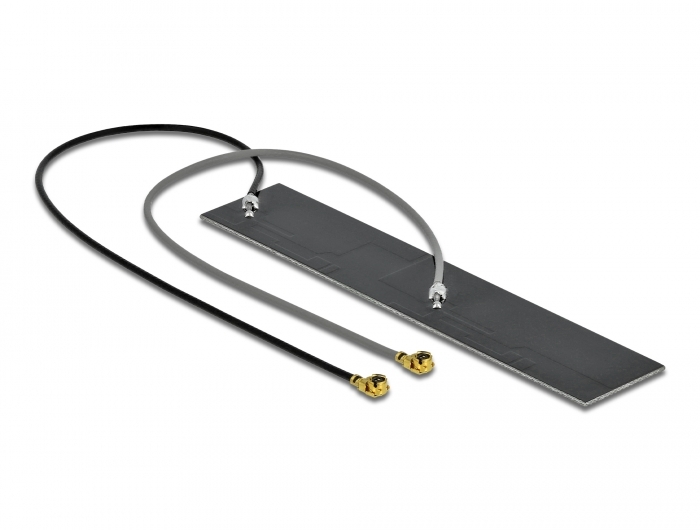

Delock WLAN 802.11 ac/ax/a/h/b/g/n Twin Antenna 2 x MHF® I plug 2.2 – 4.0 dBi 2 x 15 cm PCB internal self adhesive

Reference 12627

Condition: New

More info

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

System requirements:
• Device with two free MHF® I connectors

Specification:
• Connector: 2 x MHF® I plug
• Frequency range:
P1:
2400 - 2500 MHz
5150 - 5850 MHz
P2:
2400 - 2500 MHz
5150 - 5850 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 2.2 – 4.0 dBi
• VSWR: 2.0 - 4.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: PCB
• Colour: black and grey
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 780 x 150 x 1 mm
• Length incl. connectors (L): 2 x ca. 15 cm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/12627/pdf.html?sprache=en
