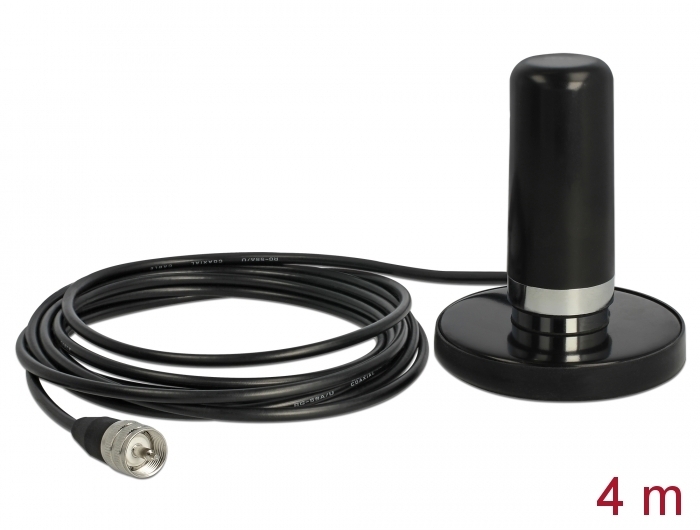

Delock LTE Antenna UHF plug 3 dBi fixed omnidirectional with magnetic base and connection cable RG-58 A/U 4.0 m outdoor black

Delock LTE Antenna UHF plug 3 dBi fixed omnidirectional with magnetic base and connection cable RG-58 A/U 4.0 m outdoor black

DELOCK

12570

New

Add to Compare
This antenna by Delock allows the usage of different LTE bands indoors and outdoors.
System requirements:
• Device with one free UHF port
Specification:
• Connector: 1 x UHF plug
• Frequency range: 698 - 2700 MHz
• ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Operating temperature: -50 °C ~ 80 °C
• Housing material: ABS
• Colour: black
• Cable: coaxial
• Cable type: RG-58 A/U
• Cable diameter: ca. 4.95 mm
• Cable attenuation:
  0.53 dB @ 1.0 GHz per meter
  0.98 dB @ 2.4 GHz per meter
• Cable length incl. connector: ca. 4,0 m
• Dimensions (LxD): ca. 90.0 x 39.5 mm
• Weight: ca. 1 kg
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12570/pdf.html?sprache=en
