Delock LPWAN 868 MHz Antenna TNC jack 3 dBi omnidirectional fixed with connection cable RG-58 C/U 3 m wall mounting outdoor silv

Delock LPWAN 868 MHz Antenna TNC jack 3 dBi omnidirectional fixed with connection cable RG-58 C/U 3 m wall mounting outdoor silv

DELOCK

12564

New

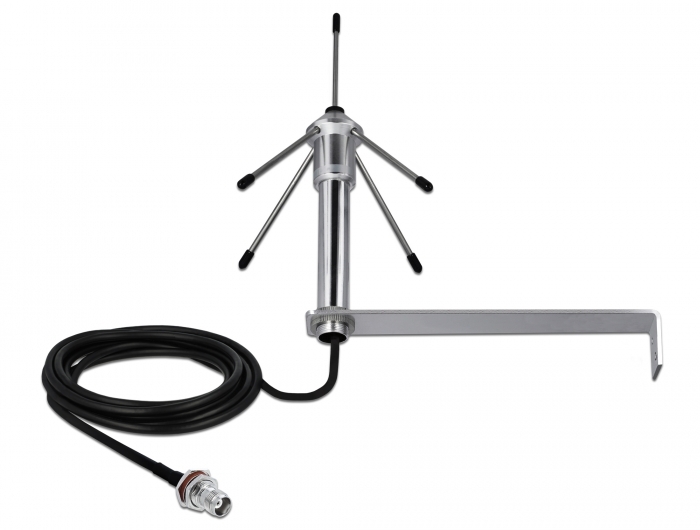

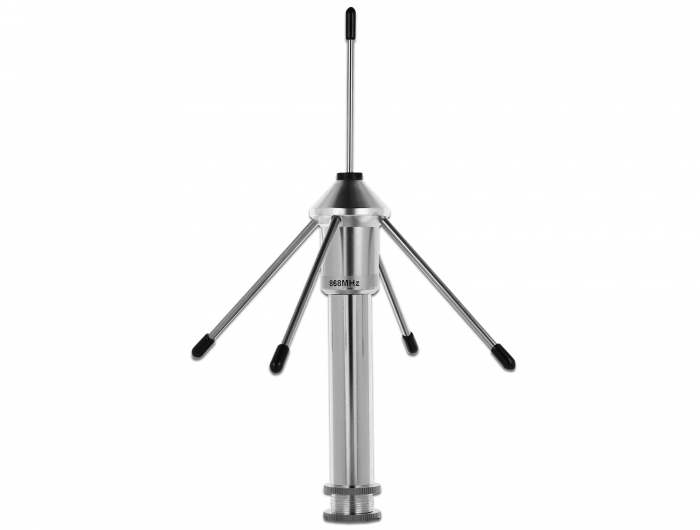

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.
System requirements:
• Device with one free TNC port
Specification:
• Connector: 1 x TNC jack
• Frequency range: 868 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• Operating temperature: -50 °C ~ 70 °C
• Housing material: steel
• Colour: silver
• Cable: coaxial
• Cable type: RG-58 C/U
• Cable attenuation: 0.73 dB @ 1.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Smallest bending radius: 20 mm
• Cable length incl. connectors: ca. 3.0 m
• Dimensions (LxD): ca. 230.0 x 19.1 mm

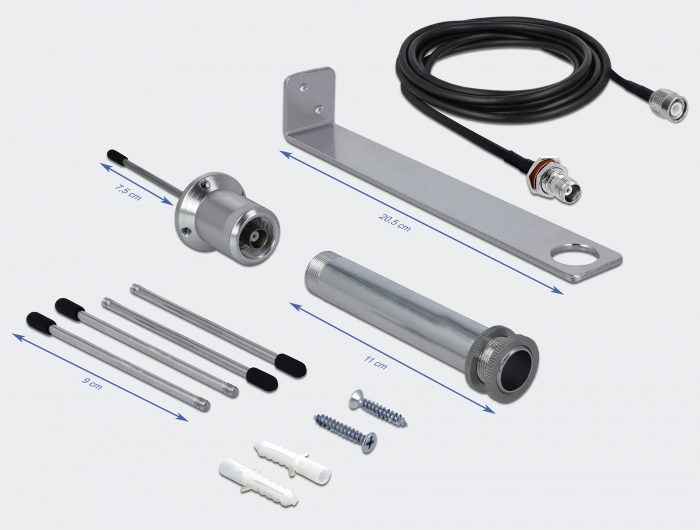

Package content:
• Antenna
• Wall mounting brackets
Data sheet:
http://www.delock.de/produkt/12564/pdf.html?sprache=en
