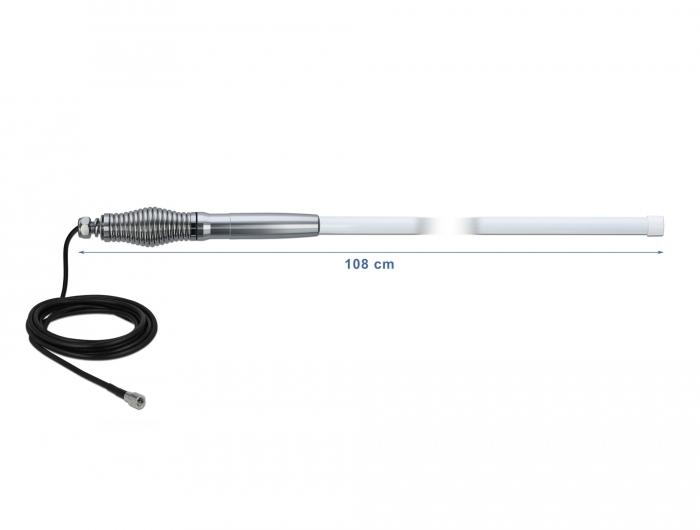

Delock 477 MHz Antenna FME plug 4.5 dBi 108 cm omnidirectional fixed with connection cable RG-58 C/U 4.5 m outdoor white

Reference 12575

Condition: New

More info

This antenna by Delock allows the usage of the 477 MHz band indoors and outdoors.

System requirements:
• Device with one free UHF port

Specification:
• Connector: 1 x FME plug
• Frequency range: 474 - 480 MHz
• Antenna gain: 4.5 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• HBW horizontal beamwidth: 180°
• VBW vertical beamwidth: 36°
• Operating temperature: -50 °C ~ 70 °C
• Housing material: GFRP
• Colour: white
• Cable: coaxial
• Cable type: RG-58 C/U
• Cable attenuation: 0.73 dB @ 1.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Smallest bending radius: 20,00 mm
• Cable length incl. connector: ca. 4.50 m
• Weight: ca. 0.78 kg
• Dimensions (LxD): ca. 1.080 m x 0.045 m
• Maximum wind speed: 200 km/h

Package content:
• Antenna
• Mounting material: nut, washer, snap ring, mounting bracket and pole mounting bracket
