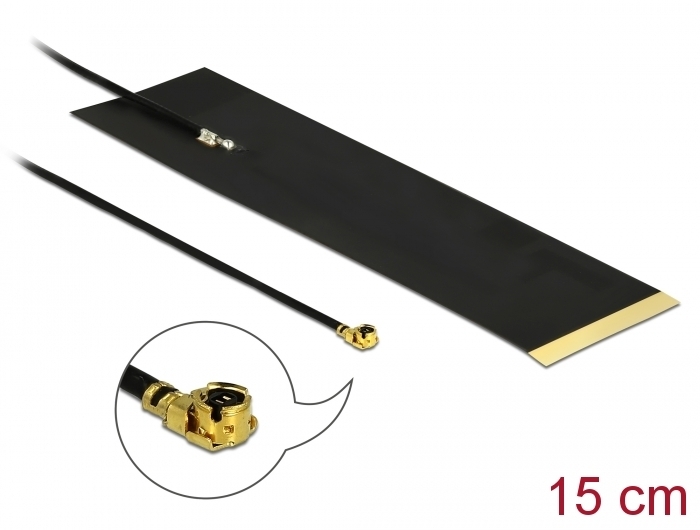

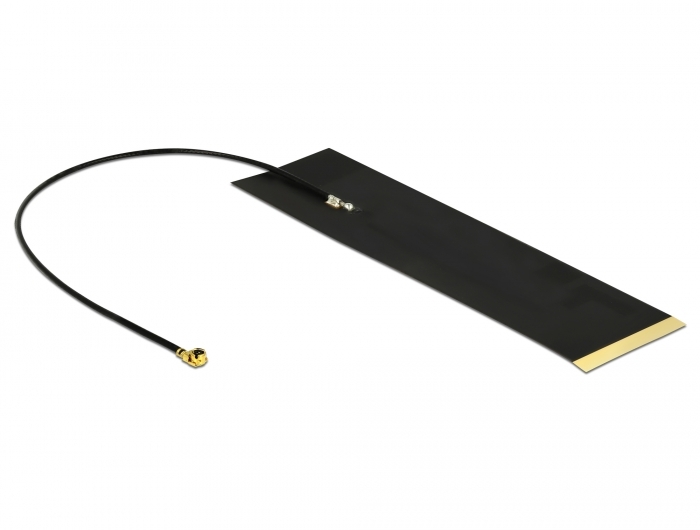

Delock LTE Antenna MHF® I plug 1.9 - 3.9 dBi 1.13 15 cm FPC internal self adhesive

Reference 12612

Condition: New

More info

This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with one free MHF® I port

Specification:
• Connector: 1 x MHF® I plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2,4 GHz, Bluetooth, ISM, DECT,
LoRa
• Frequency range:
  698 MHz - 791 MHz
  824 MHz - 960 MHz
  1710 MHz - 2170 MHz
  2300 MHz - 2700 MHz
• Antenna gain: 1.9 - 3.9 dBi
• VSWR: 2.0 - 4.5
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxW): ca. 90.0 x 25.0 mm
• Cable length incl. connector: ca. 15 cm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/12612/pdf.html?sprache=en
