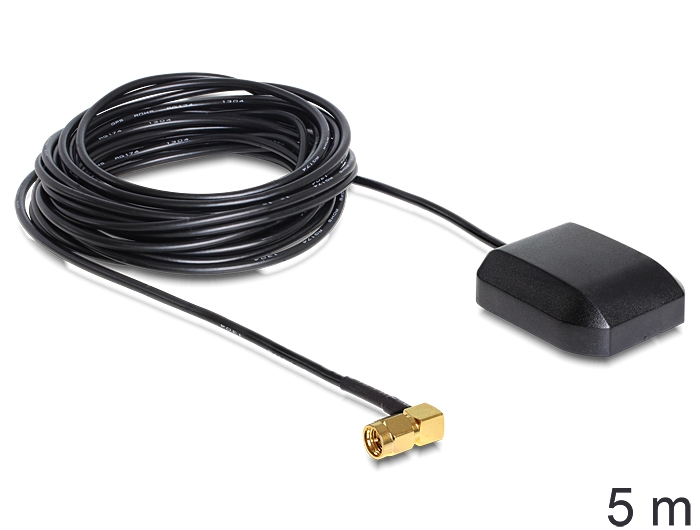

Navilock NL-280GG SMA 90° GLONASS+GPS Multi GNSS antenna 5 m

Reference 60543

Condition: New

More info

Use this antenna to your GNSS equipment to receive GPS and GLONASS signals simultaneously.

Specification:
• External active additional antenna for GPS/GLOANSS receiver

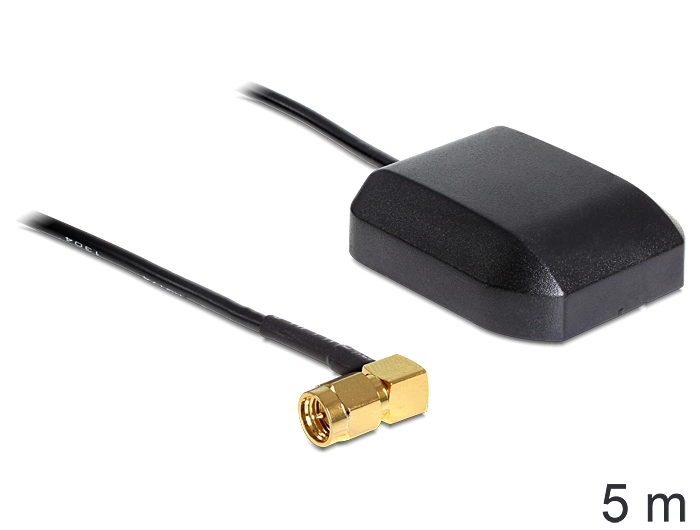

• Connector: SMA plug 90°
• Frequency range:
    GPS: 1575.42 MHz +/- 3.00 MHz
    GLONASS: 1602 MHz +/- 8 MHz
• Bandwidth:
    GPS > 8 MHz
    Glonass > 16MHz
• internal patchantenna: 25 x 25 x 4 mm
• VSWR: 1.5 typ.
• Gain: 5 dBic (7 cm x 7 cm ground plane)
• Polarisation: RHCP
LNA
• Gain: 30 dB
• Voltage: 2.8 ~ 5.0 V
• VSWR: 1.5 typ.
• Noise figure: 1.5 @ 25°C +/- 10 °C
• SMA plug: brass gold plated
• SMA contact: gold plated
• Cable type: RG-174
• Impedance: 50 Ohm,
• Cable length: 5 m
• Cable attenuation: 5.70 dB
• Cable colour: black
• Dimension: 50.6 x 50.6 x 15.1 mm
• Current: typ. 13.50 mA @ 3.0 V
• Protection class: IP66
• Weight: 0.150 kg

• Dimension (LxWxH): ca. 44.00 x 37.00 x 14.50 mm

• Magnetical und rubberized bottom

Package content:
• GNSS antenna

Data sheet:
http://www.navilock.de/produkt/60543/pdf.html?sprache=en
