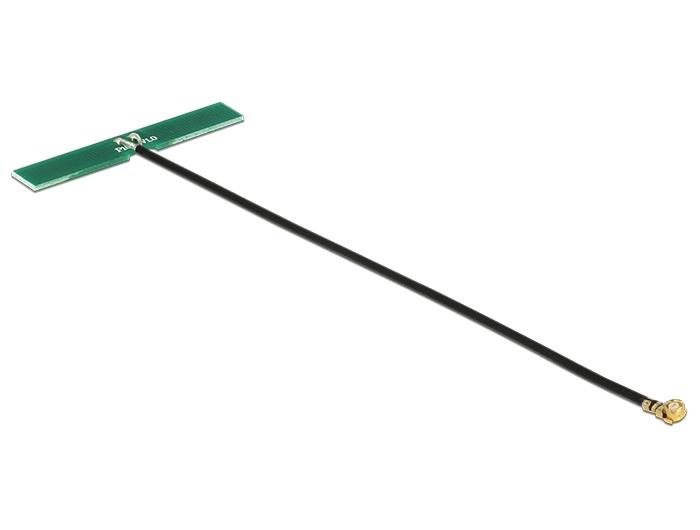

Delock GSM UMTS LTE Antenna MHF Plug 2 dBi 10 cm omnidirectional PCB internal adhesive mounting

Reference 89496

Condition: New

More info

This GSM, UMTS, LTE antenna by Delock allows the use of different frequency bands in devices. It is completely ZigBee 868/ 915 MHz, DECT and Z-Wave compatible.

System requirements:
• Device with free MHF connector

Specification:
• Connector: MHF plug
• LTE Band 1/5/6/8/19/34/36
• Frequency range: 824 - 960, 1920 - 2170 Mhz
• GSM, UMTS, ZigBee 868/ 915 MHz, DECT, Z-Wave
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 3.0.
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Dimensions (LxWxH): ca. 40.0 x 6.7 x 1.2 mm
• Cable category: coaxial
• Cable type: 1.37 mm
• Cable colour: black
• Cable attenuation: 2,5 dB @ 2,4 GHz per meter
• Cable diameter: ca. 1.37 mm
• Cable length incl. connector: ca. 10 cm

Package content:
• GSM UMTS LTE antenna

Data sheet:
http://www.delock.de/produkt/89496/pdf.html?sprache=en
