Delock WLAN Twin Antenna 2 x MHF IV / HSC MXHP32 compatible plug 802.11 ac/a/h/b/g/n 5 dBi 250 mm PCB internal adhesive mounting

Delock WLAN Twin Antenna 2 x MHF IV / HSC MXHP32 compatible plug 802.11 ac/a/h/b/g/n 5 dBi 250 mm PCB internal adhesive mounting

DELOCK

89571

New

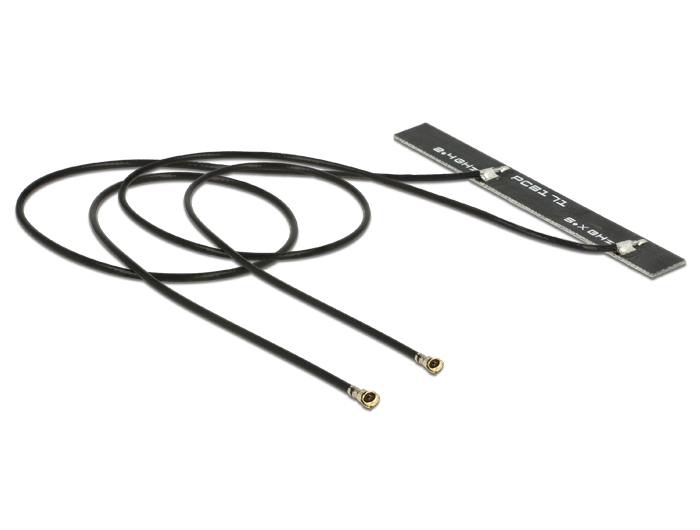

This WLAN twin antenna is designed to integrate into devices with MHF IV connectors. These are two separate antennas with common ground.
System requirements:
• Device with two free MHF IV connectors
Specification:
• Connectors: 2 x miniature RF coaxial plug MHF IV (IPEX), MXHP32 (HSC) compatible
• Frequency range:
  2400 - 2500 MHz
  5150 - 5875 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Cable type: coaxial
• Cable attenuation:
  3.20 dB @ 2.4 GHz per meter
  5.05 dB @ 5.0 GHz per meter
• Cable diameter: ca. 1.13 mm
• Cable length incl. connectors: ca. 250 mm
• Operating temperature: -10 °C ~ 50 °C
• Dimensions (LxWxH): ca. 61.6 x 7.0 x 1.6 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/89571/pdf.html?sprache=en
