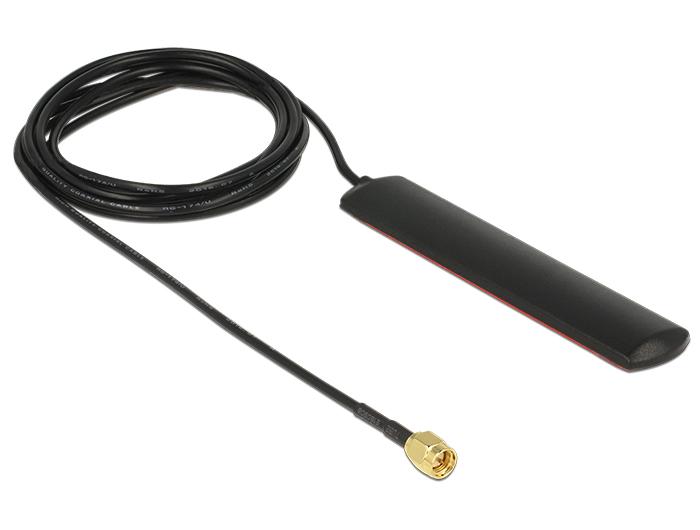

GSM UMTS LTE WLAN 2.4 GHz Antenna SMA Plug 2 dBi omnidirectional adhesive mounting

DELOCK

89491

New

This GSM UMTS LTE WLAN 2.4 GHz antenna by Delock can be installed indoors and takes advantage of different bands. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

More details

Description:
This GSM UMTS LTE WLAN 2.4 GHz antenna by Delock can be installed indoors and takes advantage of different bands. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

Specification:
• Connector: SMA plug
• LTE Band: 1-6/8-10/19/25/33-37/39
• Frequency range: 824 - 960, 1920 - 2170, 2400 - 2500 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Dimensions (LxWxH): ca. 72.0 x 25.2 x 4.8 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,8 dB @ 1.8 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 2 m

System requirements:
• Device with free SMA connector

Package content:
• GSM UMTS LTE WLAN 2.4 GHz antenna
