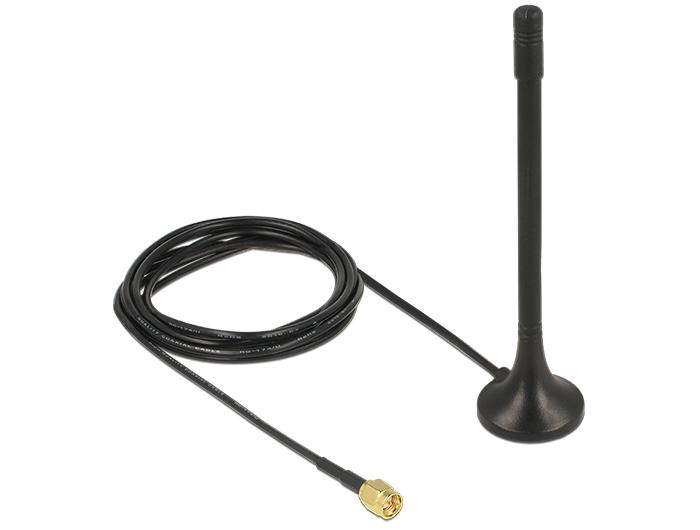

> >>Antenna ISM 433 MHz SMA 2 dBi 2 m RG-174 omnidirectional fixed magnetic base black
Antenna ISM 433 MHz SMA 2 dBi 2 m RG-174 omnidirectional fixed magnetic base black

Antenna ISM 433 MHz SMA 2 dBi 2 m RG-174 omnidirectional fixed magnetic base black

DELOCK

89490

New

This antenna by Delock allows the use of ISM 433 MHz band indoors.

More details

Description:
This antenna by Delock allows the use of ISM 433 MHz band indoors.

Specification:
• Connector: SMA plug
• Frequency range: 433 MHz +/- 10 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Thread: M5 (7.4 mm)
• Colour: black
• Antenna length incl. base: 121 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 2 m
• Diameter magnetical base: 29.4 mm

System requirements:
• Device with a free SMA jack

Package content:
• ISM 433 MHz antenna
